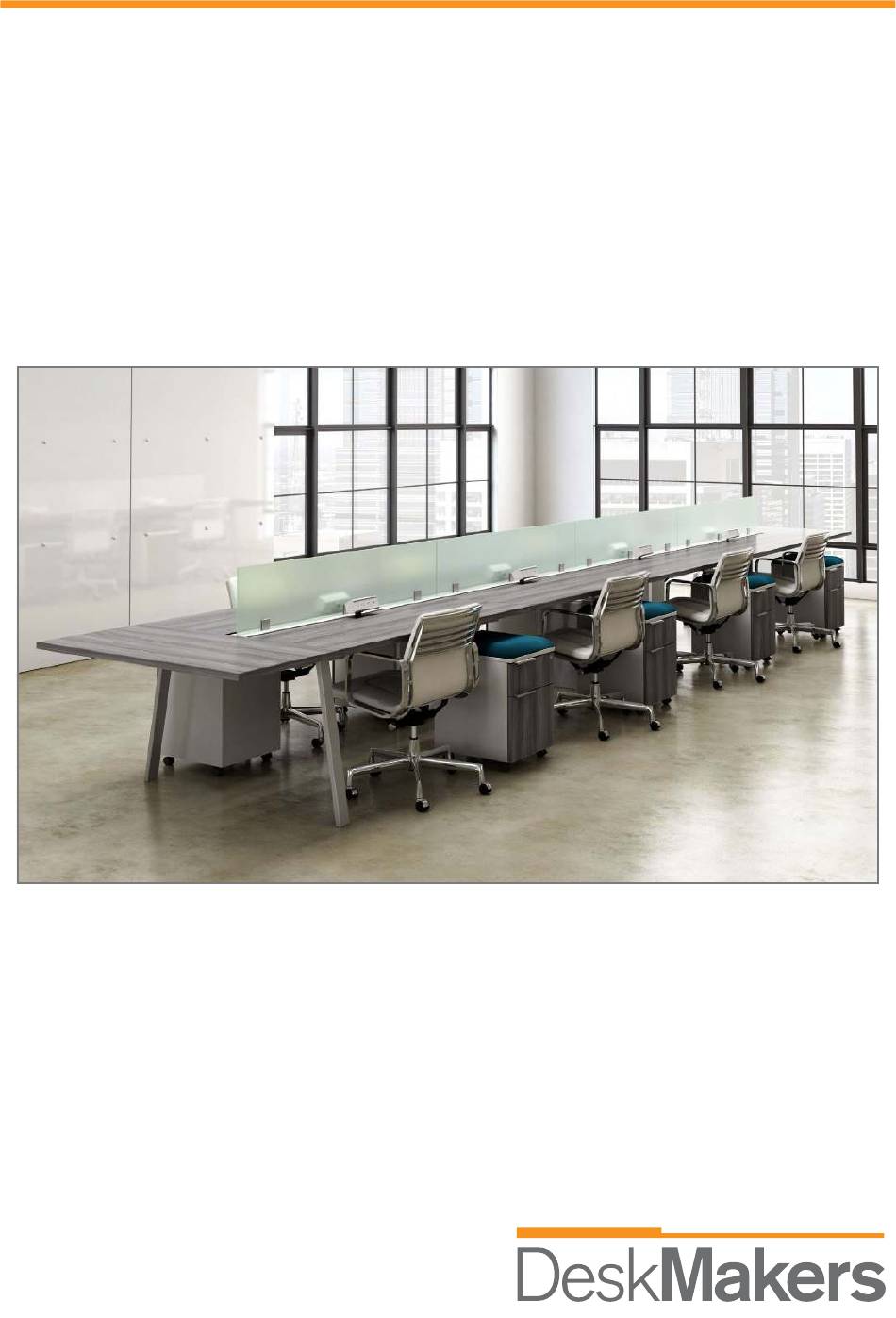

- Page 1 Synapse Installation Instructions Version 3-31-2016...
- Page 2 Installation Instructions Synapse FRAME ASSEMBLY 1. Begin to assemble the frame of the bench in its permanent location. Once the bench is fully assembled, it will be difficult to move. 2. Start with one end-of-run leg. Secure end-of-run leg to middle-of-run leg with spanning rods using the provided #10, 5/16 hex head metal screws.
- Page 3 Installation Instructions Synapse CENTER BEAM ASSEMBLY 1. Start on one end of frame, position a center beam to span between the end-of-run leg and the middle-of-run leg. The center of the center beam should align with the center of the support legs.
- Page 4 Installation Instructions Synapse WORKSURFACE ASSEMBLY 1. Start on one end of frame and working towards the opposite end, position a worksurface to span between the end-of-run leg and the middle-of-run leg. 2. Using the spacer blocks provided, leave a 1-3/16” gap between the edge of the center beam and the inside edge of the worksurface.
- Page 5 Installation Instructions Synapse WORKSURFACE CONNECTING FLAT BRACKET ASSEMBLY 1. Position the worksurface connecting flat bracket 3” from the worksurface edge and centered between two worksurfaces. 2. Screw the flat bracket to the underside of one worksurface, align the worksurfaces and screw the flat bracket to the second worksurface using the 8 provided screws for each bracket.
- Page 6 Installation Instructions Synapse LATERAL WORKSURFACE CONNECTING BRACKET ASSEMBLY 1. Position the lateral worksurface connecting bracket centered on one worksurface between the spanning rods. If worksurfaces are over 72” long, two lateral brackets are required and should be placed in thirds. (See diagrams below.) 2.
- Page 7 Installation Instructions Synapse S1 SYSTEM DOUBLE SIDED POWER BLOCK BRACKET ASSEMBLY Note: We recommend installing electrical, data and voice components prior to installing wire manangement baskets. 1. Position the S1 system double sided power block bracket centered on the underside of the center beam. Refer to plan drawing to determine components needed and locations for components.
- Page 8 Installation Instructions Synapse S1 SYSTEM INTERCONNECING CABLE ASSEMBLY 1. Plug in one interconnecting cable between two power blocks. 2. Interconnecting cable end must be pushed in until it snaps into place. 3. Power infeed starter cable must be installed by a licensed electrician.
- Page 9 Installation Instructions Synapse WIRE MANAGEMENT BASKET BRACKET ASSEMBLY 1. Depending on wire basket length, there may be 4-6 brackets per basket. Each wire basket should be evenly supported with brackets. If the basket is on the end of a bench, the brackets should be shifted so the basket can be mounted towards the center of the bench.
- Page 10 Installation Instructions Synapse WIRE MANAGEMENT BASKET ASSEMBLY 1. Wire baskets should hang suspended from the hooks of the brackets. 2. Wire basket placement may need to be adjusted for alignment and spacing.
- Page 11 Installation Instructions Synapse 3/8” & 3/4” THICK PRIVACY PANEL ASSEMBLY 1. Check the drawings for privacy panel placement. Verify cutout location on panels for clip placement. For panels with (2) clips, typically each clip is located 6” on center from each end. For panels with (3) clips, typically one clip is located 6” on center from each end and one in the center.
- Page 12 Installation Instructions Synapse 3/8” & 3/4” THICK PRIVACY PANEL ASSEMBLY CONTINUED 1. Position the panel so the cutout notches align with the clips and the clips fit snuggly in the cutout nothces. 2. Assemble second side of steel clip. 3. Secure both sides of steel clip together with screw provided. Tighten set screw...
