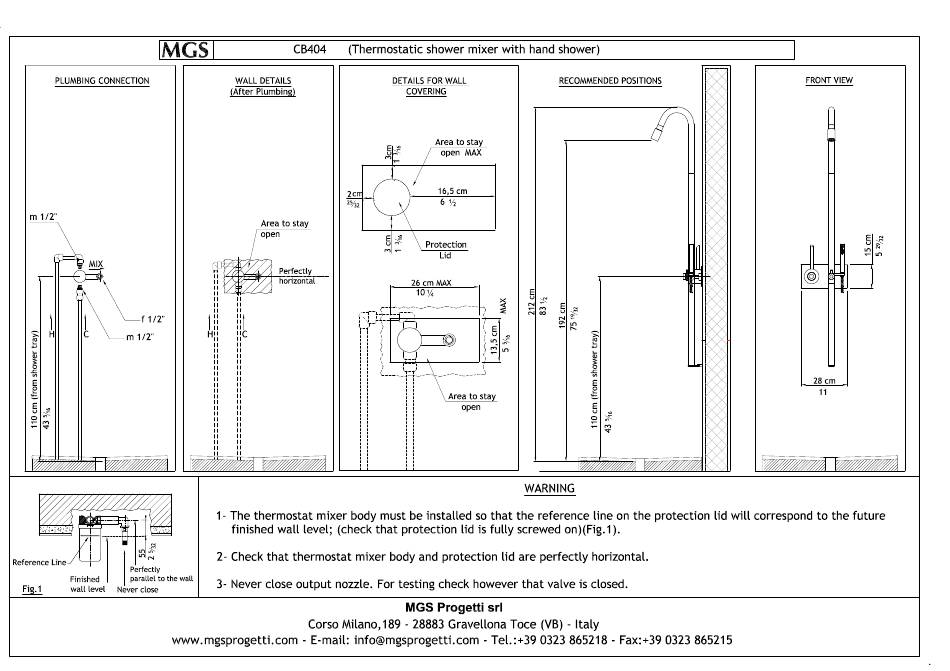

- Page 7 ASSEMBLY INSTRUCTIONS THERMOSTATIC SHOWER CB404 FIRST STEP Remove various parts from the carton with extreme care. Handle Body (E) – Knob (G) – Cover (H) – CAM (F) – Ring (B) Check on the wall that the built-in thermostatic valve is clean and that installation has been made correctly according to our separate pre-assembly instructions.
- Page 8 ASSEMBLY INSTRUCTIONS THERMOSTATIC SHOWER CB404 ASSEMBLY OF HAND SHOWER DIVERTER BLOCK (FIG 6) Fully push diverter block (I) into connection (C’) taking care of not damaging O-Ring gaskets. Tighten the assembly with ring (I’). Place console (Z)(FIG6/a) on shower diverter (I) with reference mark (Z’) on the bottom side.
