Weber 92-2001 Assembly & Set-Up Instructions

STEP 2. Unbuckle & Loosen leather strap, to release
legs of easel. See Fig 2 below.
STEP 3.
After unbuckling strap, spread-out legs of
easel and stand on their feet. See Fig 3 below.
Martin/F. Weber Co.
4444 Lawton Avenue, Detroit, MI 48208 USA
Tel:(313)895-0700 • Fax:(313)895-0709
E-mail:Custservmud@aol.com
www.MartinUniversalDesign.com • www.weberart.com

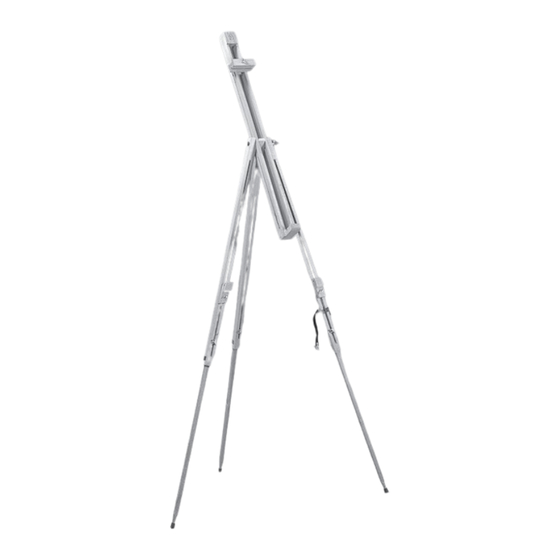

92-2001 • WATERCOLOR FIELD EASEL
ASSEMBLY/SET-UP INSTRUCTIONS
STEP 1. Begin by removing easel from carton.
See Fig 1 below.
FIG. 1
FIG. 2
FIG. 3
STEP 4. Loosen wing-nut on each leg to allow for
height adjustment of legs. Tighten at desired height.
See Fig 4 below.
STEP 5. Once all legs are extended and secure,
lower portion of easel should look similar to FIG. 5
FIG. 4
FIG. 5
FIG. 5
