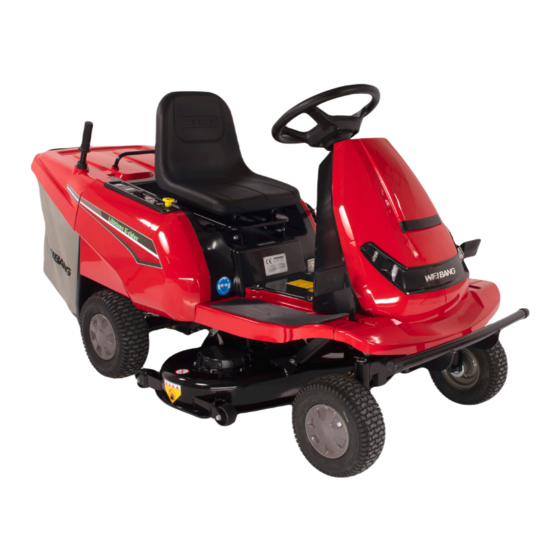

WEIBANG iON 81 RC E-RIDER Owner's Manual

Rechargeable ride on lawnmower
Hide thumbs
Table of Contents

Advertisement

Quick Links

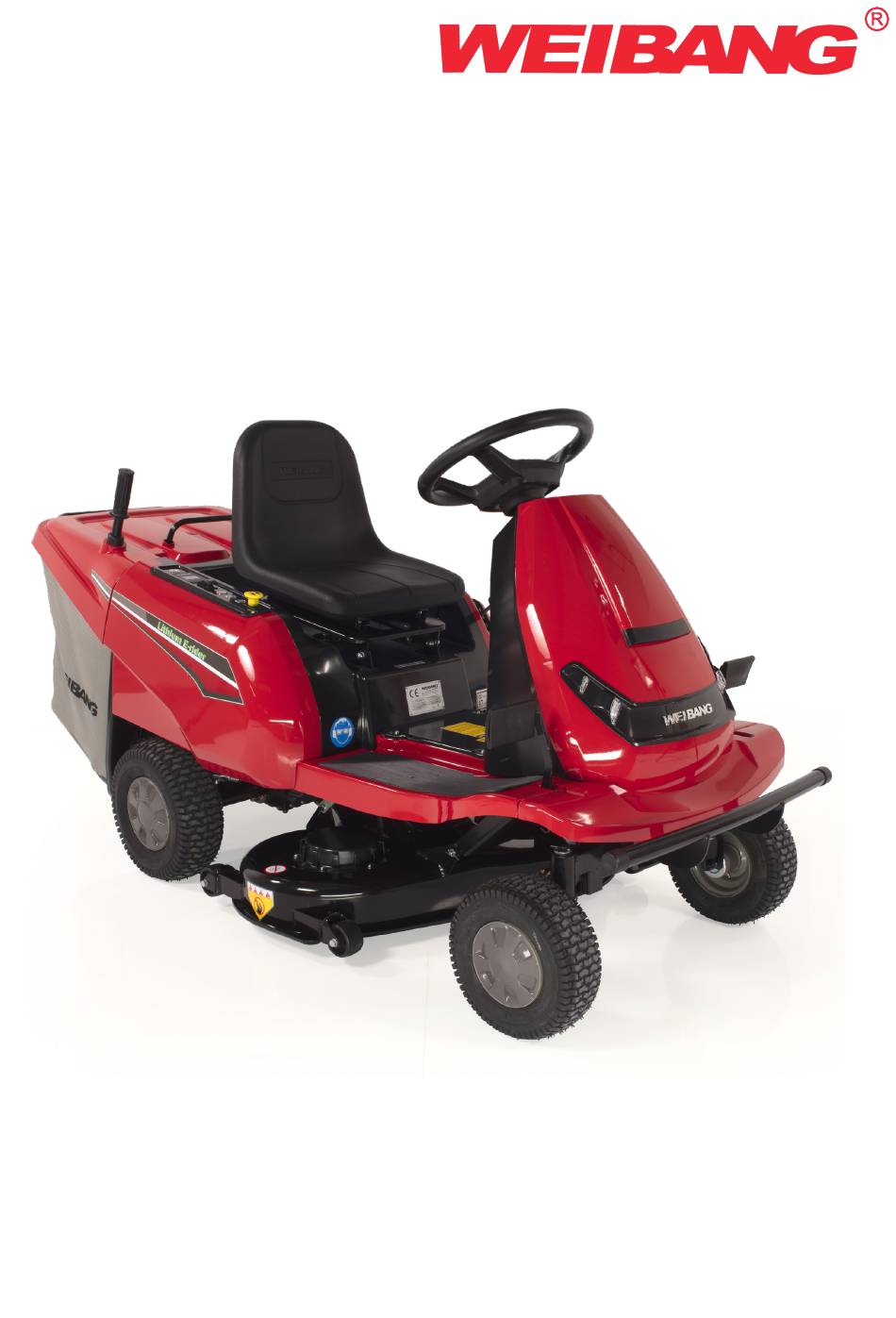

iON 81 RC E-RIDER
Rechargeable Ride on Lawnmower
WB81EC-B
Owner's manual
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iON 81 RC E-RIDER and is the answer not in the manual?

Questions and answers

Randolph Thompson
May 23, 2025

Where to buy an on off switch for my Weibang w76 e rider womer?

0
1 comments:
Mr. Anderson
May 25, 2025

The on/off switch for the Weibang 81 RC E-RIDER is part of the key switch system. You must turn the ignition key to the "ON" position to start the motor.

This answer is automatically generated

0

Related Manuals for WEIBANG iON 81 RC E-RIDER

Summary of Contents for WEIBANG iON 81 RC E-RIDER

  • Page 1 81 RC E-RIDER Rechargeable Ride on Lawnmower WB81EC-B Owner’s manual Original Instructions...

  • Page 2: Table Of Contents

    Using Parking Brake not found in this Owner’s Manual, please contact your Using Key Switch local Weibang Dealer. If you need help locating a dealer, Using CCS please contact Weibang Customer Service, or visit www. Mowing in reverse weibang.co.uk.

  • Page 3: Section 1: Safety

    Non-compli ance could result in death or serious injury. Always use original spare parts with the logo “WEIBANG” to ensure maximum performance, reliability and service life from your Weibang machine.
  • Page 4 General battery mower safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this battery mower. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
  • Page 5 Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and remove the key from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 6 WG/WB81EC-B/FEB20/V1.1...

  • Page 7: General Operation

    Vibration is generally a warning of trouble. • Keep hands and feet away from the mower deck. • Worn parts should be referred to a Weibang dealer to be replaced. If necessary, contact the specified service address. • Before using the machine, inspect the machine visually to determine whether the cutting blades, fastening bolts and the entire mower deck are worn or damaged.

  • Page 8: Slope Operation

    WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this machine.

  • Page 9: General Instructions For Working

    IV. GENERAL INSTRUCTIONS FOR WORKING WITH YOUR LAWNMOWER • Do not switch on the motor when standing in front of the discharge chute. • Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. •...

  • Page 10: Customer Responsibilities

    V. CUSTOMER RESPONSIBILITIES • Read and observe the safety regulations contained in this Owner’s Manual. This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully. • Follow a regular schedule for maintaining, caring for and using your lawnmower. •...
  • Page 11 Cutting position and heights (1/2/3/4/5/6/7/8/9/10) 1 (1in/25mm). 2 (1.23in/31mm). 3 (1.55in/39mm). 4 (1.94in/49mm). 5 (2.38 in/61mm). 6 (2.87in/73mm). 7 (3.40in/86mm). 8 (3.93in/100mm). 9 (4.47in/113mm). 10 (5.0in/130mm). Grass catcher volume 150 L WHEELS Front / Rear 11” x 4.00-5NHS / 13” x 5.00-6NHS Tyre Pressure (Front / Rear) 15psi / 20psi Safety Certification...

  • Page 12: Section 2: Features And

    -Owner’s Manual -Guarantee card(s) When parts are missing or damaged, please contact your dealer or Weibang Customer Service. Not all of the accessories illustrated or described are included as standard delivery. Cutting height adjustment bar- used to adjust cutting height.

  • Page 13: Recharging New Machine

    Charge the 72V lithium polymer battery for 12-15 hours to ensure a full charge. Carefully read the relevant sections in the Owner’s Manual or ask your local Weibang dealer for details. Charging should be carried Fig 3 out in the ideal surrounding temperature of 32 to 104°F (0 to 40°C).

  • Page 14: Central Information Screen

    • To unlock the parking brake, press down the left pedal with your foot to release the parking brake and the brake pedal. Result: The parking brake prevents the machine from moving. If the machine moves, the parking brake needs to be adjusted. Contact your local Weibang dealer for details. Using the Key Switch • Sit on the seat.

  • Page 15: Using Ccs

    Using CCS (Cruise Control System) • Press the CCS button to shift to cruise mode. • Press down the right pedal to accelerate the unit and hold the speed for about 3 seconds to activate the CCS, and then you can move your foot away from the pedal. Now the unit will keep to this cruising speed.

  • Page 16: Adjusting Cutting Height

    Disconnecting the Charger (Fig 10.4) Remember to disconnect the Charger from the machine using this sequence: 1. Pull the plug of the Charger out of the wall outlet. 2. Slide back the button C and turn the plug anti-clockwise and then pull the plug from the socket to disconnect the Charger from the machine.

  • Page 17: Adjusting Seat

    Adjusting the seat • To ensure comfort, you can use the seat lever to adjust the position of the seat. • Push the lever C to the left, so the seat can be moved to the desired positon. • Release the lever C to re-lock the seat. OPERATING THE RIDE ON MOWER Operating REVIEW THIS CAREFULLY TO ENSURE SAFE AND LONG LASTING OPERATION...

  • Page 18: Mowing Tips

    14. Before beginning to move, ALWAYS be aware of your surroundings. Always take precautions to ensure that the area you are mowing is clear of debris, obstructions, obstacles or any power wires. 15. If this is the FIRST TIME you are riding the unit we suggest you drive the unit around the area for a few minutes to allow you to become accustomed to the movement and speed of the unit.

  • Page 19: Discharging Grass Clippings

    • Pores in cloth grass catchers can become filled with dirt and dust with use reducing efficiency. To prevent this, regularly hose the catcher off with water and let it dry before using. IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER HOUSING FREE OF BUILT-UP GRASS AND TRASH.

  • Page 20: Section 6: Maintenance And Servicing

    Also, the mulched grass will biodegrade quickly to provide nutrients for the lawn. • Avoid cutting your lawn when it is wet. Wet grass tends to form clumps and interferes with the mulching action. The best time to mow your lawn is the early afternoon. At this time the grass has dried and the newly cut area will not be exposed to the direct sun.

  • Page 21: Cleaning

    Cleaning 1. Clean the underside of your riding-mower by scraping away any build-up of grass and debris. 2. Clean the motor often to keep debris from accumulating. A clogged motor runs hotter and shortens the motor life. 3. Keep finished surfaces and wheels free of grass and trash, etc. 4.

  • Page 22: Battery Care

    TO SHARPEN A BLADE NOTE: We do not recommend sharpening of blades by users for safety reasons, please contact your local Weibang dealer for replacement blades. TO INSTALL BLADES Reinstall mower blades to motor spindles in Figure 16 with flat side down.

  • Page 23: Section 7: Storage

    • The optimal temperatures for storing MUST be between -10 to 50°C - 14 to 122°F. Battery replacement When the battery pack is at the end of its life, please contact your local Weibang dealer to replace the battery pack.

  • Page 24: Section 8: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE TREATMENT No power Seat OPC switch “off ’’ or damaged Sit down on seat or check and change switch. Drive mode switch or key switch damaged Check and change. Drive controller damaged Check and change. Poor contact of wire bundle plugs Check and change.

  • Page 25: Section 9: Warranty

    Warranty Terms and Conditions This Warranty contains obligations and exclusions solely on the part of Weibang UK and not on the part of any authorised Weibang Dealer. Nothing in this document should be construed as an agency between Weibang UK and any of its authorised Dealers or their staff.
  • Page 26 • Pivoting and bearing points: Lubricate all movable pivoting and bearing points. Servicing We recommend that the electric ride-on lawnmower is serviced annually by your local Weibang service dealer to keep the mower from operating at its maximum performance and to maintain the 5 year warranty.
  • Page 27 SEAT ASSEMBLY Part number Description Part number Description WG76EB01010 Seat WG0102008045 Bolt - M8x45 WG0201008000 Nut - M8 WG76EB07010/02 Bush WG0401008000 Spring Washer - M8 WG76EB06020 Cushion WG0301008000 Washer - M8 WG81QZY001 Switch WG76EN03030/22 Connecting Plate WG76EB08010/02 WG0103008020 Screw - M8x20 WG76EB09010B1/04 Pressing Spring WG0103008016...
  • Page 28 GRASS COLLECTOR Part number Description WG81EB01010 Grass Catcher Cover WG81EB02010/22 Grass Catcher Frame WG0202006000 Nut - M6 WG0301006000 Washer - M6 WG0107006020 Bolt - M6x20 WG81EB02020/22 Lifting Handle WG81EB02030 Grass Bag Fabric WGDSZ0000480 Grip WG81EB02040 Lever Block WG0701006035 Pin - 6x35 WG81EB02050/22 Discharging Handle WG0202005000...
  • Page 29 BODY PANELS Part number Description Part number Description WG0104005020 Screw - M5x20 WG81EC01000 Left Light Plate A WG0113022005 Screw - K22x5 WG81EC18000 Footplate RH WG81EC02000 Left Light Cover A WG0106004015 Screw - ST4.2x15 WG81EC03000 Left Light Plate B WG81EC19000 Footplate LH WG81EC04000 Left Light Cover B WG0113050016...
  • Page 30 BOX FILL INDICATOR Part number Description WG0202005000 Nut - M5 WG81ED01000/02 Shoulder Bolt WG0301005000 Washer WG81ED02000/02 Bracket WG0202003000 Nut - M3 WG0104003020 Screw - M3x20 WG0301003000 Washer - M3 WG81QJC001 Microswitch WG81ED03000 Spacer WG81ED04000/02 Cover WG0106004015 Screw - ST4.2x16 WG81ED05000 Connector WG81ED06000 WG0401004000...
  • Page 31 REAR PANEL & OPTIONAL DEFLECTOR Part number Description WG81EE01000 Grass Chute Assembly (accessory) WG0301008000 Washer - M8 WG0102008025 Bolt - M8x25 WG81EE02000/22 Rear Panel WG0202008000 Nut - M8 WG0104004020 Screw - M4x20 WG81EE03000B1 Control Unit WG76ED05010 Spacer WG0202004000 Nut - M4 WG81EE04000/22 Bracket LH WG81EE05000/22...
  • Page 32 BATTERY Part number Description WG81EF01000/22 Battery Cover WG76ED20000 Lithuim Battery WG76ED16000 Seal A WG76ED15000 Seal B WG76ED01150B1 Sponge WG76ED17000 Hasp WG1202004008 Rivet WG81EF02000/22 Battery Box WG0101008020 Bolt - M8x20 WG0401008000 Spring washer - M8 WG0301008000 Washer - M8 WG81EF03000 Sponge WG/WB81EC-B/FEB20/V1.1...
  • Page 33 BRAKE COMPONENTS Part number Description WG0202008000 Nut - M8 WG0101008035 Bolt - M8x35 WG76EH01010/02 Plate WG76EH02010 Bearing Half WG81EG01000 Brake Cable RH WG81EG02000 Brake Cable LH WG0301006000 Washer - M6 WG1301009000 Check Ring 9 WG76EH05010/02 Torsion Spring WG81EG03000/01 Brake Pedal WG76EH06010 Switch WG76EH04010...
  • Page 34 CHASSIS & CONTROL UNITS Part number Description WG76ED01170 Accelerator Pedal WG0301005000 Washer - M5 WG0202005000 Nut - M5 WG0101005016 Bolt - M5x16 WG0202004000 Nut - M4 WG76ED06010 Anti Vibration Mount WG76ED05010 Spacer WG0104004020 Screw - M4x20 WG81EH01000B1 Control Unit RH WG0202003000 Nut - M3 WG0104003016...
  • Page 35 MULCH PLUG Part number Description WG81EI06000 Mulch Plug WG81EI05000/02 Pivot Pin WG81EI04000/02 Spring WG81EI03000/02 Tension Spring WG81EI01000/22 WG81EI07000 Grip WG/WB81EC-B/FEB20/V1.1...
  • Page 36 PARKING BRAKE Part number Description WG81EJ01000/02 Brake Lever WG81EJ02000/02 Bracket WG0101005040 Bolt - M5x40 WG0202005000 Nut - M5 WG0301005000 Washer - M5 WG81EJ03000/02 Spring WG0102006008 Bolt - M6x8 WG81EJ04000 Knob WG/WB81EC-B/FEB20/V1.1...
  • Page 37 STEERING COMPONENTS Part number Description WG76EA01000B1 Steering Wheel WG0202012000 Nut - M12 WG0301012000 Washer - M12 WG81EK01000 Steering Shaft Assembly WG0102006020 Bolt - M6x20 WG0301006000 Washer - M6 WG0202006000 Nut - M6 WG0101008080 Bolt - M8x80 WG76EA06010/02 Plate WG76EA07010 Bearing Half WG0301008000 Washer - M8 WG0202008000...
  • Page 38 HEIGHT ADJUSTMENT Part number Description Part number Description WG76EG08010/02 Limit Block WG76EG11010 Grip WG0302008000 Plain Washer - M8 WG81EL01000/01 Height Lever WG81EL08000/02 Pivot Pin B WG81EL02000/01 Graduator WG5320333010 Spring Clip WG76EG13010/02 Lever Spring WG81EL09000/22 Front Plate WG76EG14010/02 Pivot Pin WG81EL10000/02 Rod A WG1301006000 Check Ring - 6...
  • Page 39 FRONT AXLE Part number Description WG0101005012 Bolt - M5x12 WG0401005000 Spring Washer - M5 WG0301005000 Washer - M5 WG76EJ10010/02 Plate WG76EJ01010/02 Axle Pivot WG76EJ11010 Cushion WG0501003022 Cotter Pin 2.5x22 WG0301016000 Washer - M16 WG76EG01010 Top Bush WG76EJ03000B1/22 Axle Beam WG76EJ04010 Lower Bush WG0302016000 Large Washer...
  • Page 40 DECK ASSEMBLY Part number Description Part number Description WG0202005000 Nut - M5 WG81EF13020/32 Blade LH WG0301005000 Washer - M5 WG76EF12010 Blade Boss WG0101005016 Bolt - M5x16 WG81EN02000 Grass Deflector WG76EF01010 Motor Cover WG0107008020 Bolt - M8x20 WG0202006000 Nut - M6 WG81EF13021/32 Blade RH WG0301006000...
  • Page 41 TRANSMISSION Part number Description WG0215012000 Wheel Nut WG76ELZ013 Wheel Assembly WGERLT013 Tyre WG76EI01000/22 Wheel Rim WG0118008025 Bolt Assembly - M8x25 WG76EI14000 Drive Shaft Assembly RH WG76EN07020B1 Drive Motor WG76EI05010 Gearbox WG76EI15000 Drive Shaft Assembly LH WG81ER01000 Rear Wheel Cover WG/WB81EC-B/FEB20/V1.1...
  • Page 42 CHARGER & WIRING LOOM Part number Description WG81EP02000 Charger WG76EK06010 Mains Cable UK WG81EP01000 Wiring Loom GRASS COLLECTOR CATCH Part number Description WG0101005016 Bolt - M5x16 WG0301005000 Washer - M5 WG0202005000 Lock Nut - M5 WG81EQ01000/02 Hook Bracket WG81EQ02000/02 Frame Hook WG4820114010 Spring for Tensional Arm WG0301006000...
  • Page 43 WG/WB81EC-B/FEB20/V1.1...
  • Page 44 Weibang UK Murray Way Wincanton Business Park Wincanton Somerset BA9 9RS T: 01963 828066 W: www.weibang.co.uk WG/WB81EC-B/FEB20/V1.1...
