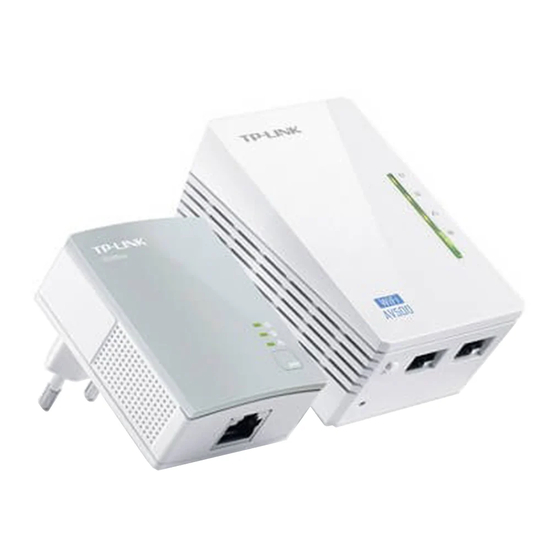

TP-Link TL-WPA4220 KIT Quick Installation Manual

Quick Installation Guide
* TL-WPA4220 KIT (European version) is used for demonstration in this guide.
* Images may differ from actual products.
Plug and Play
e
r l i n
w e
P o
N
L A
N
W A
Router
Extender
TL-WPA4220
1
Plug the adapter into a power outlet
and connect it to the router's LAN
Adapter
port via an Ethernet cable.
TL-PA4010
2
Plug the extender into a power outlet on the same electrical circuit.
Wait until the extender's Powerline LED
Note: If the LED is off, please refer to FAQ > Q2.
3
On Connect your devices to the internet using the default SSID (network
name) and password on the label at the top of the extender.
Attention
1. Use the product only in the upright direction.
2. Plug powerline devices into wall outlets instead of power strips.
Note: Using power strip will affect network performance or even cause connection drops.
Wall Outlet
turns on.
Tip:
Want to unify or personalize your network? See the back
page for instructions.
Power Strip
