TP-Link TL-PA4010 Quick Installation Manual

Quick Installation Guide
* TL-WPA4220 TKIT (European version) is used for demonstration in this guide.
Image may differ from actual product.
N
L A
Router
N
W A
u i t
i r c
l C
i c a
c t r
E l e
m e
S a
Adapter
1
TL-PA4010
Plug the adapter into a power outlet and
connect it to the router's LAN port via an
Ethernet cable.
m e
S a
On
2
Plug the extenders into power outlets on the same electrical circuit. Wait until
the extender's Powerline LED
Note: If the LED is blinking or off, please refer to FAQ > Q2.
Extender A

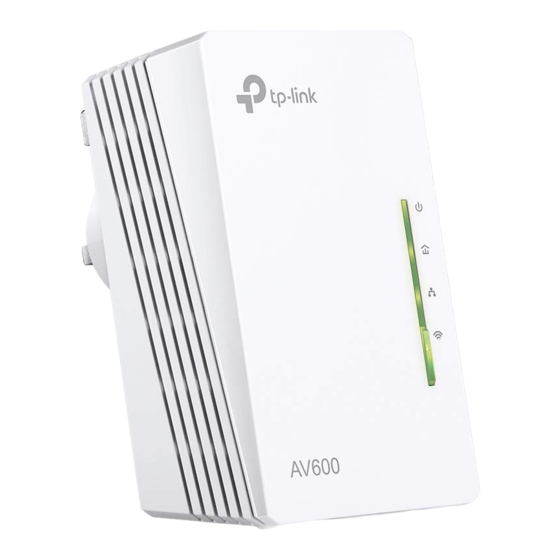

TL-WPA4220
3
Connect your devices to the internet using the default SSID (network name)
and password on the label at the top of the extender.
Attention
Plug powerline devices into wall outlets instead of power strips.
Using power strip will affect network performance or even cause connection drops.
Wall Outlet
u i t
i r c
l C
i c a
c t r
E l e
On
A V
6 0 0
turns on.
Tip:
Want to unify Wi-Fi networks or personalize your network?
See the back page for instructions.
Power Strip
Extender B
TL-WPA4220
