- Page 1 USB/SD/BT MIXING AMPLIFIER...
-
Page 2: Safety Precautions
USB/SD/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM Thank you for purchasing the USB/SD/BT Mixing Amplifier. Please carefully follow the instructions in this manual to ensure long, trouble-free use of the equipment. Packaging Contents ................1 USB/SD/BT amplifier ..................1 User manual ................... - Page 3 PUBLIC ADDRESS SYSTEM USB/SD/BT MIXING AMPLIFIER When the Unit is in Use ※ Should the following irregularity be found during use,immediately switch off the power,disconnect the power supply plug from the AC outlet and contact your nearest dealer.Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
-
Page 4: Limited Warranty
USB/SD/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM When the Unit is in Use ※ Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury and/or property damage.In addition,the object itself may fall off and cause injury and/or damage. - Page 5 PUBLIC ADDRESS SYSTEM USB/SD/BT MIXING AMPLIFIER DESCRIPTION & FEATURE The USB/SD/BT Mixing Amplifiers are designed to meet the requirements of medium sized professional public address installations,and designed with overall 70/100-volt and 4/8 ohms(Ω) loads and featured an industry leading 5 zoned 100 volt load solution,150/300 watts of amplifier power are available,with provided an audio output to 5 different zones within the venue,each zone has its own separate switch on/off manually operated on front panel,and each zone has its own LED indicator,shall light green for on.
-

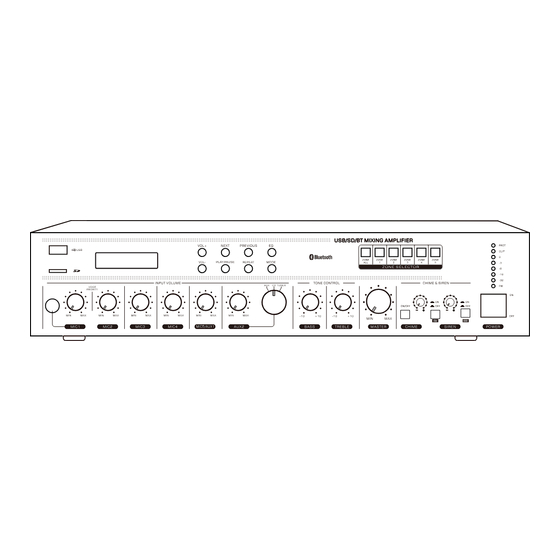

Page 6: Front Panel
USB/SD/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM FRONT PANEL (1) (2) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) (17)(18)(19)(20)(21) (22) (1) USB INPUT INTERFACE: Allows you to play USB disk. (2) SD INPUT INTERFACE: Allows you to play SD disk. (3) SCREEN: Displays the working status of playing programmes. -
Page 7: Rear Panel
PUBLIC ADDRESS SYSTEM USB/SD/BT MIXING AMPLIFIER REAR PANEL (3) (4) (5) (6) (7) (8) (9)(10)(11)(12) (13) (14) (15) (16) (17) (18) (19) (20) (21) (22) (1) AC POWER INLET: It accepts a standard 3-pin cable. (2) AC FUSE DRAWER: Contains one main 1A fuse and one spare 1A fuse. (3) TUNER CONNECTOR: This RCA connector receives signal from tuner player. -
Page 8: Specification
USB/SD/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM SPECIFICATION Model Rated Power 150W 300W Low impedance:4 & 8 ohms (Ω) Speaker Output Mode Voltage line:70V & 100V MIC Input 5 MIC inputs supporting XLR phantom power connection Frequency Response 60 Hz ~ 15k Hz (± 3 dB) <1% at 1kHz,1/3 rated power T.H.D ≥75dB... -
Page 9: Connection Illustration
PUBLIC ADDRESS SYSTEM USB/SD/BT MIXING AMPLIFIER CONNECTION ILLUSTRATION Front Panel CD/DVD Player VIDEO OUTPUT CAUTION Cb/Pb Cr/Pr VIDEO RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING HIGH VOLTAGE INSIDE TO PREVENT ELECTRICAL SHOCK DO NOT REMOVE ANY COVER OR SCREW REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL DO NOT ALLOW THIS PRODUCT R-AUDIO-L MR-MIXED-ML... -
Page 10: Speaker Connection
USB/SD/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM SPEAKER CONNECTION Important Notes: This amplifier has different loudspeakers outputs of 100V,70V and low impedance 4Ω/8Ω. It's only possible to use one output at the same time,connecting more than one may damage internal parts of the amplifier.Each of 100V,70V,4Ω and 8Ω terminals must work with COM. (common) terminal. - Page 11 PUBLIC ADDRESS SYSTEM USB/SD/BT MIXING AMPLIFIER 4Ω & 8Ω low impedance output This output allows connection of low impedance loudspeakers without transformers, When two or more loudspeakers are used ensure that they are wired in such a way in Series, or in Parallel, or in Series & Parallel Combination that total load impedance remains at 4Ω...
-
Page 12: Bluetooth Operations
USB/SD/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM BLUETOOTH OPERATIONS *Note: The Bluetooth name of this amplifier is “BGM SYSTEM” In order to enjoy music from a Bluetooth device on this amplifier, the Bluetooth device must first be paired with this amplifier. Once the Bluetooth device has been paired, it does not need to be paired again. - Page 13 PUBLIC ADDRESS SYSTEM USB/SD/BT MIXING AMPLIFIER NOTE: Page 22...
- Page 14 CAUTION: Do not open the equipment cover arbitrarily, so as not to electric shock. Please contact the professionals to maintian if necessary. The products are constantly improving,subject to change without prior notice.
