Mantua Manufacturing CVT-3 Assembly Instructions

Full to queen converter rails

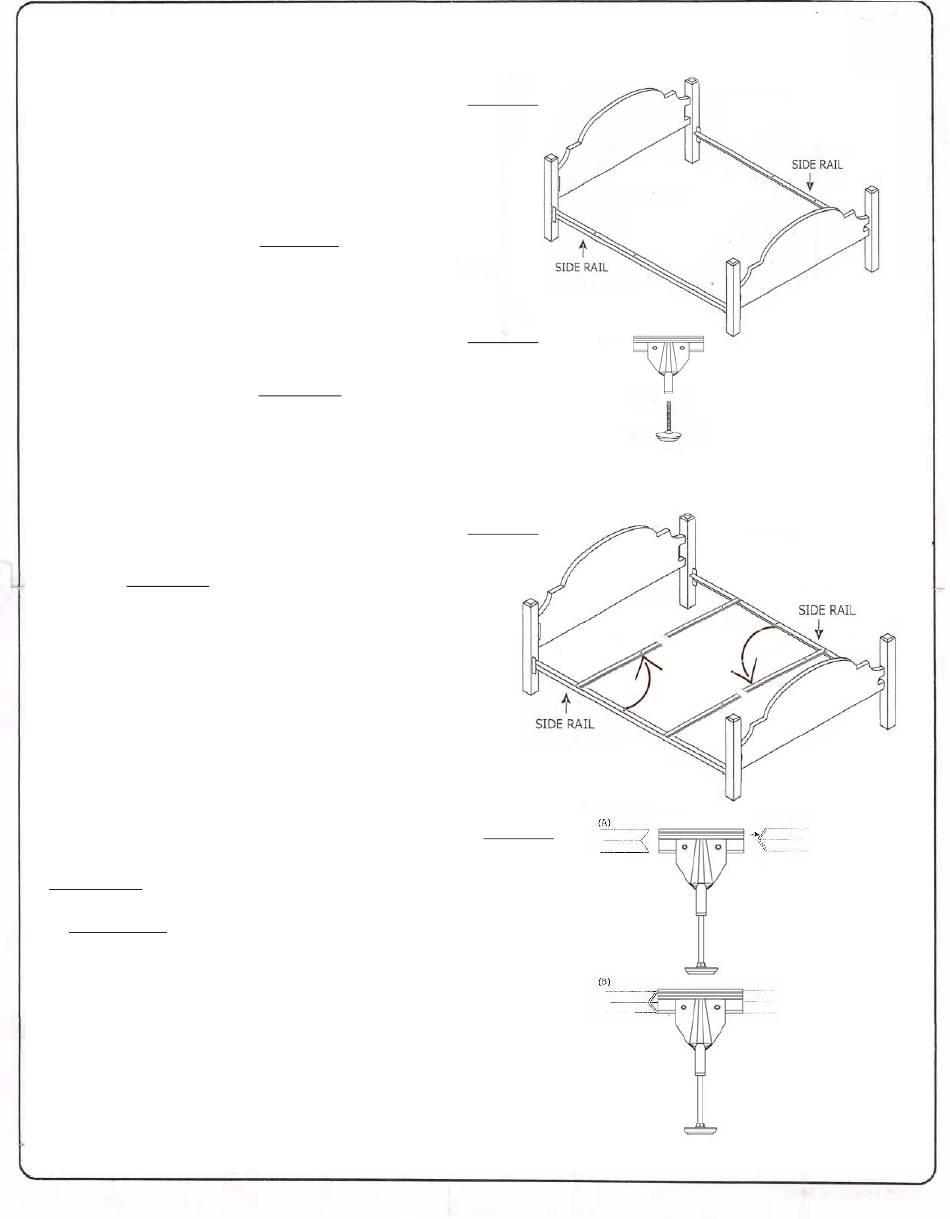

CVT-3 Instructions -page 1

FULL TO QUEEN CONVERTER RAILS ASSEMBLY INSTRUCTIONS

Step 1

Insert SIDE RAILS into headboard &

footboard. If installing hook-on rails, make

sure the hook-on brackets grip the post pins

inside your headboard and footboard. If

installing bolt-on rails, make sure all nuts and

bolts are tightened. See Figure 1.

Step 2

Insert a threaded glide in each

center support clamp. Figure 2.

Step 3

Swing out cross supports to 90°

angles. Figure 3.

Step 4

Slide clamp with leg onto end of angle bar

Figure 4(A). Overlap angle bars and slide

clamp with leg onto both angle bars as shown

in Figure 4(B). When you achieve the desired

width, tighten thumb screw. Adjust the legs

so they touch the floor.

Figure 1

Figure 2

CENTER SUPPORT CLAMP-

ADJUSTABLE GLIDE-

Figure 3

Figure 4

Table of Contents

Do you have a question about the CVT-3 and is the answer not in the manual?

Page 1 CVT-3 Instructions -page 1 FULL TO QUEEN CONVERTER RAILS ASSEMBLY INSTRUCTIONS Step 1 Figure 1 Insert SIDE RAILS into headboard & footboard. If installing hook-on rails, make sure the hook-on brackets grip the post pins inside your headboard and footboard. If installing bolt-on rails, make sure all nuts and bolts are tightened.
Page 2 CVT-3 Instructions - page 2 Step 5 Figure 5. Using bolts and nuts attach the center support bar to the side rails as shown in Figure 5. Step 6 Figure 6. Slide clamp leg onto end of angle bar. Figure 6(A). Overlap angle bars and slide clamp leg onto both angle bars as shown in Figure 6(B).
