Parts Included
•
Bed Frame Rails - 4
•
Middle Connector - 2
•
Center Rails - 2
•
Nylon Glides - 2
•
Stem Glides - 4
Instructions
Step 1
Swing out cross arms on side rails. Slotted
brackets should be at the head of the bed.
Headboard Brackets
Step 3
Slide sockets into 4 inserts on legs of side
rails. Insert stem glides into sockets.

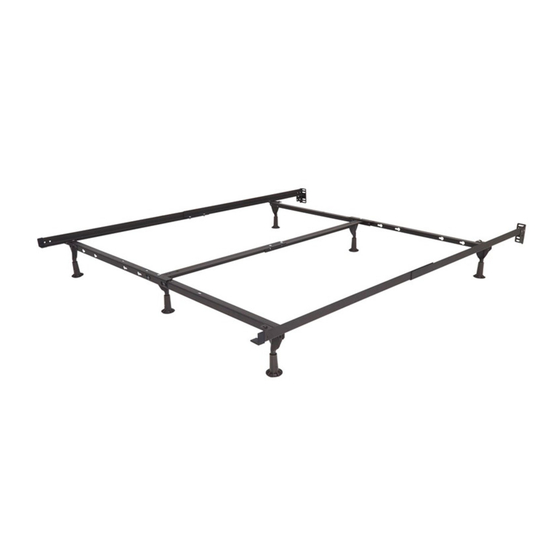

Universal Grab-and-Go
Bed Frame Assembly Instructions
•
Plastic Sockets - 4
•
End Caps - 2
•
Bolts - 8
•
Nuts - 8
•
Plug Locks - 4
Step 2
Overlap side rails and attach with bolt and
nut. Tighten with wrench. Repeat on other
side.
Step 4
Slide end caps over the foot ends of the
side rails.
Advertisement
Table of Contents
Related Manuals for Mantua Manufacturing Universal Grab-and-Go
Summary of Contents for Mantua Manufacturing Universal Grab-and-Go
- Page 1 Universal Grab-and-Go Bed Frame Assembly Instructions Parts Included • Plastic Sockets - 4 • Bed Frame Rails - 4 • End Caps - 2 • Middle Connector - 2 • Bolts - 8 • Center Rails - 2 • Nuts - 8 •...
- Page 2 Step 5 FOR TWIN, FULL, OR QUEEN - Select the keyholes for the size of your bed. Insert rivet buttons on cross arms into selected keyholes. Slide arms away from each other to lock the position. Then insert plug lock into keyhole at the end of the overlap. Repeat on the other side of the bed. FOR KING OR CALIFORNIA KING - Choose the keyholes on the middle connector for the size of your bed.
