IOTA DLS Series Owner's Manual

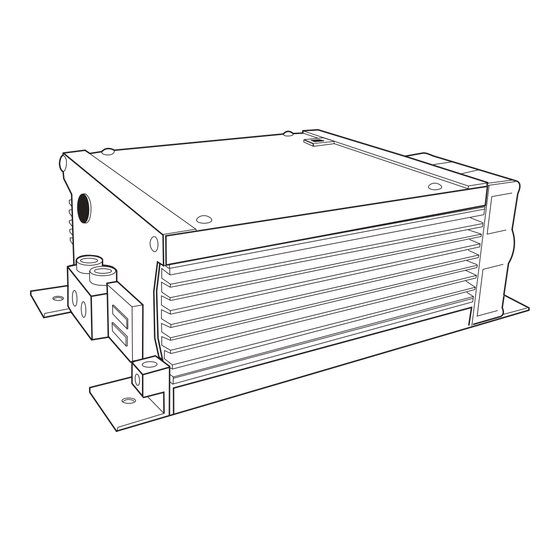

The DLS series power converter/battery charger from IOTA
Engineering converts 220 volts nominal A.C. to 13.6 volts
D.C. As a power supply, its tightly controlled regulation
allows the user to operate any 12 volt nominal D.C. load
up to the converter's rated output current. As a battery
charger, the converter will maintain the battery, deliver-
ing its full-rated current when the battery capacity falls
sufficiently low. The voltage is set to deliver its maxi-
mum current for the necessary period of time that mini-
mizes undue stress to the battery caused by heating of
its cells. This helps to ensure the longest possible life
of the battery. Over time, as the battery nears its full
capacity, the converter will float-charge the battery to
prevent self-discharge of its cells.

PROTECTION FEATURES

The DLS series power converter/battery charger is designed
with high quality components to help ensure years of con-
tinuous use. The DLS series is protected by multiple pro-
tection features for a long, trouble-free life.
1) Reverse Battery Polarity Protection. 2) Brown-Out
Input Protection. 3) Over-Current Protection - cycle
by cycle peak limiting as well as rated current limiting
to maximize the life of the converter. 4) Over-Tem-
perature Protection. In addition, it is designed with a
unique "proportional" fan control circuit. Fan speed is
directly proportional to the converter's internal ambi-
ent temperature. This enables the fan to turn on and
off very slowly, minimizing unwanted fan-starting noise.

WARRANTY

The DLS series power converter/battery charger is war-
ranted from defects in materials or workmanship for two
years from date of retail purchase, and limits the remedies
to repair or replacement. This warranty is valid only in the
continental United States and Canada. For complete war-
ranty details, contact Customer Service or visit
www.iotaengineering.com.
220VAC DLS SERIES POWER CONVERTER/CHARGER
DC Output Voltage (No Load) approx.
Output Voltage Tolerance (No Load)
Output Amperage, Max Continuous
Output Voltage (Full Load) approx.
Maximum Power Output, Continuous
Ripple and Noise
Input Voltage Range
Input Voltage Frequency
Maximum AC Current
Typical Efficiency
Max Inrush Current, Single Cycle
Short Circuit Protection
Overload Protection
Line Regulation
Load Regulation
Fan Control*
Thermal Protection
Working Temperature Range
Storage Temperature
Withstand Voltage
Dimensions**
Weight
Distributed By:
OWNER'S MANUAL
DLS-220-45 DLS-220-55
DLS-220-30
13.6 V (DC) 13.6 V (DC)
+ or - .7%
+ or - .7%
30 Amps
45 Amps
>13.4V (DC)
>13.4 V (DC)
550 Watts 820 Watts
<50 mV rms
<50 mV rms
220-240VAC
220-240VAC
47-63
47-63
4.70 Amps
6.75 Amps
>80%
>80%
27 Amps
27 Amps
Yes
Yes
>100%
>100%
100 mV rms
100 mV rms
<1.5%
<1.5%
PROPORTIONAL
PROPORTIONAL
PROPORTIONAL
YES
YES
0 - 40C
0 - 40C
-20 to 80C
-20 to 80C
1240V @ leads
1240V @ leads 1240V @ leads
7" x 6.5" x 3.5"
7" x 6.5" x 3.5"
7" x 6.5" x 3.5"
5.5 lbs
5.5 lbs
13.6 V (DC)
+ or - .7%
55 Amps
>13.4 V (DC)
1000 Watts
<50 mV rms
220-240VAC
47-63
8.2 Amps
>80%
27 Amps
Yes
>100%
100 mV rms
<1.5%
YES
0 - 40C
-20 to 80C
5.5 lbs
