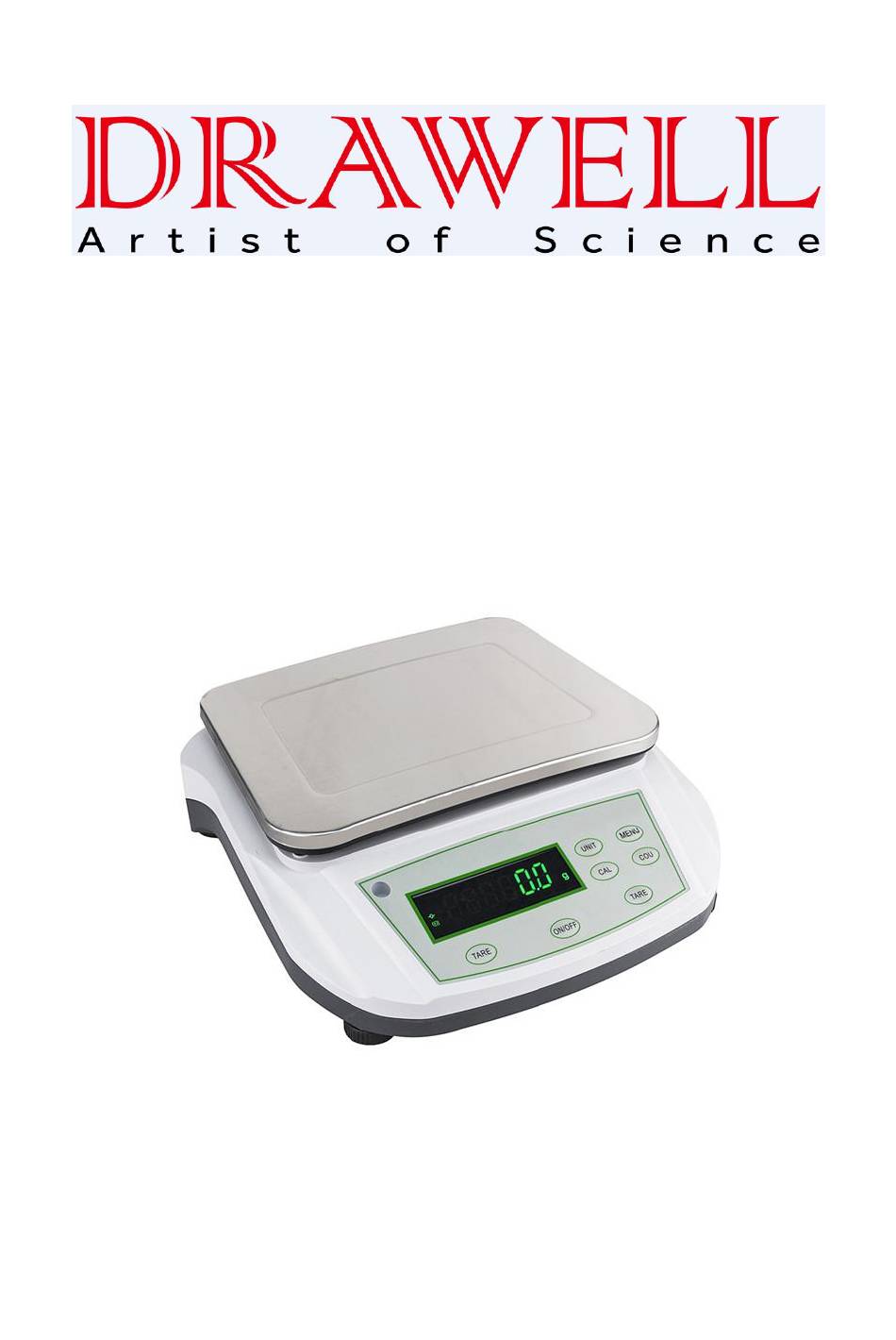

- Page 1 YP Series Industrial Precision Balance INSTRUCTION MANUAL Thank you for choosing our electronic balance.
- Page 2 YP-D series industrial precision balance work on high precision strain gauge load cell which implements high speed stabilization and high reliability. Specifications, Model No. YP100001D YP200001D YP300001D Max. Capacity 10kg 20kg 30kg Tare Range 10kg 20kg 30kg Readability (g) 0.1g 0.1g 0.1g Repeatability (g)
- Page 3 Features High Precision Loadcell Rugged Plastic Housing Big size Stainless Steel Platter High contrast easy to read LED display Built-in rechargeable battery Height adjustable feet Substraction Full Capacity Fast response Overload Protection Below Balance Weighing Facility Selectable measure units, kg, lb, g Checking Weighing, Piece counting function RS232 Interface Function Keys...
- Page 4 8.8.8.8.8.8. Battery Voltage U= Maximum capacity ------------ Finally the balance stays in a standby state of showing 0g, 0.0g in the display Notice: the lasting time of --------- will be decided by the stability of the loadcell, thus, the balance must not be located in an unstable surface or in the wind blow. If O flashes in the display, it means the balance is not in a stable condition, calibration and counting operations is not allowed.
- Page 5 changes from g to pcs, put 10 samples on the platter, press function key COU, the balance will show “-----“ before it shows 10 pcs in the display, the balance enters counting mode. Notice: In counting mode, the weight of the sampling objects should be even, the weight of the individual sample should not be less than the division of the balance.
- Page 6 TIPS Warming up is necessary before any operation is made to the balance. In TARE mode, the value of the taring object cannot exceed the rated maximum capacity of the balance Calibration is necessary to ensure a reliable weighing. Switch off the balance when it is not used. It is suggested to turn the round platter clockwisely before take it off the balance Maintenance ----- Trouble shooting and solutions Phenomenon...
- Page 7 Drawell International Technology Limited Shanghai Drawell Scientific Instrument Co.,Ltd Add : Suite 1506,Lane581 XiuChuan Rd.,PuDong New Area,Shanghai,China Tel: 0086 21 50966080 Fax: 0086 21 50966080 Web : www.drawell.com.cn Email : sales01@drawell.com.cn...
