- Page 1 INSTRUCTION MANUAL FOR PRECISION BALANCE YP SERIES Thank you for choosing our electronic balance.
- Page 2 PC without installing any software. To ensure that you can make full use of the performance and function of your YP series balances, read this instruction manual carefully and use the balance correctly in accordance with the directions in the manual. When you have finished reading the manual, keep it in a safe place together with the balance so that you can refer to it at any time.
- Page 3 YP series precision balance work on high precision strain gauge load cell which implements high speed stabilization and high reliability. Specifications, Model No. (YP) 1000 2000 3000 4000 5000 Max. Capacity (g) 1000 2000 3000 4000 5000 Tare Range (g)
-
Page 4: Before Weighing

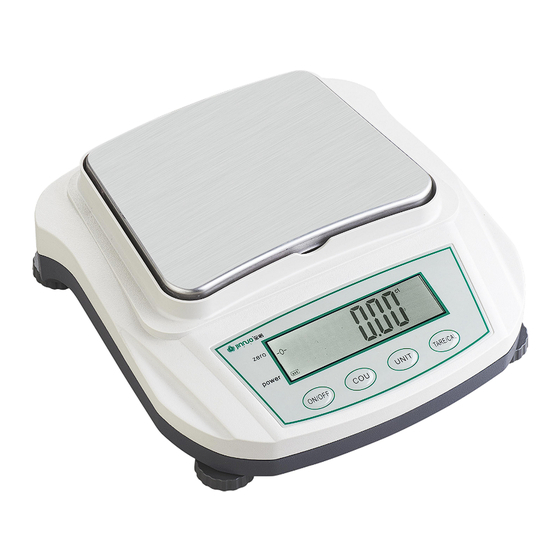

1 BEFORE WEIGHING Main body Place the object to be weighed here Display panel Level screws Shows the weighing results, information Adjust to level the balance for making function settings, the current function setting Operation keys Used to open and close the balance, tare the balance, perform calibration and print. - Page 5 Operation Keys During Weighing Press and hold for a Press once and Release while ON/OFF Turn on or turn off the balance — Select the counting function — Tare the balance(setting it to TAR/CAL Performs calibration zero) UNIT Select the unit —...
- Page 6 Use the correct power supply and voltage with the balance. Using an incorrect power supply or voltage with the balance will lead to fire or trouble with the balance. Note also that if the power supply or voltage is unstable or if the power supply capacity is insufficient, it will not be possible to obtain satisfactory performance from the balance.
- Page 7 ¤Direct sunlight ¤Dust, electromagnetic waves or a magnetic field Install the balance on a strong and stable flat table or floor. Placing the balance in an unstable site could lead to injury or trouble with the balance. When selecting the installation site, take into account the combined weight of the balance and the item to be weighed.
- Page 8 Turning the Power On 1 Insert the plug of the Power Cord into the DC IN connector on the back of the balance. 2 Connect the Power Cord to the power outlet. 3 Press “ON”. The display will automatically go through the changes indicated below. Warming Up Before performing span calibration on the balance or measuring its accuracy, you must ensure that is it in a stable state.
- Page 9 Also, carry out the adjustment at a location where there are few people moving around and there is no air flow or vibration. 1 Press “CAL” The weight value will flash. The calibration record is being output. When the output has finished, span calibration will start automatically 2 Place the calibration weight on the pan.
-
Page 10: Using The Balance
USING THE BALANCE 1 Enter the weighing mode 2 Place a container on the pan. 3 Once the display has stabilized, press “zero/tar”. The indication changes to zero. 4 Insert the sample into the container. 5 When the display has stabilized, (the stability mark) lights up, read the display. - Page 11 Drawell International Technology Limited Shanghai Drawell Scientific Instrument Co.,Ltd Add : Suite 1506,Lane581 XiuChuan Rd.,PuDong New Area,Shanghai,China Tel: 0086 21 50966080 Fax: 0086 21 50966080 Web : www.drawell.com.cn Email : sales01@drawell.com.cn...
