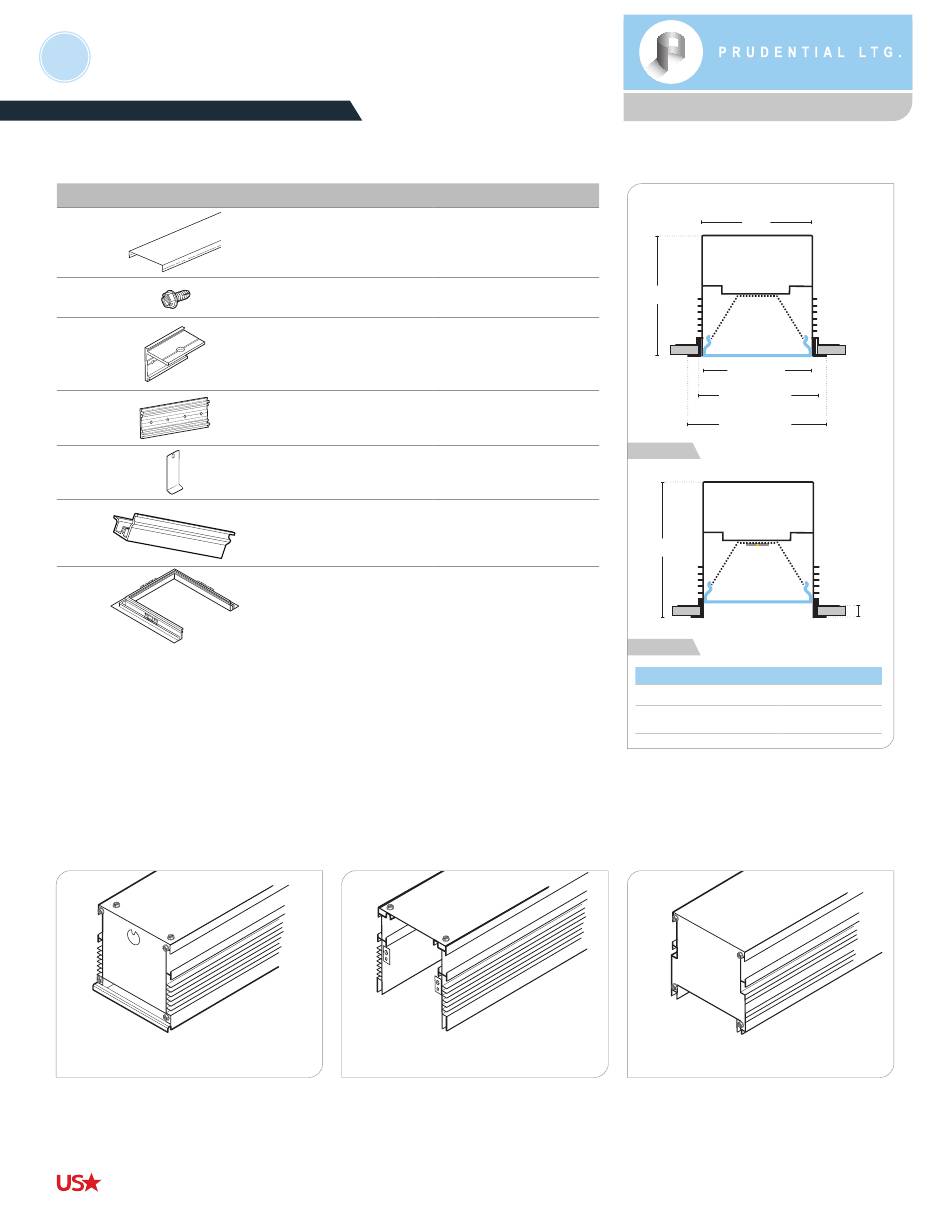

Prudential Bionic CONTINUOUS RUN X3 Installation Instructions Manual

Bionic | Recessed Linear
LED LED
4˝ Slot
I N S T A L L A T I O N I N S T R U C T I O N S
C O N T I N U O U S R U N X 3 , X 7

PARTS (SHIPPED SEPARATELY)

LENS REMOVAL TOOL
WALL RAIL
I D E N T I F Y I N G H O U S I N G
Ū Start/end fixtures are capped on one end.
Ū Intermediate fixtures are not capped
Ū Individual fixtures are capped on both ends.
LIGHT POCKET:
START/END/INDIVIDUAL
Ū Remove specular reflector protective coating (if required).
WARNING:
Ground fixture in accordance with local and national electrical codes. Failure to do so may result in serious personal injury.
Prudential Ltg. reserves the right to change design specifications or materials without notice. Please visit prulite.com for most current data.
© 2015 All rights reserved – All products manufactured at: Prudential Ltg. 1774 E. 21st Street, Los Angeles, CA 90058
PART NO. DESCRIPTION
— Lens
100-00019-14 8-32 x 3/8˝ Self-Tapping Screw
100-00191-02 Adjustable Hanger Bracket
100-00066-02 Aligner Spline
82484
Lens Removal Tool
8-32_X_3_8_HWH_SELF_TAP
ADJUSTABLE HANGER BRACKETS
— T-Bar Trim
— "U" Trim
WALL RAIL
INTERMEDIATE
LENS
LENS
P R UL I T E.CO M 213.746.0360
C R O S S S E C T I O N S
5˝
53/8˝
43/32˝
Aperture
51/8˝
Ceiling Opening
57/16˝: X3
65/16˝: X7
FLUSH
T-BAR BRACKETS OVERHEAD MOUNTING BRACKET
63/8˝
REG1
LENS REMOVAL TOOL
CEILING OPENING 8-32_X_3_8_HWH_SELF_TAP
LIGHT POCKET WALL TO WALL
LENS REMOVAL TOOL
ROW
+ 3/4˝
LENGTH
WALL-TO-WALL: START/END
1˝
8-32_X_3_8_HWH_SELF_TAP
+ 1/2˝
1 of 6
07-02-2020
