Summary of Contents for Acolyte EH50

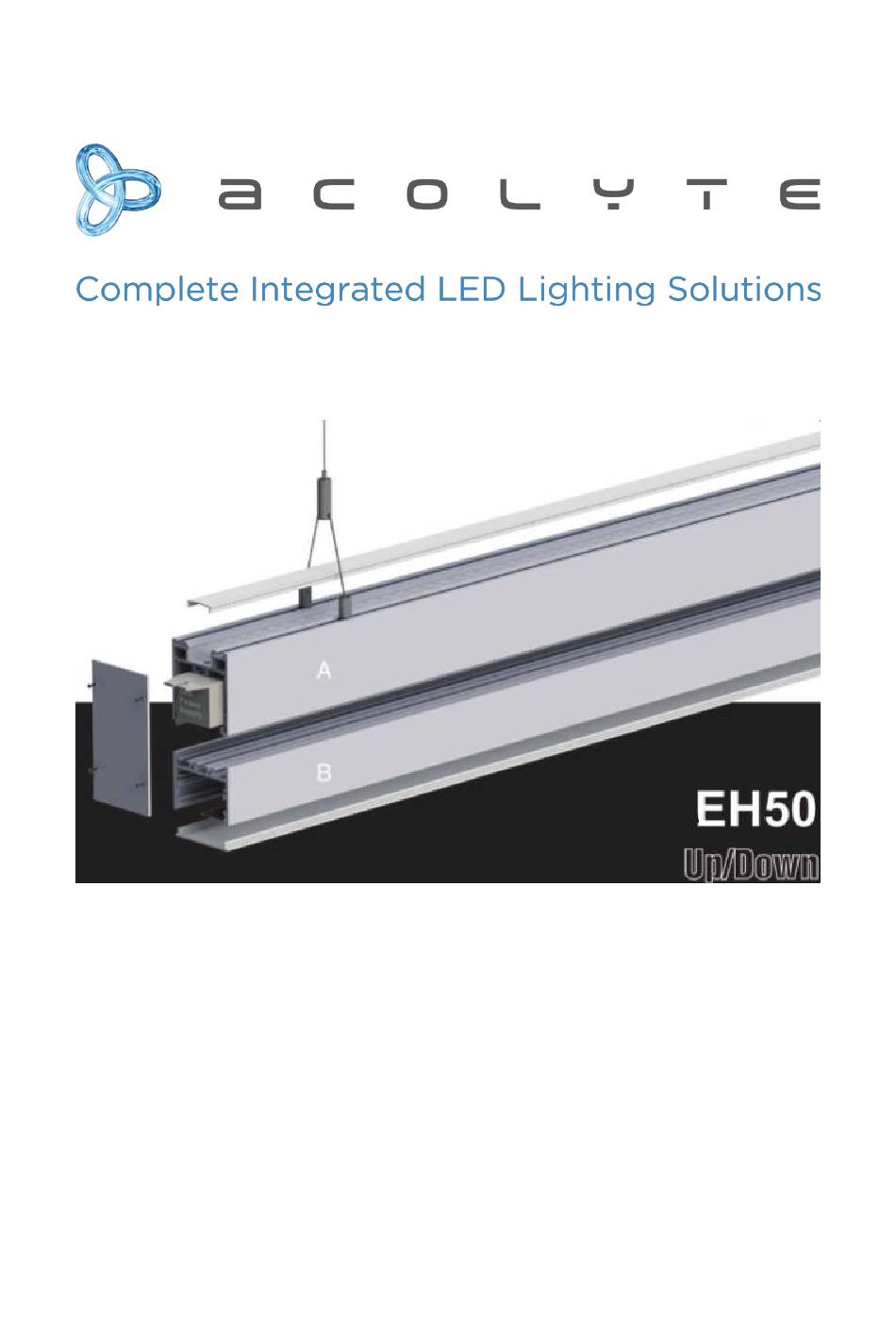

- Page 1 EH50 Pendant Installation manual...
- Page 2 Please Read instructions fully prior to assembly These products may represent a potential shock or fire hazard if • improperly installed. Products should be installed in accordance with these instructions and current electrical codes To avoid electrical shock, disconnect or disable power at the source •...
- Page 3 Instructions Step 1- Remove all fixtures from Packaging Step2 – group fixtures into the assembled lengths according to the labelling. Step 3 - working on assembling one length at a time split the fixtures in two as shown. Step 4 – Install the Hanging kits every 1.2m , slide square bolts into the top Housing slots as shown ensuring they are all positioned approximately 1.2m apart...
- Page 4 Step 5- screw both hanging couplers to the bolts and ensure suspension wire hangs correctly. Step 6 – slide the lens back and Install the connecting coupling bars into the upper and lower part of the fixtures as shown and secure the Grub screws using an allen key.
- Page 6 Step 7 – with assistance clip the upper and lower fitting together by applying slight pressure until it clicks into position, ensure all wires are within the fitting. Step 8 – connect the two driver supply connectors together between each connected fitting as shown.
- Page 7 Step 10 – Assemble the lower fixtures together and lock with the grub screws as shown. Step 11 – slide the lens back in to position Trim the lens using a stanley knife as required...
- Page 8 Step 12 – using the supplied grey silicone, seal over the joints to prevent any light leak and wipe clean with a lint free cloth. Step 13 – position and secure the endcaps using the 4 supplied allen key screws. Step 14 –...
- Page 9 Angled connections Step 1 – install the angled connection using connecting couplers labelled as shown on the first fitting and secure with the grub screws . Step 2 – Slide the two fittings together and secure the grub screws on the second fitting Step 3 –...
- Page 10 VOLTAGE DROP CHARTS For best performance and lumen output, ensure proper wire gauge is installed to compensate for voltage drop of low voltage circuits. Example: 12V Voltage Drop & Wire Length Distance Chart Wire 10 W 20 W 30 W 40 W 50 W 60 W...
- Page 11 Thank you for Purchasing Acolyte Products please visit our website for the latest products WWW.ACOLYTELED.COM...
