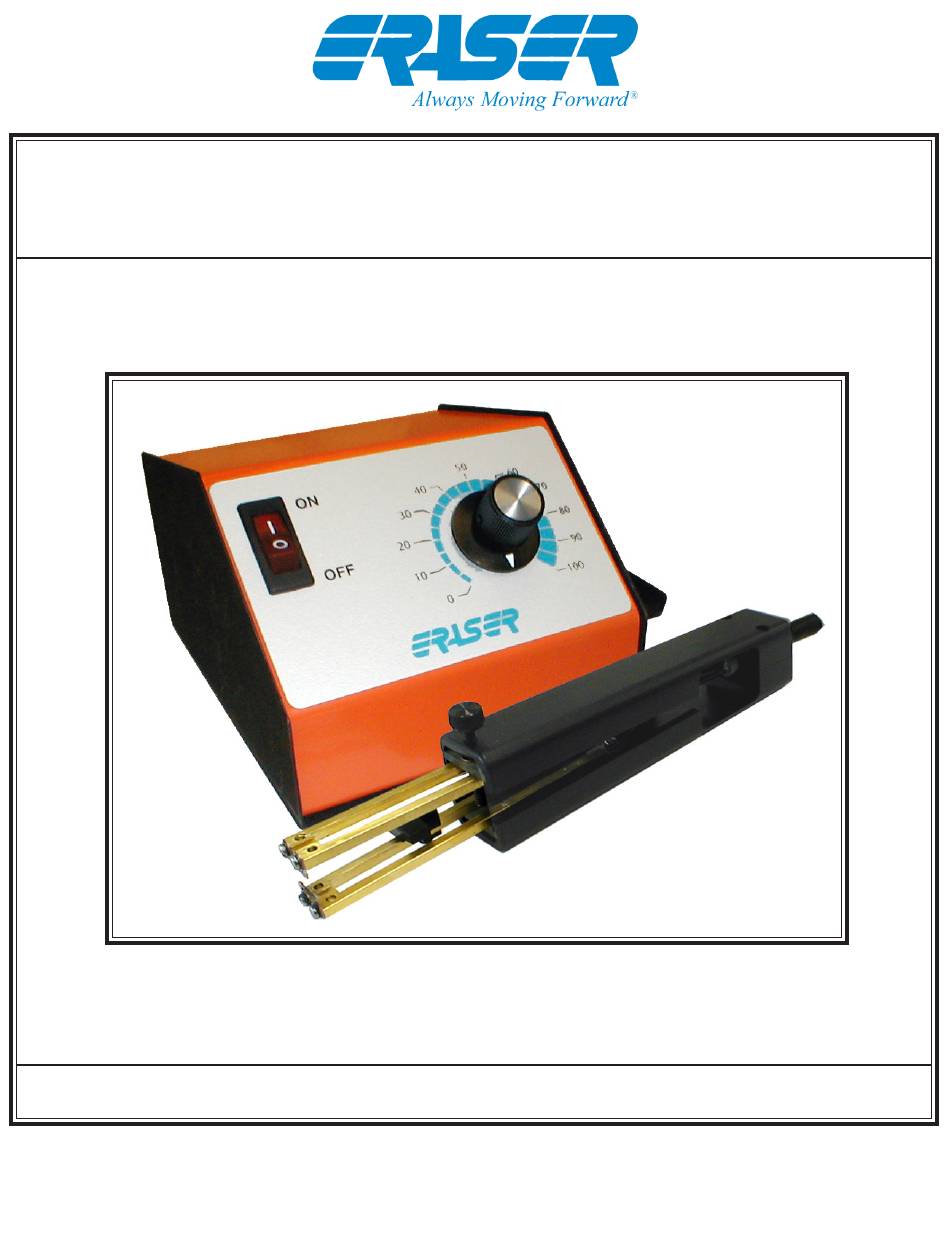

- Page 1 Operating Manual Please Read Before Operating Unit HTS1 Thermal Wire Strippers Please Call for Service or Spare Parts Phone: (315) 454-3237 Fax: (315) 454-3090 The Eraser Company, Inc. Website: www.eraser.com PO Box 4961/ Oliva Drive E-mail: info@eraser.com Syracuse, NY 13221, USA...
-
Page 2: Specifications
AWG (includes 4 screws and washers) IR1405 ....Set of stripping elements for 14, 16, 18, 20, AWG (includes 4 screws and washers) Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 3: Safety Instructions
USE RECOMMENDED ACCESSORIES ONLY. Consult this operating manual for recommended accessories. Use only parts supplied by The Eraser Company, Inc. Use of Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... - Page 4 If the 2” (51 mm). slug must be removed by hand, either use gloves with appropriate insulation or give the wire enough time to Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 5 Squeeze the handpiece to the closed setting, as this will provide the highest strip quality, the position and align the elements so they are parallel Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
-
Page 6: Maintenance
(see the Element Removal/Installation section). PROBLEM: Poor stripping results. SOLUTIONS: 1. Be sure you are stripping at the lowest possible Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... - Page 7 Element Selection IR5023 IR5035 General purpose heavy General purpose heavy duty duty "flat style" elements "flat style" elements notched un-notched for wire sizes for wire sizes 12AWG to 25AWG to 43AWG 24AWG (2.06-0.51mmø). (0.46-.056mmø). Width of Width of elements .500 elements .500 (12.7mm).
- Page 8 Control Knob Activation Switch For (HTS1C) Only Cradle Cradle Fuse Drawer IEC Connection TEMERATURE CONTROL UNIT The Eraser Company, Inc. Phone: (315) 454-3237 PO Box 4961/ Oliva Drive Fax: (315) 454-3090 Syracuse, NY 13221, USA Website: www.eraser.com E-mail: info eraser.com...
