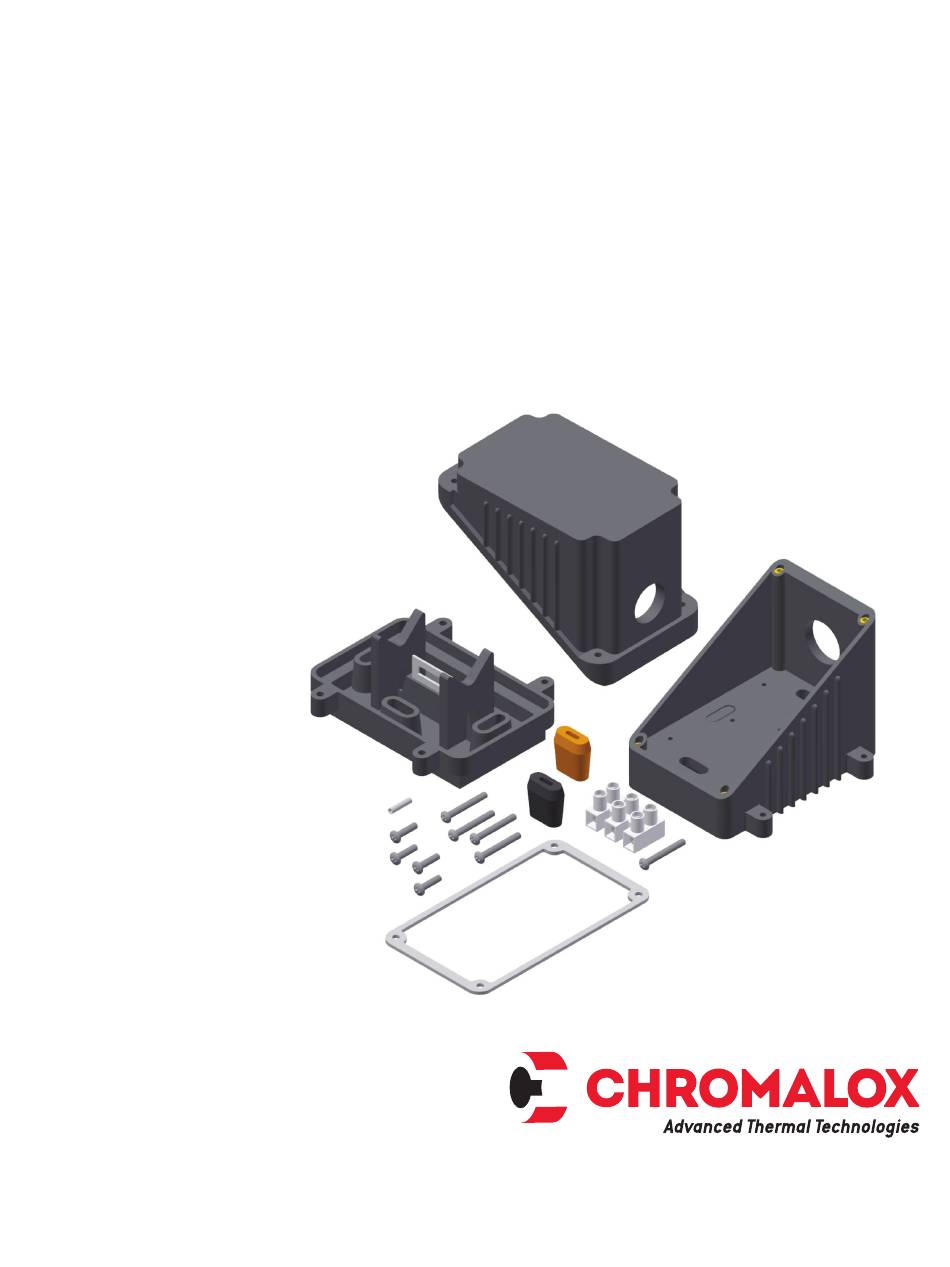

- Page 1 Installation Instructions RTPC Power Connection Kit For Self-Regulating & Constant Wattage Heating Cables PJ451-12 161-562762-001 May 2020...
- Page 3 Certifications & Approvals These kits are designed to provide temperature control IP66 NEMA/Type 4x -60°C < Ta < +55°C as well as termination for one run of Chromalox Self- Ordinary & Hazardous Locations regulating or Constant Wattage Heating Cable. Class I, Division 2 Groups A,B,C, & D, Zone 2 IIC Class II, Division 2, Groups F &...
- Page 4 Actual Kit Dimensions 3.52 In. 3.52 In. (89mm) (89mm) 9.78 In. (248mm) 1.25 In. (32mm) 4.38 In. (111mm) HAZARD OF ELECTRIC SHOCK. Disconnect all power Users should install adequate controls and safe- before opening. All installations must be effectively ty devices with their electric heating equipment. grounded in accordance with the National Electrical Where the consequences of failure may be severe, Code to eliminate shock hazard.
- Page 5 Cable installation instructions: CPR, CPM, CZH, SRL, SRM/E, SRP CWM cable special instructions denoted by * 1. Punch out the knockouts on the bottom of the 2. Feed the ends of the cables through the appropri- box which correspond to the openings in the base ate hole in the base.
- Page 6 5. Feed cables through the corresponding holes in the 6. Sarting from the end of the cable, unravel 2-1/2 box and secure box to base using all four screws. inches of the braid. Twist the strands together to form a pigtail. 7.
- Page 7 9. Connect conduit hub (Chromalox CCH, CH -75 or 10. Strip 3/8 inch length of each power wire and con- equal) to the box. Attach conduit to hub and bring nect to unused side of terminal block as shown. power leads into box.
- Page 8 RTPC Fully Assembled Limited Warranty: Please refer to the Chromalox limited warranty applicable to this product at http://www.chromalox.com/customer-service/policies/termsofsale.aspx. Chromalox, Inc. 1347 Heil Quaker Boulevard Lavergne, TN 37086 (615) 793-3900 www.chromalox.com © 2020 Chromalox, Inc.
