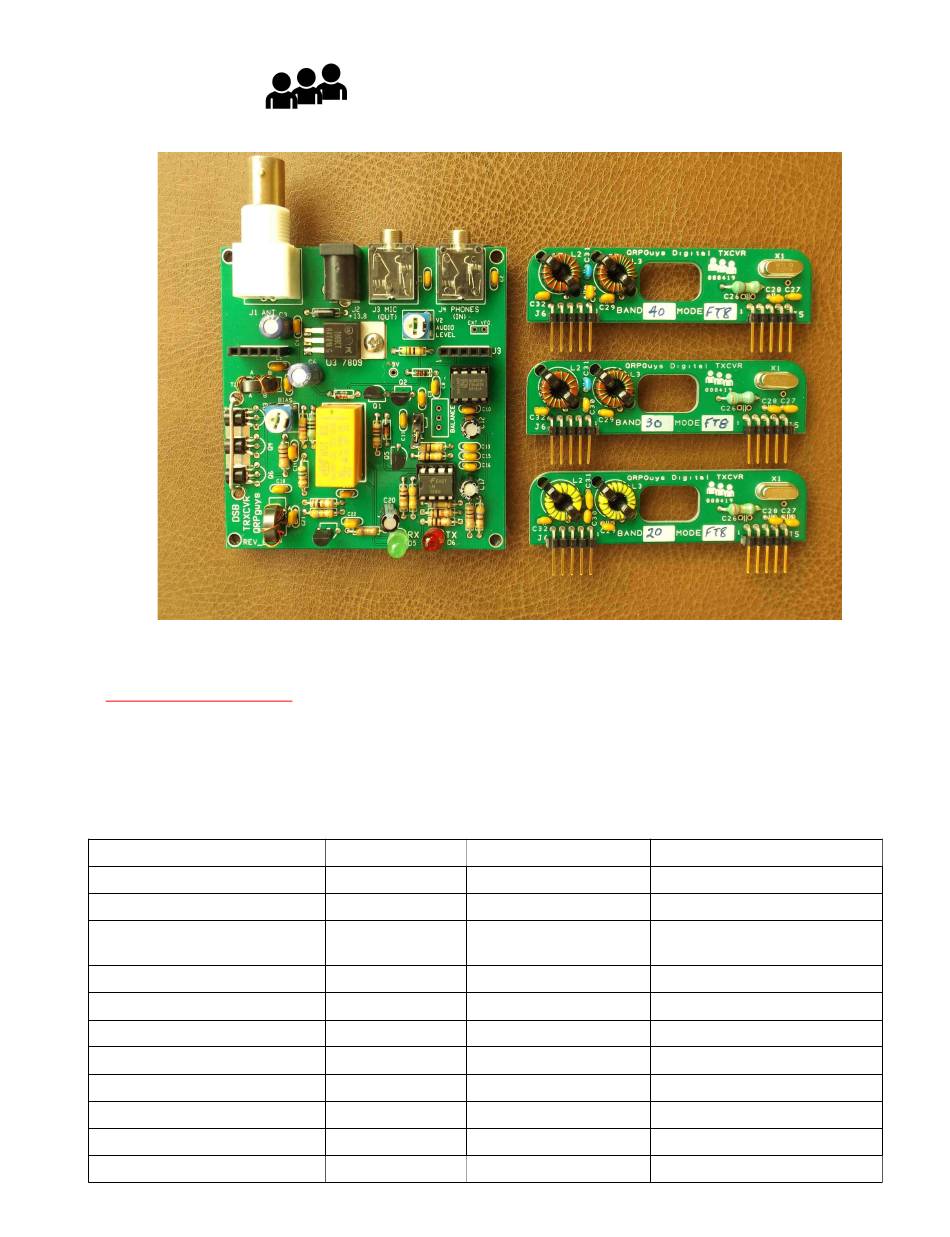

First, familiarize yourself with the parts and check for all the components. If a part is missing, please contact us
at
qrpguys.parts@gmail.com
Please read all the instructions before starting to assemble the transceiver.
PARTS LIST
LOCATION
C1, C2, C10, C16
C3, C6
C4, C5, C7, C8, C9, C11, C13,
C14, C15, C18, C21, C22
C12, C17, C20
C19
D1
D2, D3, D4
D5
D6
J1
J2
QRPGuys Digital DSB Transceiver Kit
and we will send you one.
QUANTITY
VALUE
4
10 nF - 103
2
100 uF /16V
12
100 nF - 104
3
1 uF / 25V
1
1 nF - 102
1
1N5817
3
1N4148
1
LED Green
1
LED Red
1
BNC Jack
1
2.1mm DC Jack
Page 1 of 13
TYPE
X7R MMLC
Long lead plus
X7R MMLC
Long lead plus
BLACK PLASTIC
SMALL GLASS
May have clear lens
May have clear lens
PCB MOUNT
PCB MOUNT
digital_txcvr_assembly_030720.pdf
