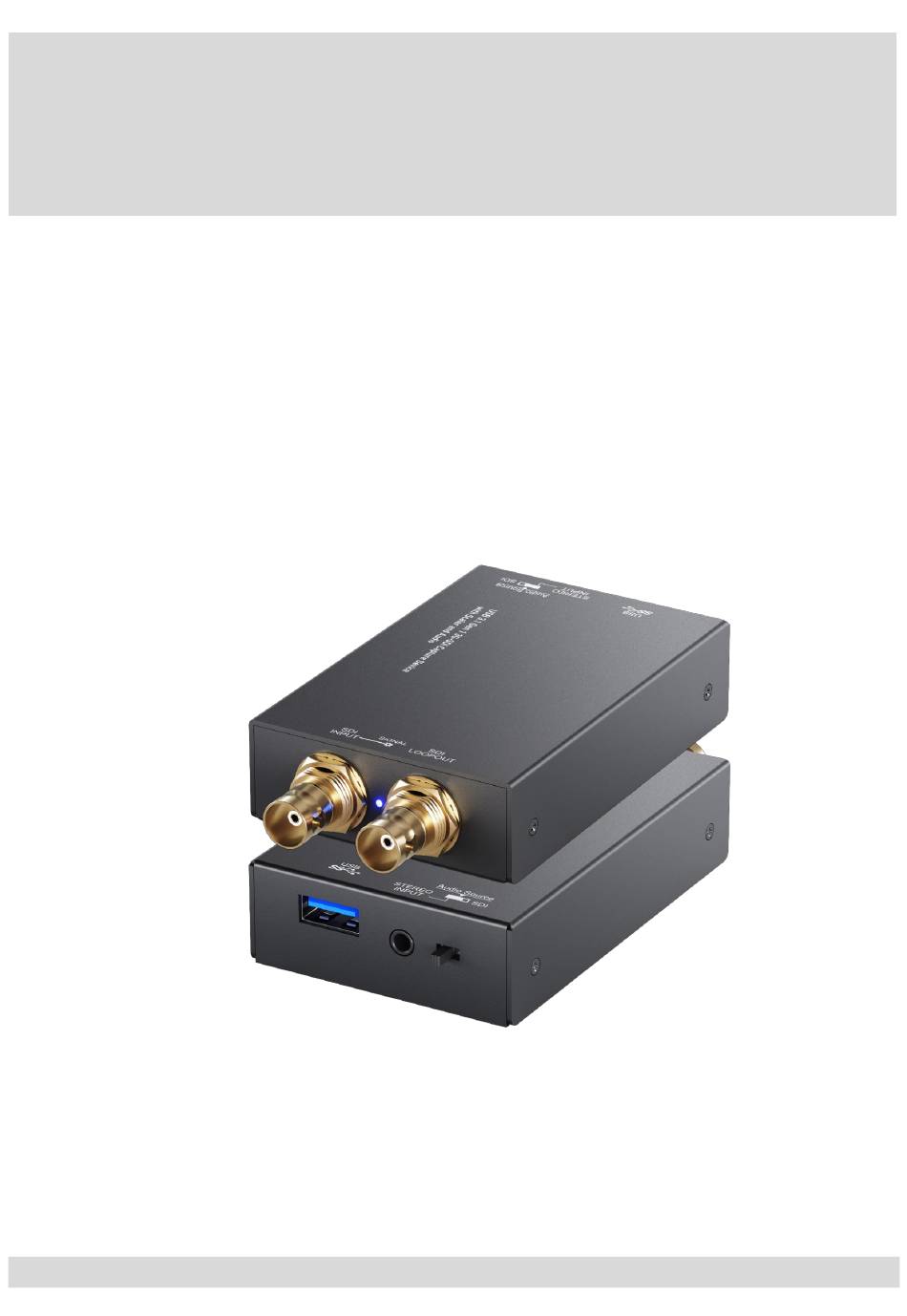

- Page 1 CAP-302AS-G USB 3.1 Gen 1 3G-SDI Capture Device with Scaler and Audio User Manual rev: 200514 Made in Taiwan...
- Page 2 TABLE OF CONTENTS INTRODUCTION ......................... 1 FEATURES ......................... 1 PACKAGE CONTENTS ...................... 1 SPECIFICATIONS ......................2 PANEL DESCRIPTIONS ..................... 3 CONNECTION DIAGRAM ....................3 TROUBLESHOOTING ......................4 USB PIN DEFINITION ......................5 WARRANTY ........................6...
- Page 3 INTRODUCTION The CAP-302AS-G USB 3.1 Gen 1 3G-SDI Capture Device with Scaler and Audio provides a professional way to capture 3G/HD/SD-SDI signals. It adopts USB 3.1 Gen 1 (USB 3.0) interface, which can realize high-speed transmission. Users can capture 3G/HD/SD-SDI signals by this capture device.
- Page 4 SPECIFICATIONS Model Name CAP-302AS-G Technical Role of usage Video Capture Device Input Video bandwidth 2.970 Gbit/s, 2.970/1.001 Gbit/s Output Video bandwidth Up to 350MBps (USB) Video support Up to 1080p60 Audio Input SDI Embedded Audio & Stereo audio Input Audio Format 2 Channel, 44.1 and 48KHz sample rate, up to 16bit PCM...
- Page 5 PANEL DESCRIPTIONS 1. USB OUT: Connect to a USB host (PC, NB, MAC…) 2. STEREO AUDIO IN: Connect to analog stereo audio source 3. AUDIO SWITCH: [left] Audio from stereo audio in, [right] Audio from SDI 4. SDI IN: Connect to a 3G/HD/SD-SDI source 5.
- Page 6 TROUBLESHOOTING Our USB device has done comprehensive tests before shipment. Most of the incompatibilities we have experienced are not from the USB capture device itself, but from the sophisticated software and hardware combination of PC or laptop. Please follow the following suggestions to see any helps. OBS is popular USB capture freeware and has excellent compatibility.
- Page 7 USB PIN DEFINITION VBUS SSRX- SSRX+ SSTX- SSRX+ Shield SHELL SHELL...
- Page 8 WARRANTY The SELLER warrants the CAP-302AS-G USB 3.1 Gen 1 3G-SDI Capture Device with Scaler and Audio to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year...
