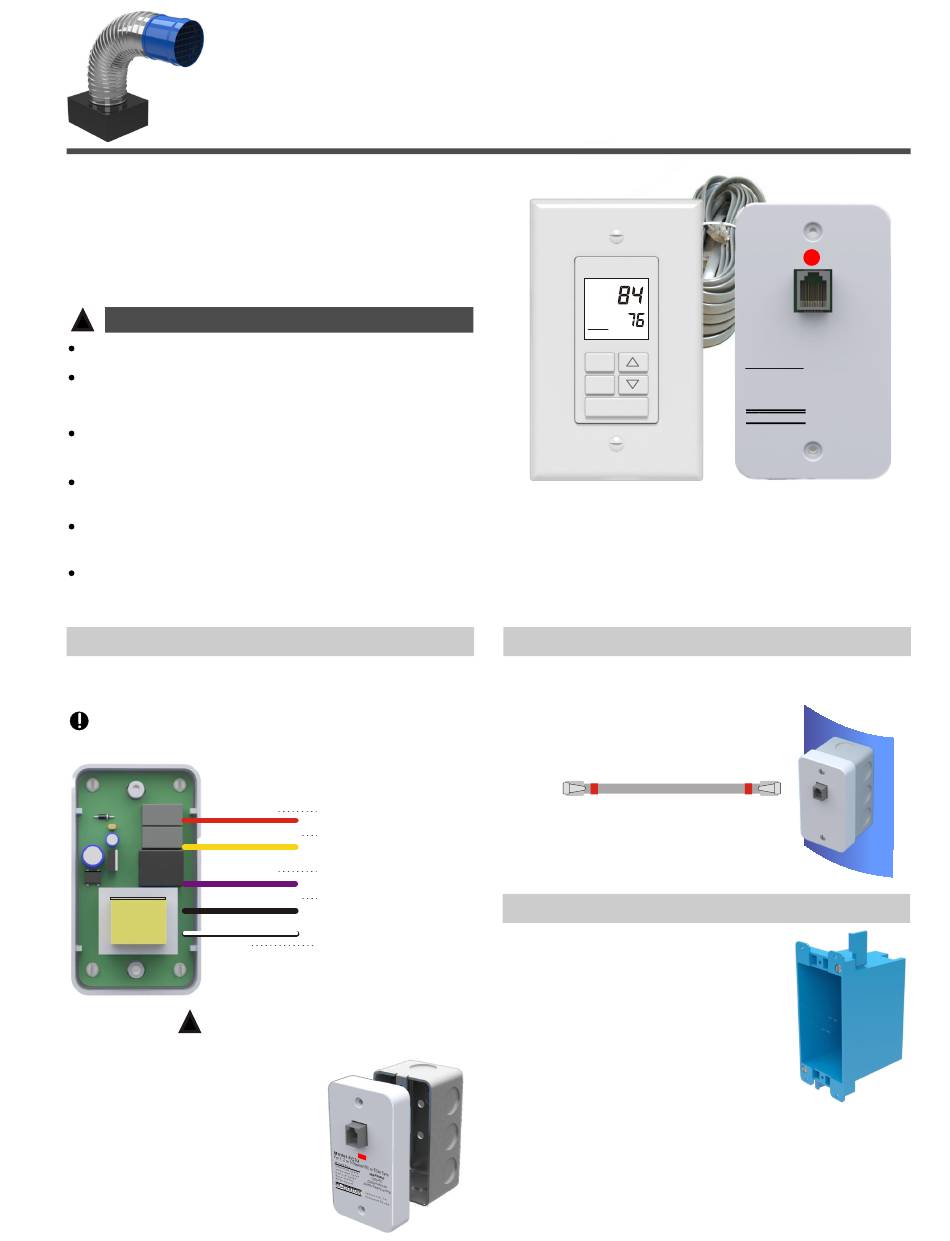

eControls Smart WHF Control WTTK Installer Manual

Smart
C o n t r o l

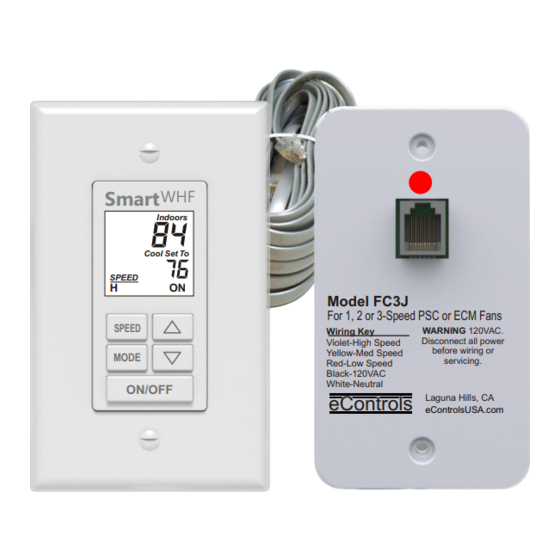

The WTTK kit includes a WTT Whole House Fan Wall
Control, an FC3J Fan Control and a 50' plug&play cable.
The optional TS3J Outdoor Temperature Sensor can be
added to the installation to delay fan operation if the
outdoor temperature is too warm to provide cooling.
!
CAUTIONS
Turn off power before installing whole house fan or controls.
Read and follow all instructions carefully, including those
included with the whole house fan. Read entire manual
before installing products.
Follow all local electrical codes during installation. All wiring
must conform to local and national electrical codes.
Installation should be performed by a qualified individual
with sufficient experience and skill.
Use cautions when mounting components to surfaces that
may have concealed wiring beneath the surface.
When servicing WHF controls, turn off all power to these
items.
Step 1. Install FC3J in Junction Box on Fan
Wire the FC3J to the fan using the diagram below as a guide. If
the FC3J fan control is already installed on the fan, go to Step 2.
See FC3J Wiring Diagrams on pages 3-4 for wiring to
fans manufactured by QC Manufacturing.
Low Speed
LS
Medium Speed
MS
High Speed
HS
120VAC Power
120
VAC
NTL
Neutral
Unused wires should be cut at the
!
PCB or capped with wire nuts.
Use the screws included to secure the
FC3J to the junction box on the fan
making sure there are no exposed
wires and the fan control is securely
inside the electrical box. Failure to do
so could result in electrical shock.
WHF
Whole House Fan Wall Control
Connect to FAN Low
Speed Wire
Connect to FAN Medium
Speed Wire
Connect to FAN High
Speed Wire
Connect to POWER
120VAC Wire
Connect to FAN Neutral
Wire and to POWER
120VAC Neutral Wire
INSTALLER MANUAL
WHF
Smart
Indoors
Cool Set To
SPEED
H ON
SPEED
MODE
ON/OFF
Step 2. Connect Cable to the FC3J
Connect one end of the "RED" Plug&Play cable into the FC3J
fan control already installed on the junction box on the fan.
Feed this end
to the gang box
Step 3. Install a Plastic Retrofit Gang Box
The WTT is installed in a plastic retrofit
single gang box in the sleeping space on a
wall about 5' off the floor in a location that
will best sense the temperature for the
space. Do not install in a location where
the temperature will be influenced such as
in direct sunlight, on an exterior wall, etc.
Do not install WTT in a metal gang box.
Model WTTK
Jan 2020
Model FC3J
For 1, 2 or 3-Speed PSC or ECM Fans
WARNING 120VAC.
Wiring Key
Disconnect all power
Violet-High Speed
before wiring or
Yellow-Med Speed
servicing.
Red-Low Speed
Black-120VAC
White-Neutral
Laguna Hills, CA
eControls eControls
eControlsUSA.com
Insert into FC3J
already installed
on fan.
