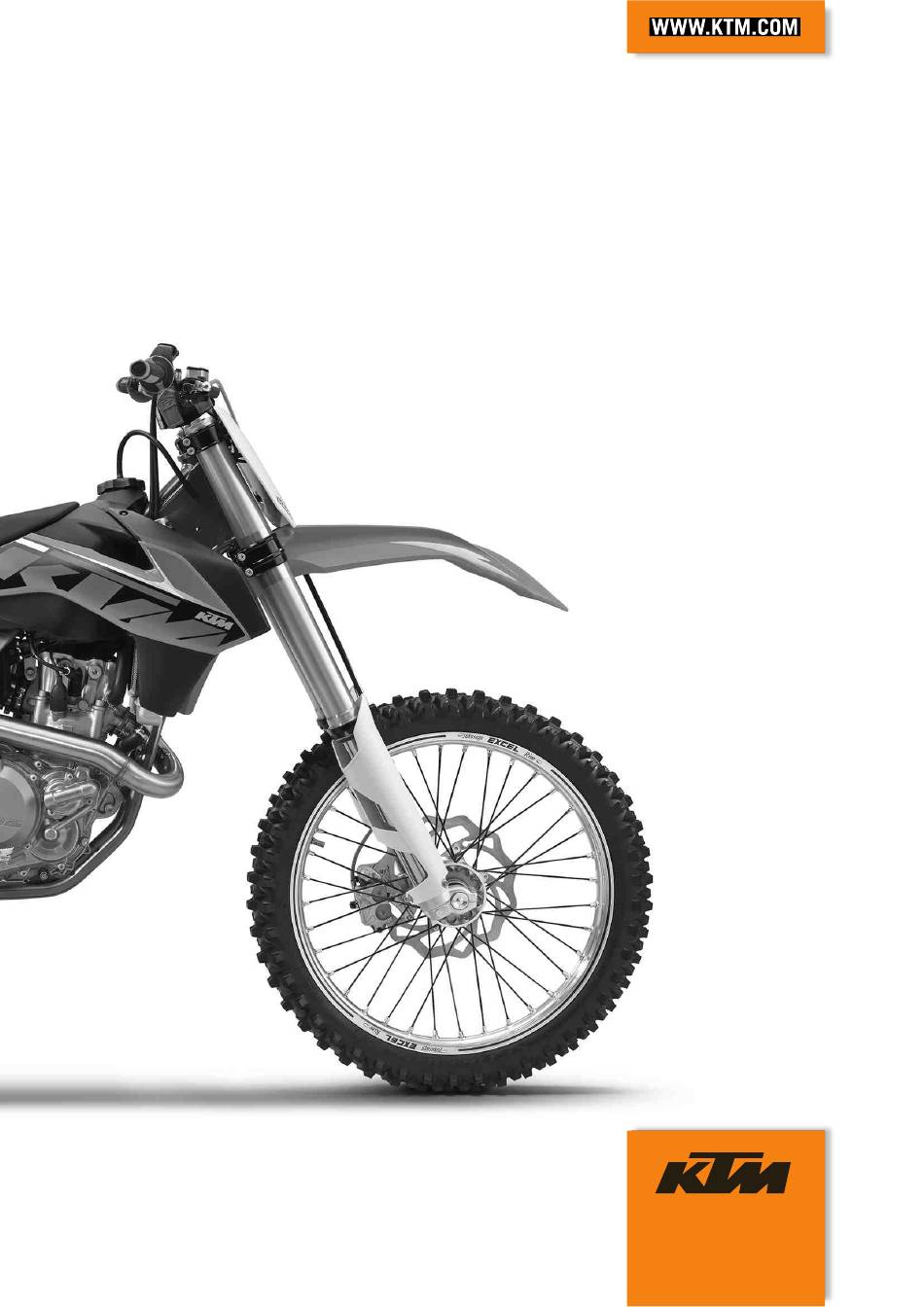

- Page 1 SETUP INSTRUCTIONS 2014 450 SX‑F EU 450 SX‑F USA 450 XC-F USA Art. no. 3213128en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 SETUP Unpacking and setting up the vehicle Packaging 2 – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished. – Remove the separate enclosure and unpack it. Check that the scope of supply is complete on the basis of the enclosed packing list.
- Page 6 SETUP – Position FI warning lamp with holder . Mount and tighten screw. Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) – Attach connector to the wiring harness. – Mount cable holder to the frame. B00534-10 – Route the clutch line with the clutch master cylinder toward the front between the upper and lower triple clamps.
- Page 7 Apply the label included in the delivery (optional). – Refuel. ( p. 11) – Position all controls in their exact positions on the handlebar. Tighten all screws. – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection.
- Page 8 WORK Raising the motorcycle with the lift stand Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. (All SX‑F models) – Raise the motorcycle at the frame underneath the engine. The wheels must no longer touch the ground.
- Page 9 WORK Installing the front wheel Warning Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs. – Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary. – Check the wheel bearing for damage and wear.
-
Page 10: Installing The Battery
WORK Installing the start number plate – Position the start number plate. Mount and tighten screw Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) The holding lugs engage. – Position the brake line and clamp. Mount and tighten screw C00418-10 Removing the seat –... - Page 11 – Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
- Page 12 WORK 3.10 Opening the filler cap Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
- Page 13 WORK 3.12 Refueling Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
-
Page 14: Technical Data - Tightening Torques For Chassis
TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – EJOT PT ® Screw, air filter box lid K60x20-Z 3 Nm (2.2 lbf ft) – Screw, pressure regulator EJOT PT ® 3 Nm (2.2 lbf ft) – Spoke nipple, front wheel M4.5 5…... - Page 15 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) According to – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
-
Page 16: Auxiliary Substances
AUXILIARY SUBSTANCES Long-life grease Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Bike Grease 2000... - Page 17 *3213128en* 3213128en 08/2013 KTM-Sportmotorcycle AG 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
