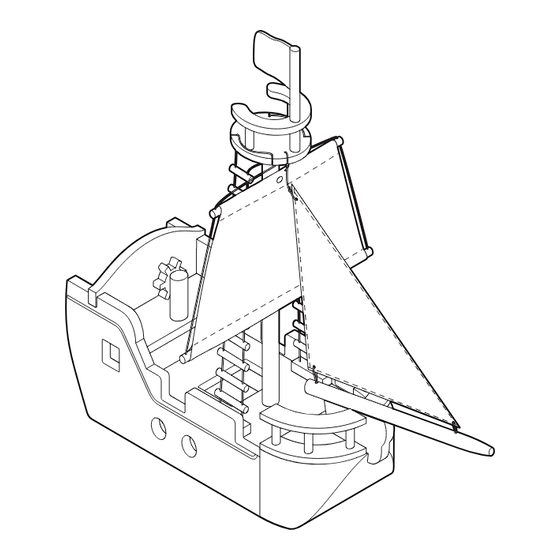

Wooden pirate ship
Assembly Guide
IMPORTANT: RETAIN FOR FUTURE REFERENCE
WARNINGS:
• IMPORTANT SAFETY INSTRUCTIONS
• PLEASE READ ALL INSTRUCTIONS CAREFULLY
BEFORE USE AND RETAIN FOR FUTURE
REFERENCE.
• Adult assembly required.
• The hardware contains small screws with sharp points.
Keep unassembled parts out of the reach of small
children.
• WARNING! Not suitable for children under the age of 36
months. Components of this product may break off into
small parts presenting a choking hazard.
• Choking hazard: Unassembled parts may be a choking
hazard to children 3 years and younger.
• WARNING: Long cord, strangulation hazard. Keep long
cords away from babies and young children.
Getting started...
1. Unpack the
2. Place the
components
components on
and check
a clean surface
against the list
to prevent them
below.
from being
damaged.
You will have...
A x1
G x1
B x1
H x1
C x1
I x1
D x1
J x1
E x1
K x2
F x1
L x1
Step 1
3. After you have
Slot the back of
assembled your
the ship (A) onto
toy, dispose of
the main body
all packaging.
(B) of the pirate
ship as shown.
Step 2
Slot the stud on
the bottom of
the ships wheel
(C) into the hole
in the upper
deck of the ship
as shown.
Step 3
Slot the
mounting
block (D) onto
the front of the
ship.
A
B
C
D
