RedSeven Amplification DOUBLE STEREO LINE MIXER User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
DOUBLE stereo LINE MIXER
D O U B L E
S T E R E O
L I N E M I X E R
TRANSFORMER ISOLATED
model: DSLM
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DOUBLE STEREO LINE MIXER and is the answer not in the manual?

Questions and answers

Related Manuals for RedSeven Amplification DOUBLE STEREO LINE MIXER

Summary of Contents for RedSeven Amplification DOUBLE STEREO LINE MIXER

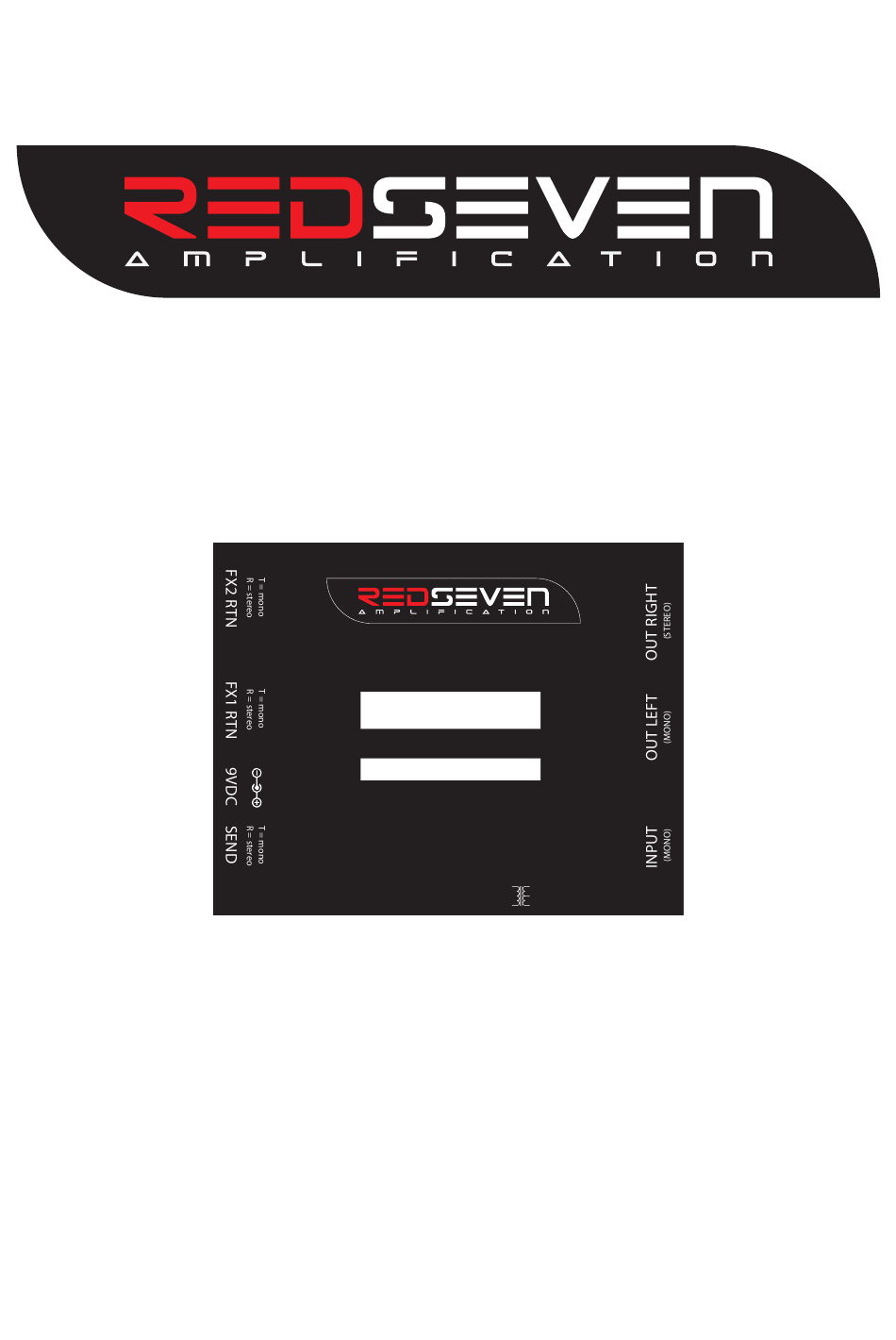

  • Page 1 DOUBLE stereo LINE MIXER D O U B L E S T E R E O L I N E M I X E R TRANSFORMER ISOLATED model: DSLM User Manual...

  • Page 2: Table Of Contents

    INDIEX INTRODUCTION pg 3 POWER SUPPLY !! WARNING !! pg 3 TECHNICAL FEATURES pg 4 CONNECTION EXAMPLES pg 6 TROUBLESHOTTING pg 11 WARRANTY pg 11...

  • Page 3: Introduction

    INTRODUCTION Double Stereo Line Mixer is a line level professional device for parallel processing, with a fixed mix of 50/50 (dry/wet). Thought as the ultimate and most compact solution in the business to mix up to two stereo returns with incoming dry signal into a single stereo output.

  • Page 4: Technical Features

    TECHNICAL FEATURES D O U B L E S T E R E O L I N E M I X E R TRANSFORMER ISOLATED (right side) • INPUT (mono): this is the main input of the mixer, mono. • OUT LEFT (mono): left output of the system. If only the left output is used (right output is not plugged in) the mixer will sum right and left into this output).
  • Page 5 using a stereo output from your effect you must use a Y cable to accommodate left and right signal into FX2 RETURN jack...

  • Page 6: Connection Examples

    CONNECTION EXAMPLES Example 1 - One mono effect with a mono guitar amplifier. Signal comes from amp’s loop fx send (INPUT), one copy is sent to external effect input (SEND) then the output of external effect is sent back to FX1 RETURN. OUT LEFT is routed back into amp’s loop fx RETURN.
  • Page 7 Example 2 - Two mono effects with a mono guitar amplifier. Signal comes from amp’s loop fx send (INPUT), first copy is sent to external effect input 1, second copy is sent to external effect input 2 with a Y CABLE (SEND). The output of external effect 1 is sent to FX1 RETURN, output of external effect 2 is sent to FX2 RETURN.
  • Page 8 Example 3 - Two mono effects with two guitar amplifiers (or stereo power amplifier). Signal comes from amp’s loop fx send (INPUT), first copy is sent to external effect input 1, second copy is sent to external effect input 2 with a Y CABLE (SEND). The output of external effect 1 is sent to FX1 RETURN, output of external effect 2 is sent to FX2 RETURN.
  • Page 9 Example 4 - One stereo effect with two guitar amplifiers (or stereo power amplifier). Signal comes from amp’s loop fx send (INPUT), first copy is sent to left side of effect input , second copy is sent to right side of effect input with a Y CABLE (SEND). Left output of external effect is sent to FX1 RETURN (tip), right output of external effect is sent to FX1 RETURN (ring) with a Y CABLE.
  • Page 10 Example 5 - Two stereo effects with two guitar amplifiers (or stereo power amplifier). Signal comes from amp’s loop fx send (INPUT), first copy is sent to external effect input 1, second copy is sent to external effect input 2 with a Y CABLE (SEND). Left output of external effect 1 is sent to FX1 RETURN (tip), right output of external effect 1 is sent to FX1 RETURN (ring) with an Y CABLE.

  • Page 11: Troubleshotting

    Amplification offer a standard two year fully warranty for any component (except to wear subjects). By removing the amplifier form his wood cabinet or by making any modification to the original state will violate standard warranty and RedSeven Amplification will not responsible for any damage to people, things or animals.
  • Page 12 Revision 1.0 September 2019...

This manual is also suitable for:

Dslm
