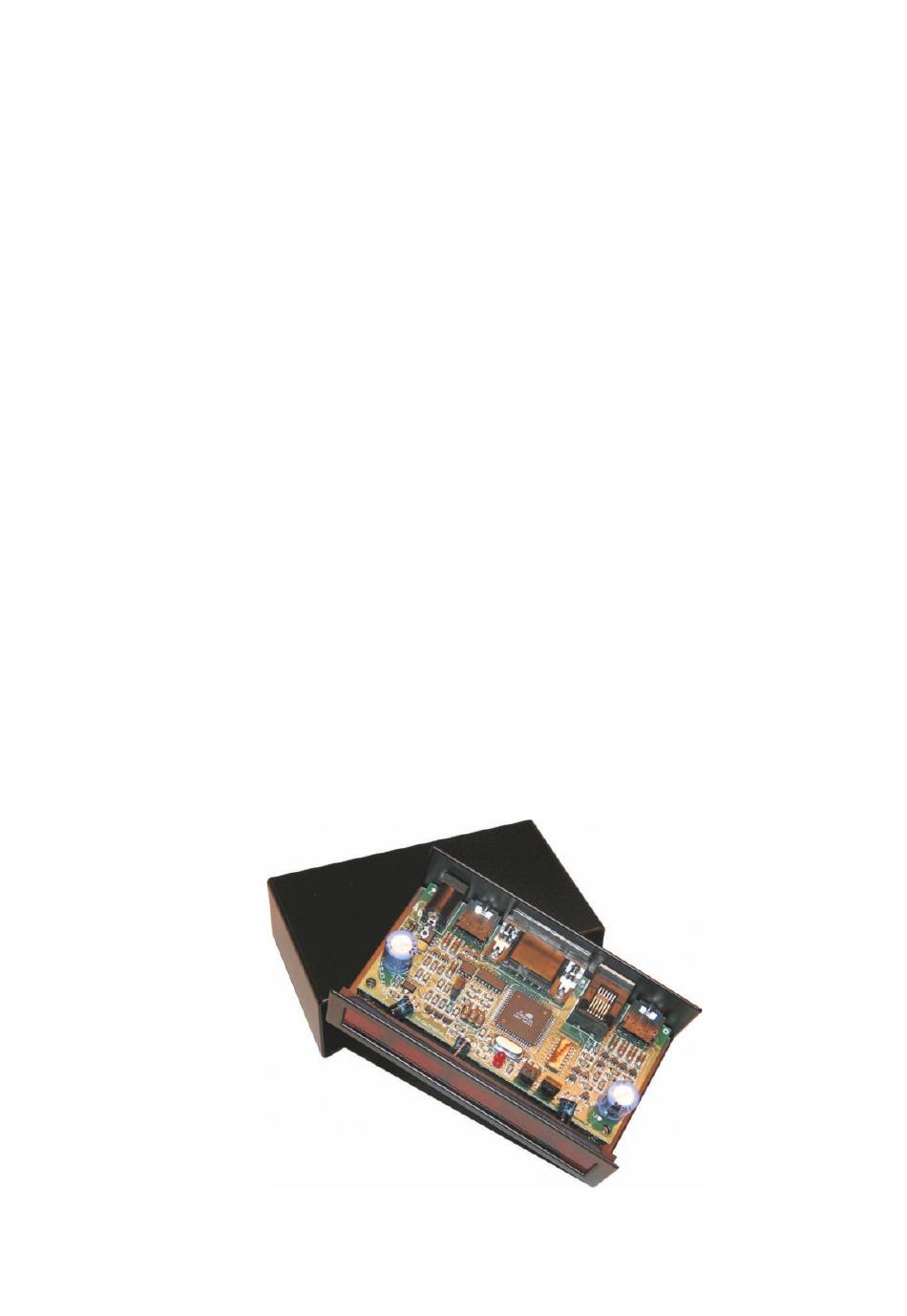

- Page 1 LinTronic h t t p : / / w w w . l i n t r o n i c . d k TableTop series Hardware version 5 Receives, Transmits and Converts InfraRed, RadioFrequency RS232, RS485, X10 IR-Tx IR-Tx...
- Page 2 LinTronic h t t p : / / w w w . l i n t r o n i c . d k InfraRed receiver and transmitter in the front Input Communication Output Power 3.5 mm jack connector: Ext. Data input: InfraRed, RF, etc.
- Page 3 LinTronic h t t p : / / w w w . l i n t r o n i c . d k InfraRed receiver and transmitter in the front Input Input Communication Communication Output Power Output Power Input...
- Page 4 LinTronic h t t p : / / w w w . l i n t r o n i c . d k Circuit boards dimensions 3 mm 3 mm 93 mm Updated: 090413...
- Page 5 LinTronic h t t p : / / w w w . l i n t r o n i c . d k Switchblock and jumpers InfraRed Receivers 36-40 KHz 455 Khz X10 port RS232 RS485 * = Factory default...
- Page 6 LinTronic h t t p : / / w w w . l i n t r o n i c . d k InfraRed receiver and transmitter in the front Optional Optional External receiver External transmitter RadioFrequency or InfraRed...
-
Page 7: External Receiver
LinTronic h t t p : / / w w w . l i n t r o n i c . d k External Receiver B&O 8087030 455 KHz 1 - C Ground 2 - A 5 volt Jack connector seen... - Page 8 LinTronic h t t p : / / w w w . l i n t r o n i c . d k External low-power output TableTop Transmitter or Converter TT-IR-ET03 Input Communication Output Power If you want test the Low Power External IR Output, you can connect a normal visible LED to a mono 3.5 mm jack connector and insert it the External IR Output.
- Page 9 LinTronic h t t p : / / w w w . l i n t r o n i c . d k Digital Inputs 5 = Ground 1 = Digital input 1 4 = Digital input 2 Digital Input 1...
-
Page 10: Digital Outputs
LinTronic h t t p : / / w w w . l i n t r o n i c . d k Digital Outputs 5 = Ground 6 = Digital output 1 9 = Digital output 2 12 volt... - Page 11 Output 1 Output 2...
- Page 12 LinTronic h t t p : / / w w w . l i n t r o n i c . d k Hidden installations and MultiRoomControl BeoRepeater See website. TT-IR-8087030 TT-IR-1455 ROOM B ROOM A Updated: 090413...
