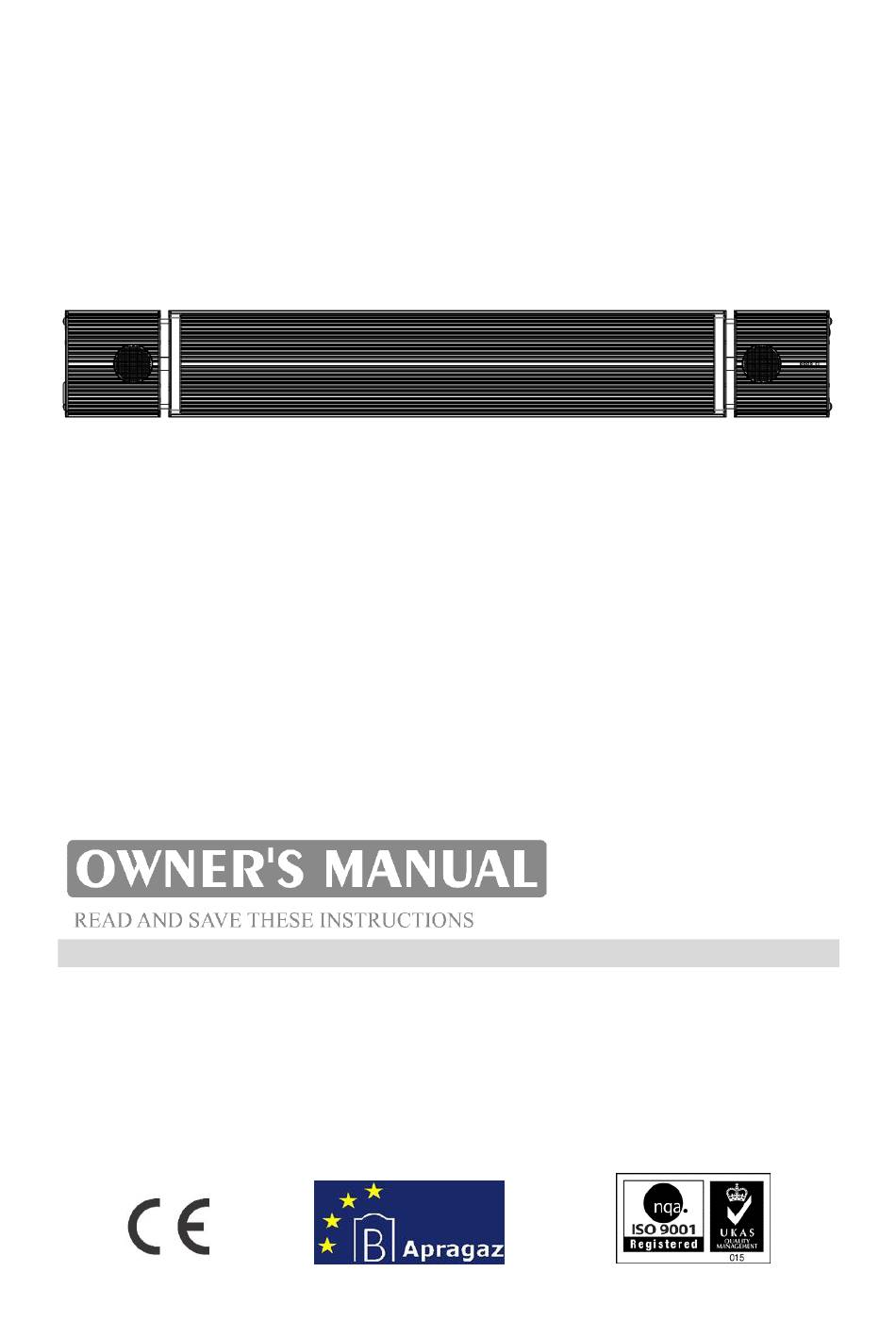

Models: HEATER-13C SERIES
Read instructions carefully before setting up and operating the unit.
This manual is designed to provide you with important information needed to setup,
operate, maintain, and troubleshoot your heater.
Due to continuous research and development the specifications herein are subject
to change without notice.
Advertisement
Table of Contents
Related Manuals for JH 13C Series
Summary of Contents for JH 13C Series
- Page 1 Models: HEATER-13C SERIES Read instructions carefully before setting up and operating the unit. This manual is designed to provide you with important information needed to setup, operate, maintain, and troubleshoot your heater. Due to continuous research and development the specifications herein are subject...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FOREWORD ....................... 3 2. PRINCIPLE OF WORK ..................... 3 3. PERFORMANCE FEATURES ................. 3 4. WORKING CONDITION ................... 4 5. INSTALLATION REQUIREMENTS ................. 4 6. INSTALLATION INSTRUCTION ................5 7. INSTALLATION DIAGRAM ..................7 8. MANUAL FOR REMOTE ..................8 9. -
Page 3: Foreword
FOREWORD Thank you for your trust and support in choosing the Radiant Heater, please read the instructions carefully before operating product. PRINCIPLE OF WORK Far-infrared radiant heater is produced by unique design and manufacturing technique. Adopted special aluminum alloy radiation panel, surface of panel process with special coating, inside of panel embed with heating element, heating element generate and transfer heat to people and objects after power. -
Page 4: Working Condition
Electrical Parameters Rated Cable Model No. Power(W) Voltage(V) Current(A) length(mm) JH-NR10-13C 1000 220-240 2000 JH-NR18-13C 1800 220-240 2000 JH-NR24-13C 2400 10.4... -
Page 5: Installation Instruction
INSTALLATION INSTRUCTION Model No. Dimension A(mm) Dimension B(mm) JH-NR10-13C 1375 JH-NR18-13C 1875 1200 JH-NR24-13C 2375 1700 JH-NR32-13C Page | 5... - Page 6 Step 1：Installation of adjusting bracket & sliding bracket. Step 2：Installation of sliding bracket & heater, as arrow points. Page | 6...
-
Page 7: Installation Diagram
Step 3：Fix adjusting bracket into the wall by expansion screws.Installation of two adjusting brackets; make sure lock brackets tight by butterfly hand screw. INSTALLATION DIAGRAM Page | 7... -
Page 8: Manual For Remote
MANUAL FOR REMOTE Page | 8... - Page 9 On&off button Turn on&off the heater Power button： Running power between: 25%-50%-75%-100% Clock button： Control heater turn off in setting hours：normal→ 2 hours→4 hours→8 hour Heater LED indicate manual AS aboved pic shows: There are 4 indicate lights in the temperature controller parts, these 4 indicate lights are used to indicate machine's running level.
- Page 10 The Bluetooth speaker is turned on when the heater is powered on, speaker will enter pairing mode, then access the Bluetooth functionality on your device(such as mobile phone ,laptop, PDA etc.); Search for the device JH-HEATER- SPEAKER; When found, select and pair your device.
-
Page 11: Inspection Items After Installation
Bluetooth working status indicator: The green light is flashing: Bluetooth speaker is connected. Red-Green light is flashing: Bluetooth speaker waiting for connection. Note: 1. The speaker do not support phone hands-free function 2.Due to the 2.4G radio interference, if the speaker does not match or play the music well, turn off the heater and re-power the heater. -
Page 12: Safety Precautions
SAFETY PRECAUTIONS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. -
Page 13: Packing List
Heater Adjusting bracket Sliding bracket Fastener 1set Owner manual 1copy Certification SPECIFICATIONS Package N.W. G.W. Model No. Dimension(mm) size(mm) (kg) (kg) JH-NR10-13C 975*189*67 1070*250*150 JH-NR18-13C 1375*189*67 1470*250*150 11.3 JH-NR24-13C 1875*189*67 1970*245*145 12.3 14.5 JH-NR32-13C 2375*189*67 2470*245*145 15.1 17.5 Bluetooth Speaker Technical Parameter:... - Page 14 CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
