P700WLS ioProx Receiver
Installation Manual
DN1628-0806

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ioProx Receiver P700WLS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kantech ioProx Receiver P700WLS

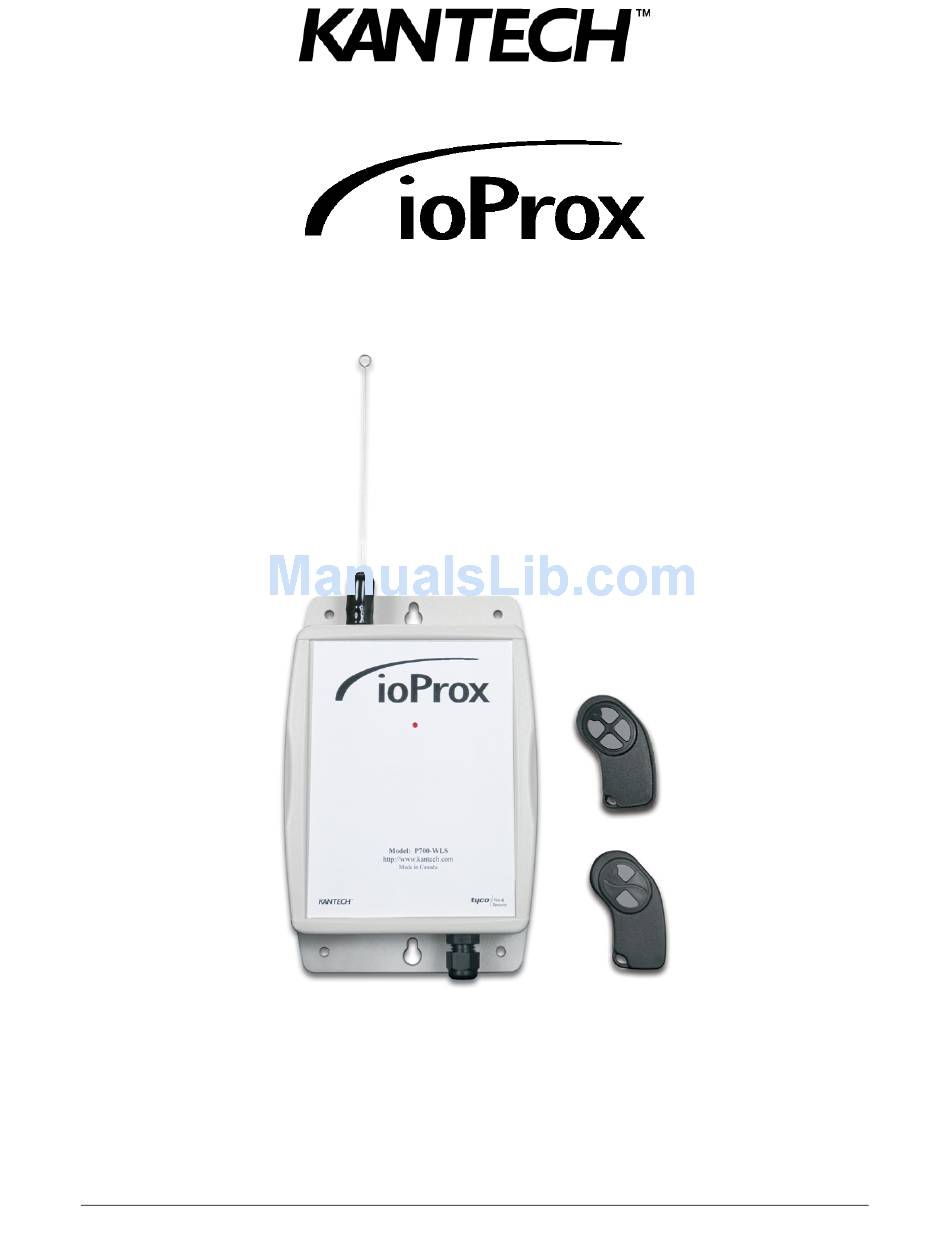

  • Page 1 P700WLS ioProx Receiver Installation Manual DN1628-0806...
  • Page 2 The entire manual should be carefully read. © 2008 Tyco International Ltd. and its Respective Companies. All Rights Reserved. All specifications were current as of publication date and are subject to change without notice.
  • Page 3: Table Of Contents

    Installation Manual Table of Contents System Overview ...1 Inventory Technical Specifications ...2 Installing the P700WLS ioProx Receiver ...3 Global Coverage ... 3 Power Supply and Grounding... 3 Recommended Wiring Distance at 12 Vdc... 3 Data Path Selector Settings ... 4 Receiver Terminal Block Location...
  • Page 4 P700WLS ioProx Receiver Installation Manual DN1628-0806...
  • Page 5: System Overview

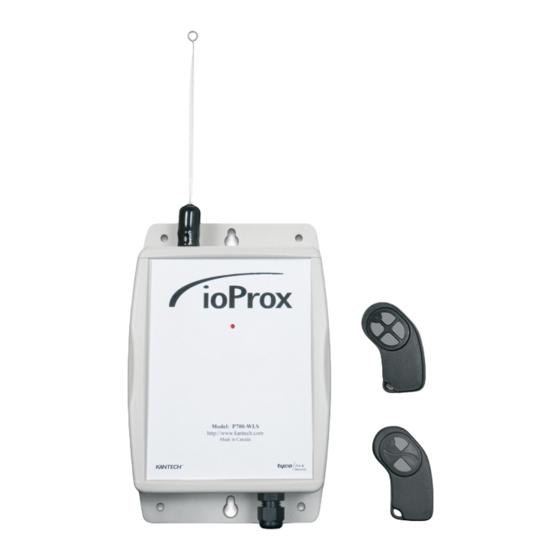

    Installation Manual System Overview The P700WLS ioProx receiver unit is designed to interface with an access control panel card reader port using the Wiegand protocol or the Kantech eXtended Secure Format (XSF). The ioProx receiver can read from a distance of up to 45.72 m. (150 ft.) with a power dipole antenna or 30.48 m. (100 ft.) with a standard antenna.
  • Page 6: Technical Specifications

    Installation Manual Technical Specifications P700WLS ioProx Receiver 12-24 VDC Power: 50mA (stand-by) 100mA Current: (peak) XSF or 26-bit Wiegand Output: selectable -30°C to 68°C Operating temperature: (-22°F to 155°F) Dimensions (HWD) cm: 19.21 x 13.02 x 4.14 Dimensions (HWD) in: 7.56 x 5.13 x 1.63 Polycarbonate (HB) with UV stabilizer, weather-resistant,...
  • Page 7: Installing The P700Wls Ioprox Receiver

    Installation Manual Installing the P700WLS ioProx Receiver Global Coverage When global coverage of a large area is required, there should be a sufficient number of receivers to give overlapping coverage of receiving patterns. Use the SW terminals if the receiver antennas are less than 30.5 m (100 ft) apart.
  • Page 8: Data Path Selector Settings

    Installation Manual Data Path Selector Settings The receiver unit provides for field selectable pins JP2 located near the center of the board (Figure 1) Receiver Terminal Block Location The receiver terminal block is removable. (Refer Figure 1) It can be mounted vertically or horizontally. Connect 22 to 14 AWG wires to the blue terminal block.
  • Page 9: S1 Receiver Configuration

    Installation Manual S1 Receiver Configuration Placing the DIP switches in the ON or OFF position determines which specific button on the multi-button transmitter will activate the receiver and Wiegand format to be transmitted to the control panel. (See Table 1 below) Data Path Selector Settings: Kantech XSF (default): Position 4 (ON).
  • Page 10: Receiver Wiring Diagrams

    P700WLS ioProx Receiver Installation Manual Receiver Wiring Diagrams Figure 2 Typical Installation and Two Receivers Connected to One Port Installations DN1628-0806...
  • Page 11: Testing The Receivers

    Installation Manual Testing the Receivers PCB LED Indicators All LEDs are located on the PC board, inside the box. Flashes if the transmitter encryption code does not match the receiver configuration, and will not operate the receiver. Check that the transmitters are programmed to operate with this receiver.
  • Page 12: Receiver Relay

    Installation Manual Receiver Relay The receiver relay activates for one second when a valid button on the transmitter triggers the receiver. The relay on the receiver can be used for testing purposes by adding an audible or visual device to confirm the receiver is receiving the signal consistently from the desired location of the transmitters.
  • Page 13: Testing The Transmitters

    Installation Manual Testing the Transmitters Operating Instructions The following instructions can be used for both models (2 or 4 buttons) 1. On the key tag transmitter, press for one (1) second the button you programmed earlier to activate the receiver. A red indicator light will flash for the duration of the transmission.
