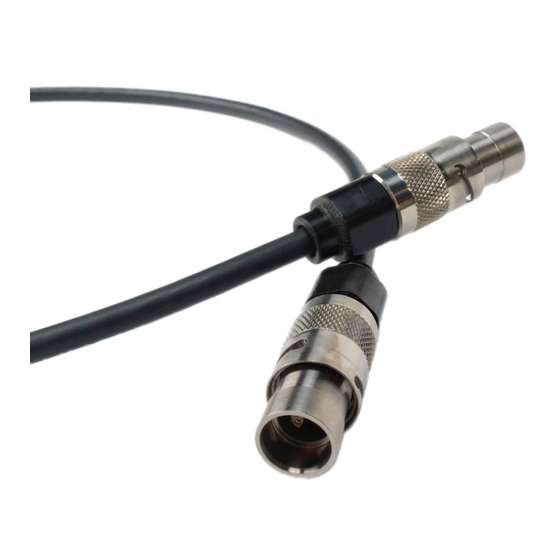

In-situ RuggedCable Information Sheet

ALWAYS REMEMBER!
• Before using your cables, make
sure that the connector end of your
instrument has a greased o-ring that
is in good condition (not cracked or
sheared).
• Before using your cables, make
sure that each cable end contains
a gasket. This ensures a secure
connection with the instrument.
• Cables can be sheared off by heavy
machinery or the careless use of
cutting tools. Pay attention!

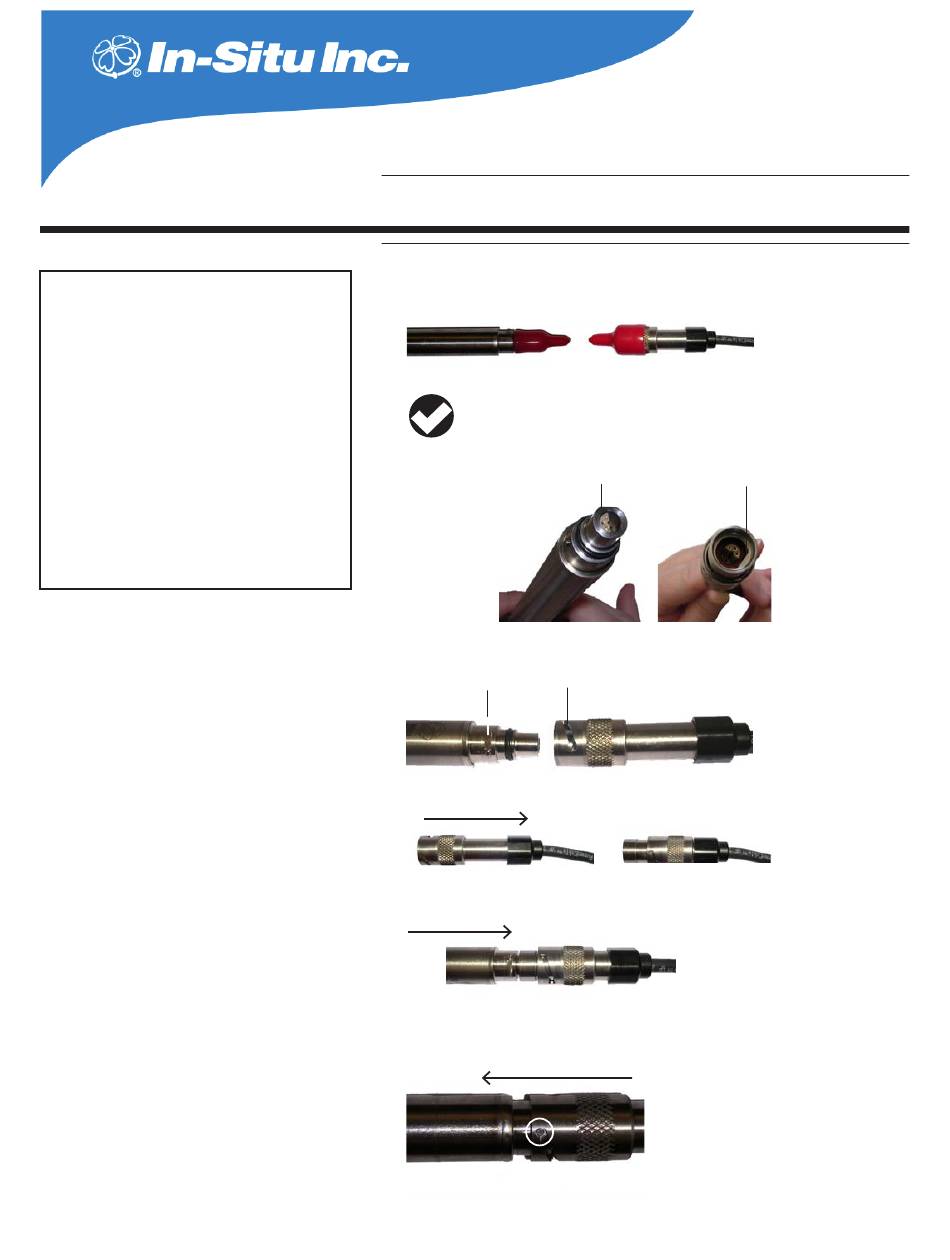

Using the RuggedCable
TwiST -LoCk CabLe ConneCTionS
1. Remove the protective caps from the instrument connector end and cable
connector end.
Instrument connector end
TIP: Retain the dust caps to protect the pins and o-ring from damage when cable is
not attached.
2. Take a moment to look at the connectors. Each has a flat side.
Instrument
Note the pins on the body connector (one on each side) and the slots on the
cable connector (one on each side).
pin
3. Slide back the sleeve on the cable connector.
4. Orient the "flats" so they will mate up, and insert the instrument connector firmly
into the cable connector.
Instrument
5. Slide the sleeve on the cable toward the instrument body until the pin on the
body pops into the round hole in the slot on the cable connector.
Instrument
TROLL
Information Sheet
Cable connector end
Flat
Flat
slot
Cable
Cable
® Accessories
System
®
Cable
