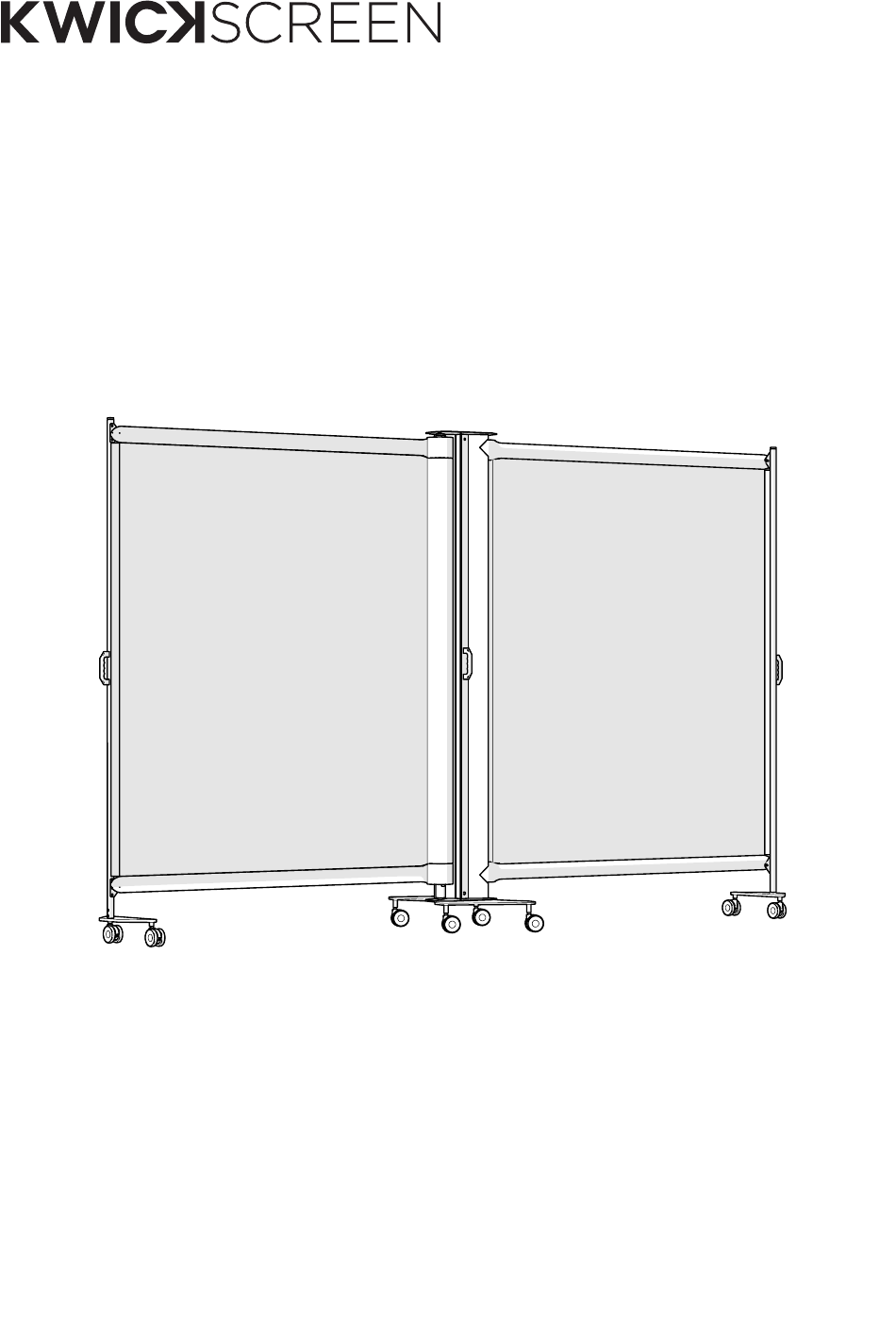

- Page 1 DUO USER MANUAL The most flexible space management solutions Portable, retractable, printable privacy screens; creating private and dignified spaces adaptable to multiple uses.
- Page 2 Make sure the front handles are vertical and that its wheels are all in contact with the floor. When moving the KwickScreen Duo check all four brakes have been released. The unit should then be moved using the main body base handles. Do not run when using a KwickScreen.
- Page 3 Thank you for choosing to purchase from KwickScreen. I hope that your new KwickScreen will help you make better use of your spaces and if you have chosen a printed screen, that you enjoy the benefits which the images can bring to your environment.
- Page 4 VIEW & DIMENSIONS Fully Assembled Weight: 24 kg Bases Weight: 5 kg Unit Weight: 19 kg 360mm/14.2in 590mm/24in 100mm/3.9in 6360mm/250in 1902mm/74.9in 219mm/8.6in 3110mm/122in 140mm/5.5in...
- Page 5 Please ensure all screws are tight after assembly. If you have any Main Body Base Front Handle Bases questions please contact us at: www.kwickscreen.com call us on: 020 845 25975 or email us: info@kwickscreen.com Braked Castors for Main Unbraked Castors for...
- Page 6 MAIN BASE ASSEMBLY You will need: Step 1 Insert castor pins and tighten very well Push wheels with brakes onto main body base Step 2...
- Page 7 HANDLE BASE ASSEMBLY Insert castor pins and tighten very well Step 1 You will need: Tighten very well...
- Page 8 Step 2 Push the wheels without brakes onto handle base, and repeat for other base. When repeated you will have two handles bases matching this...
- Page 9 ASSEMBLING BASES TO BODY Step 1 For this step you will need: Tighten screws very well M5 Cap Head Screw Make sure the flat side is against the body 3mm Allen Key...
- Page 10 Step 6 For this step you will need: There are two screws per base. M6 BTN Screw 4mm Allen Key Tighten screws very well...
- Page 11 Assembled Base...
- Page 12 Assembled Product...
- Page 13 REPLACING OR CHANGING THE INNER PANEL (2 person job) Extend unit fully (unit shown with screen panel removed) by applying all four brakes on the main body and pulling out the handle. To insert the inner panel, keeping it rolled up, and attach the zip in the top left corner.
- Page 14 Leave 50cm unzipped and thread the panel end around the plastic core. Carefully zip up the internal zip on the panel to secure it to the main body rotor and then zip the top zip to the end. Align the magnetic strip on the front handle front handle Close the bottom zip...
- Page 15 Hyplochlorite may also be used on the screen WHEN CLEANING THE material. Hypochlorite can be applied at 1000-10000 ppm or a 60% alcohol solution. KWICKSCREEN DO NOT USE: STUBBORN STAINS • Wax polishes or solvents If normal cleaning does not remove all stains •...
- Page 16 DAMAGE PROCEDURE If you do experience any problems or damage with your screen, please email us (with images if applicable) to info@kwickscreen.com. If you have any questions please contact us at: www.kwickscreen.com / info@kwickscreen.com You can call us on: 020 845 25975...
