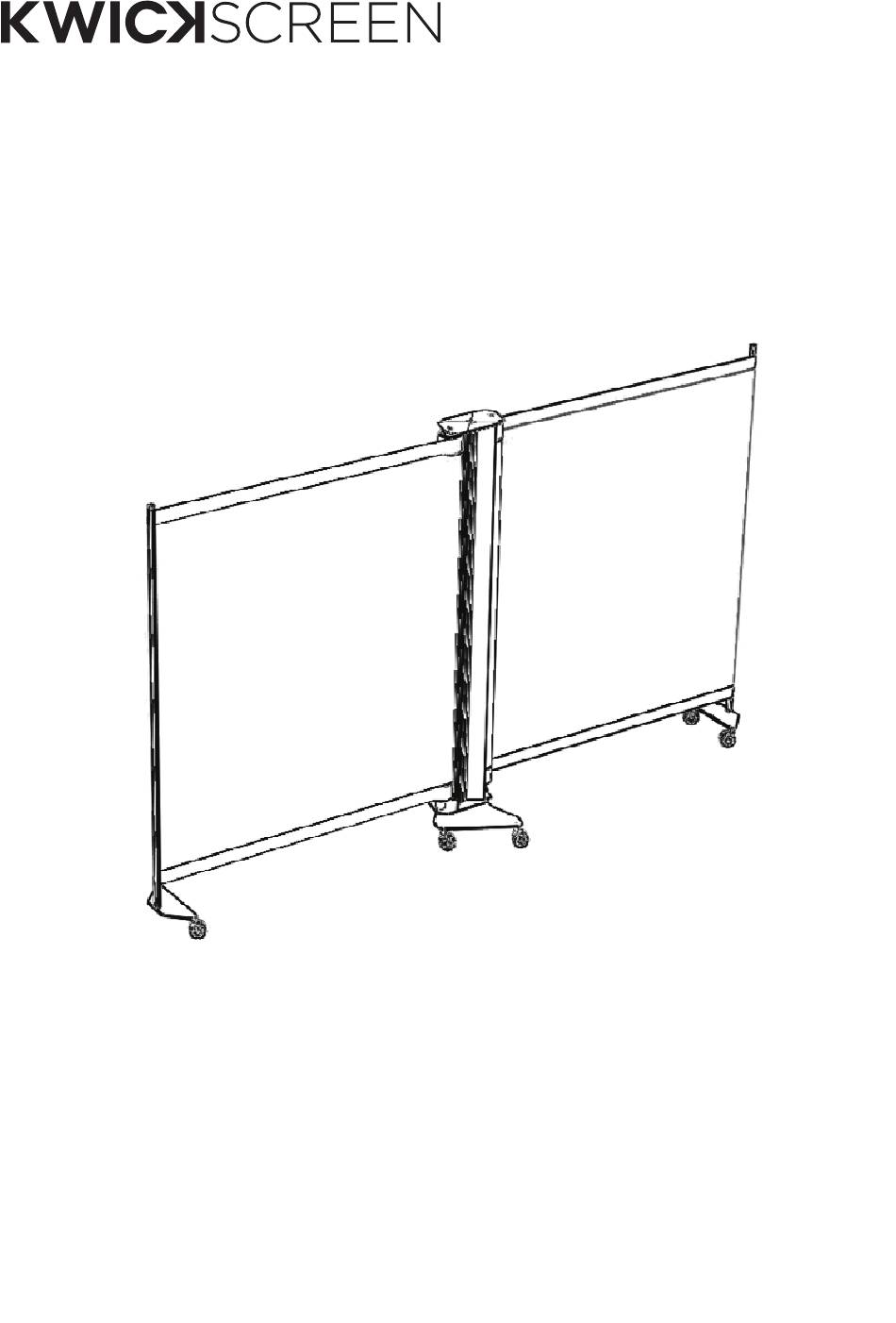

- Page 1 DUO USER MANUAL We transform spaces by making them flexible, enriching their beauty, functionality and efficiency with portable, retractable, printed partitions.
- Page 2 Please read all instructions in this user guide prior to installation and operation of your KwickScreen. For personal and operational safety use only parts approved by KwickScreen. Be gentle when pulling the KwickScreen out for use. Before installation ensure all parts are present, complete and without defects.
- Page 3 Thank you for choosing to purchase from KwickScreen. I hope that your new KwickScreen will help you make better use of your spaces and if you have chosen a printed screen, that you enjoy the benefits which the images can bring to your environment.
- Page 4 VIEW & DIMENSIONS Fully Assembled Weight: 29.5 kg / 65 lbs Handle Base Weight: 4.36 kg / 10 lbs Body Base Weight: 8.22 kg / 18 lbs 250mm 1900mm 1785mm 115mm 3000mm 6250mm...
- Page 5 REPLACING OR CHANGING THE INNER PANEL (2 person job) The images show a KwickScreen Pro, however the process is the same for the Duo. Repeat for both inner screens. Extend unit fully (unit shown with inner screen panel removed) by applying all 4 brakes on the main body and pulling out the handle.
- Page 6 Leave 50cm/20in unzipped and thread the panel end around main body the plastic core. Carefully zip up the internal zip on the panel to secure it to the rotor and then zip the top zip to the end. front handle Align the magnetic strip on the front handle Close the bottom zip...
- Page 7 ASSEMBLY GUIDE KWICKSCREEN DUO UNIT Please read the KwickScreen Duo main body with two inner screens following instructions. This is a two person job. Please ensure all screws are tight after assembly. If you have any main body base front handle bases...
- Page 8 Attach wheels to all three bases. Step 1 Tighten very well castor pin Push on the wheels with brakes onto main body base Step 2...
- Page 9 The Duo has two handle bases each with two wheels. Step 3 Tighten castor pin very well...
- Page 10 Step 4 Push on the wheels without brakes onto handle base, repeat for both bases. When repeated you will have two handles bases matching this...
- Page 11 Step 5 Make sure the flat side is against the body Tighten screws very well M5 cap head screw 3mm hex key...
- Page 12 Step 6 One screw per base M6 cap head screw 4mm hex key Tighten screws very well...
- Page 13 Assembled product...
- Page 14 Hyplochlorite may also be used on the screen WHEN CLEANING THE material. Hypochlorite can be applied at 1000-10000 ppm or a 60% alcohol solution. KWICKSCREEN DO NOT USE: STUBBORN STAINS • Wax polishes or solvents If normal cleaning does not remove all stains •...
- Page 15 KwickScreens are designed for use on smooth, horizontal surfaces. Extra care should be taken when using on other surfaces. When moving the KwickScreen Duo check all four brakes have been released. The unit should then be moved using the base handles.
- Page 16 DAMAGE PROCEDURE If you do experience any problems or damage with your screen, please email us (with images if applicable) to info@kwickscreen.com. If you have any questions please contact us at: www.kwickscreen.com / info@kwickscreen.com UK customers US customers can call us on: +44 20 8452 5975...
