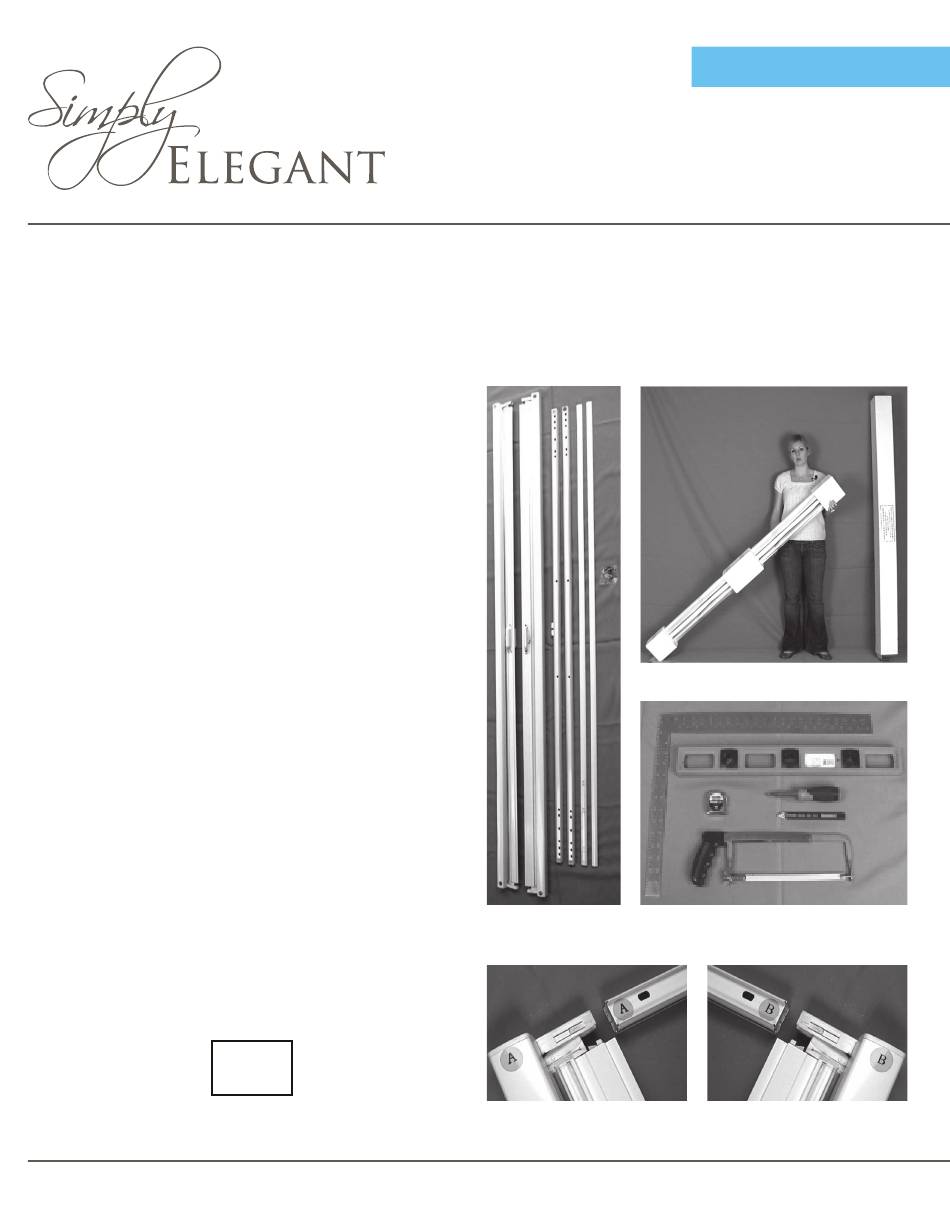

RETRACTABLE SCREEN ASSEMBLY AND INSTALLATION INSTRUCTIONS
PART REVIEW AND CHECK
Step 1: Verify that the following components are
included in the box. See No. 1a. Parts are listed from top
to bottom. See No. 1.
• Screen Housing marked A and D
• Screen Housing marked B and C
• Screen Track with white locking hardware in center
• Screen Track with black locking hardware in center
• Two Screen Track Covers
• Mounting screws for track
TOOLS REQUIRED
• Level
• Square
• Tape measure
• Screwdriver: flat head and Phillips head
• Pencil
• Hacksaw
LAYOUT
Step 2: Remove all of the above items from the box and
place on the floor in front of the French door where the
double screen is to be installed.
The screen housings and tracks should line up with their
corresponding letters in a clockwise fashion, as indicated
below: A to A, B to B, C to C and D to D. See No.2.
A to A
D to D
Outswing French Doors, Full Size and Retro Size (Full Size 6/0 can be cut to fit 5/4 and 5/0; Retro Size 6/0 can be cut to fit 5/10, 5/4 and 5/0)
www.simplyelegantproducts.com
(Page 1 of 4)
B to B
C to C
No. 1
No. 1A
No. 1B
No. 2
Retractable Screen
220-101
220-102
220-109
1
