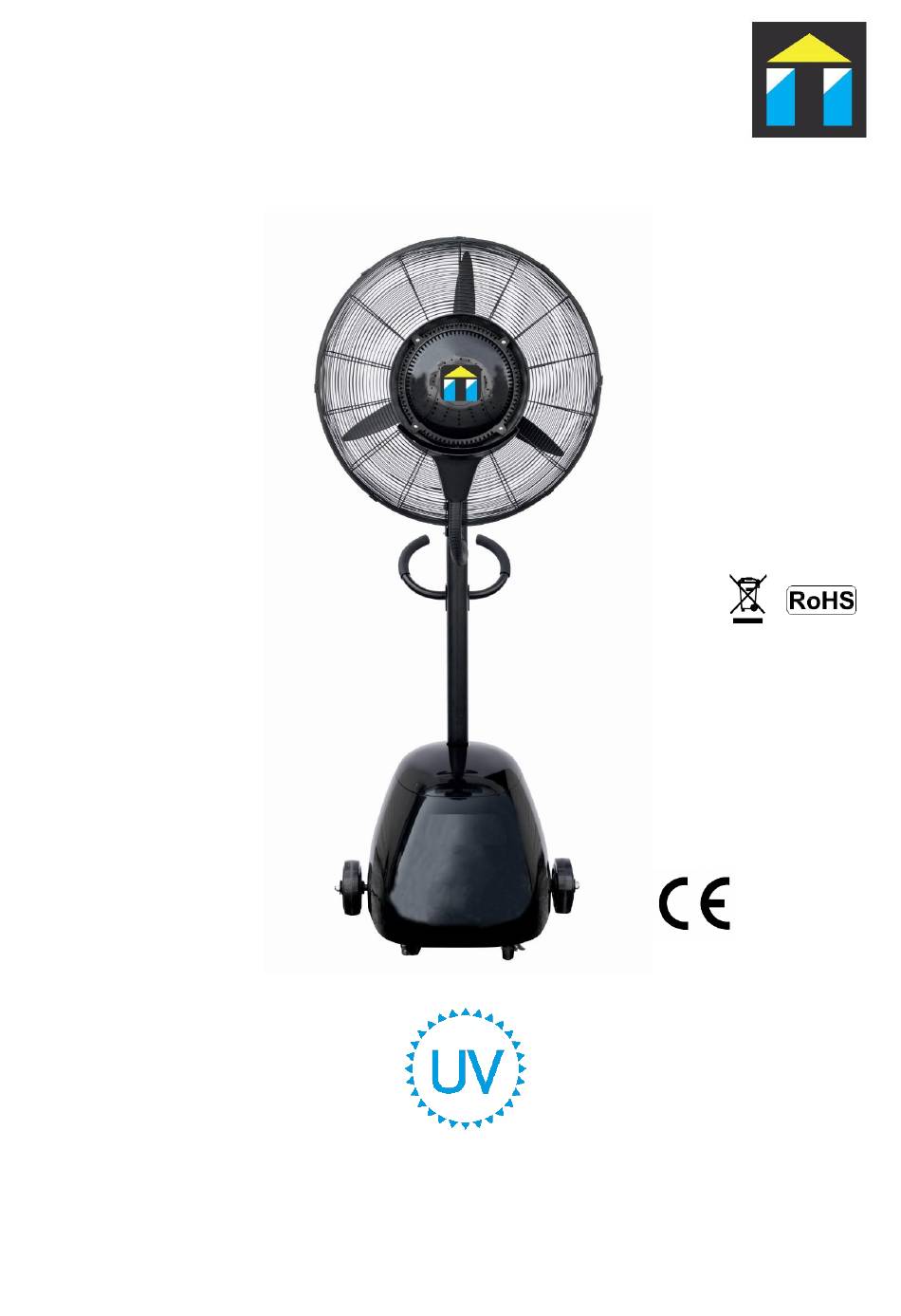

- Page 1 STAR BRUMA MISTING FAN NEW WITH UV DEVICE FOR WATER STERILIZATION...
- Page 2 Read the instructions contained in this booklet carefully before using this misting fan. Star Progetti cannot assume any responsibility for damage to property or personal injury resulting from failure to abide by the instructions given in this booklet. Following these instructions will ensure a long service life and overall electrical and mechanical reliability.
- Page 3 SCHEMA ELETTRICO / SCHÉMA ÉLECTRIQUE / WIRING DIAGRAM Thermal protector Primary winding Blue Secondary winding (Black) Speed adjust switch capacitor Low speed （ White ） White Purple Middle speed （ Blue ） Blue Misting switch High speed （ Yellow ） Purple Yellow Brown...
- Page 4 ENGLISH ANTIBACTERIAL UV WATER STERILISATION DEVICE The STAR BRUMA misting fan you have purchased has a distinctive feature to aid personal health. It is equipped with a UV lamp, located in the tank, to sterilise water and prevent the formation of bacteria (such as legionella, for instance) and mould.
-
Page 5: Maintenance
2. MAINTENANCE 1) Clean the fan periodically to keep it tidy and durable. 2) Cut off the power and make sure the blade stay still before cleaning, open the grill clips and loo se the screws, remove the front grill and blade, use a soft cloth and a mild soap to clean the fan's exterior. -
Page 6: Features And Applications
4. FEATURES AND APPLICATIONS 1) Use CAD optimized design with artistic looking. 2) The fan misting system adoptsthe centrifugal atomization optimized design, without nozzle and water filtration, reasonable structure, easy maintenance. 3) Fan surface is epoxy resin coated,anti-rust and durable.The fan has water proof electrical design, safety,with tank cart, easy to move. - Page 7 6) Speed adjustment: low speed, medium speed and high speed can be achieved by turning the switch knob on the motor. 7) If the machine is selected to operate by misting mode, its misting magnitude can be adjusted optionally between"OFF"and "ON". 8) The tank must be full filled with water before using the misting mode.
- Page 8 Step 2: Fan Head and Tubes Assembly Refer to diagram 2. Align the stand pole and the bottom of the fan head and connect the two pieces. Fasten the screw to secure the two pieces together. Insert the three-pin plug into U-groove hole in front of the stand pole. Plug the three-pin plug into the three-pin socket.
- Page 9 Step 3: Circuit and waterways connecting a. Refer to diagram 3. Plug the four-pin plug of power cord into four-pin socket on the lower part of the stand pole. And locate them into the stand pole after connection. b. Insert the blue tube and black tube into the round hole of the front cover. Insert the blue tube into the connector of the water pump.
- Page 10 Step 5: Misting Testing a. Full fill the water tank with clean water, and cover the tank lid. b. Keep the ball valve from "on " to "off ", and turn power on. Turn the switch knob, and check if the motor and blade operate normally. c.
- Page 11 Structure Diagram 1. safety cover 2. safety grill 17. oscillating structure 3. misting plate 18. tube connector for stand pole 4. water outlet 19. stand pole 5. whorl bent connector 20. handle 6. water receiving plate 21. ball valve 7. water receiving plate cover 22.
- Page 14 The eventual repairs recognized in guarantee will be carried out free of charge for those appliances returned free STAR PROGETTI’s factory or to one of the authorized distributor. All transport costs are to be paid by the customer.
