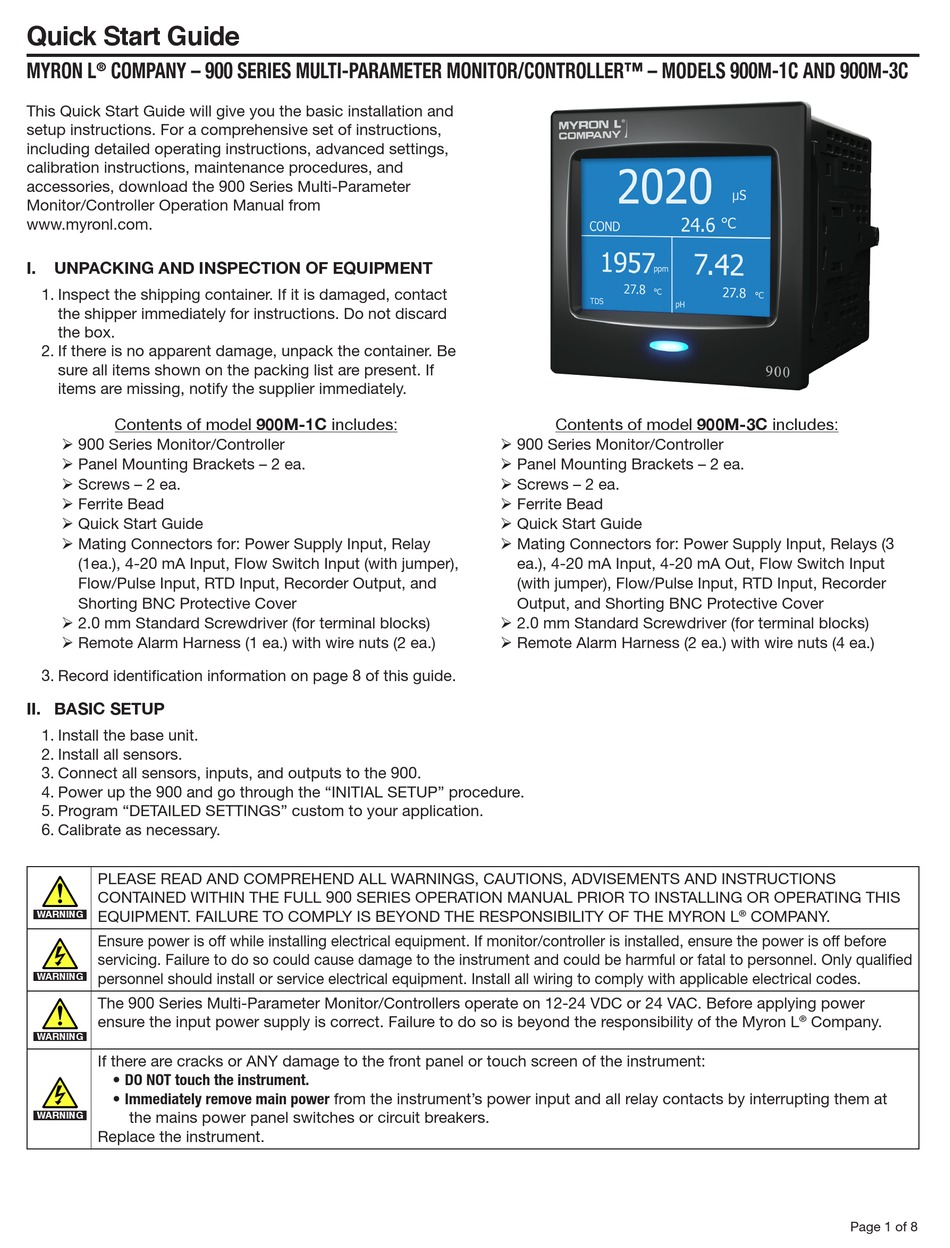

Quick Start Guide
MYRON L
COMPANY – 900 SERIES MULTI-PARAMETER MONITOR/CONTROLLER™ – MODELS 900M-1C AND 900M-3C
®
This Quick Start Guide will give you the basic installation and
setup instructions. For a comprehensive set of instructions,
including detailed operating instructions, advanced settings,
calibration instructions, maintenance procedures, and
accessories, download the 900 Series Multi-Parameter
Monitor/Controller Operation Manual from
www.myronl.com.
I.
UNPACKING AND INSPECTION OF EQUIPMENT
1. Inspect the shipping container. If it is damaged, contact
the shipper immediately for instructions. Do not discard
the box.
2. If there is no apparent damage, unpack the container. Be
sure all items shown on the packing list are present. If
items are missing, notify the supplier immediately.
Contents of model 900M-1C includes:
Ø 900 Series Monitor/Controller
Ø Panel Mounting Brackets – 2 ea.
Ø Screws – 2 ea.
Ø Ferrite Bead
Ø Quick Start Guide
Ø Mating Connectors for: Power Supply Input, Relay
(1ea.), 4-20 mA Input, Flow Switch Input (with jumper),
Flow/Pulse Input, RTD Input, Recorder Output, and
Shorting BNC Protective Cover
Ø 2.0 mm Standard Screwdriver (for terminal blocks)
Ø Remote Alarm Harness (1 ea.) with wire nuts (2 ea.)
3. Record identification information on page 8 of this guide.
II. BASIC SETUP
1. Install the base unit.
2. Install all sensors.
3. Connect all sensors, inputs, and outputs to the 900.
4. Power up the 900 and go through the "INITIAL SETUP" procedure.
5. Program "DETAILED SETTINGS" custom to your application.
6. Calibrate as necessary.
PLEASE READ AND COMPREHEND ALL WARNINGS, CAUTIONS, ADVISEMENTS AND INSTRUCTIONS
CONTAINED WITHIN THE FULL 900 SERIES OPERATION MANUAL PRIOR TO INSTALLING OR OPERATING THIS
WARNING
EQUIPMENT. FAILURE TO COMPLY IS BEYOND THE RESPONSIBILITY OF THE MYRON L
Ensure power is off while installing electrical equipment. If monitor/controller is installed, ensure the power is off before
servicing. Failure to do so could cause damage to the instrument and could be harmful or fatal to personnel. Only qualified
WARNING
personnel should install or service electrical equipment. Install all wiring to comply with applicable electrical codes.
The 900 Series Multi-Parameter Monitor/Controllers operate on 12-24 VDC or 24 VAC. Before applying power
ensure the input power supply is correct. Failure to do so is beyond the responsibility of the Myron L
WARNING
If there are cracks or ANY damage to the front panel or touch screen of the instrument:
• DO NOT touch the instrument.
• Immediately remove main power from the instrument's power input and all relay contacts by interrupting them at
WARNING
the mains power panel switches or circuit breakers.
Replace the instrument.
Contents of model 900M-3C includes:
Ø 900 Series Monitor/Controller
Ø Panel Mounting Brackets – 2 ea.
Ø Screws – 2 ea.
Ø Ferrite Bead
Ø Quick Start Guide
Ø Mating Connectors for: Power Supply Input, Relays (3
ea.), 4-20 mA Input, 4-20 mA Out, Flow Switch Input
(with jumper), Flow/Pulse Input, RTD Input, Recorder
Output, and Shorting BNC Protective Cover
Ø 2.0 mm Standard Screwdriver (for terminal blocks)
Ø Remote Alarm Harness (2 ea.) with wire nuts (4 ea.)
COMPANY.
®
Company.
®
Page 1 of 8
