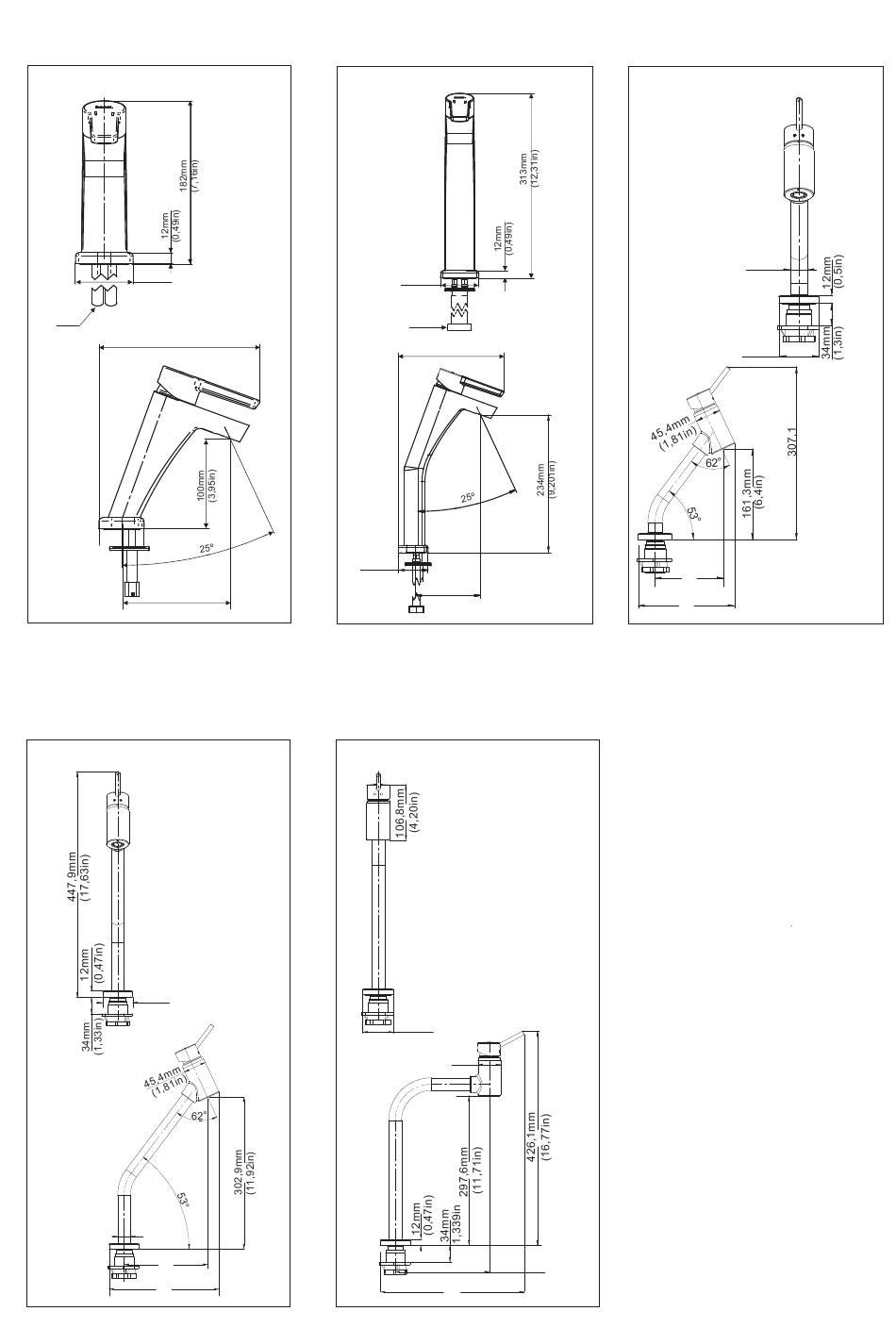

Dimensionais/ Dimensiones/ Dimensions
00493506 - Priori
64mm
(2,54in)
G1/2"
180mm
(7,08in)
00574606 - Loggica
60mm
(2,36in)
M 25x1
167,3mm
(6,58in)
219,1mm
(8,62in)
00532906 - Priori
64mm
(2,54in)
G1/2"
179mm
(7,06in)
50mm
(1,99in)
110mm
(4,33in)
00574706 - Loggica
60mm
(2,36in)
45,4mm
(1,78in)
187,6mm
(7,38in)
287,2mm
(11,30in)
00574006 - Loggica
25,4mm
(1,0in)
60mm
121,3mm
(4,8in)
171,3mm
(6,7in)
