.T
B
.
WWW
URTLE
EACH
COM

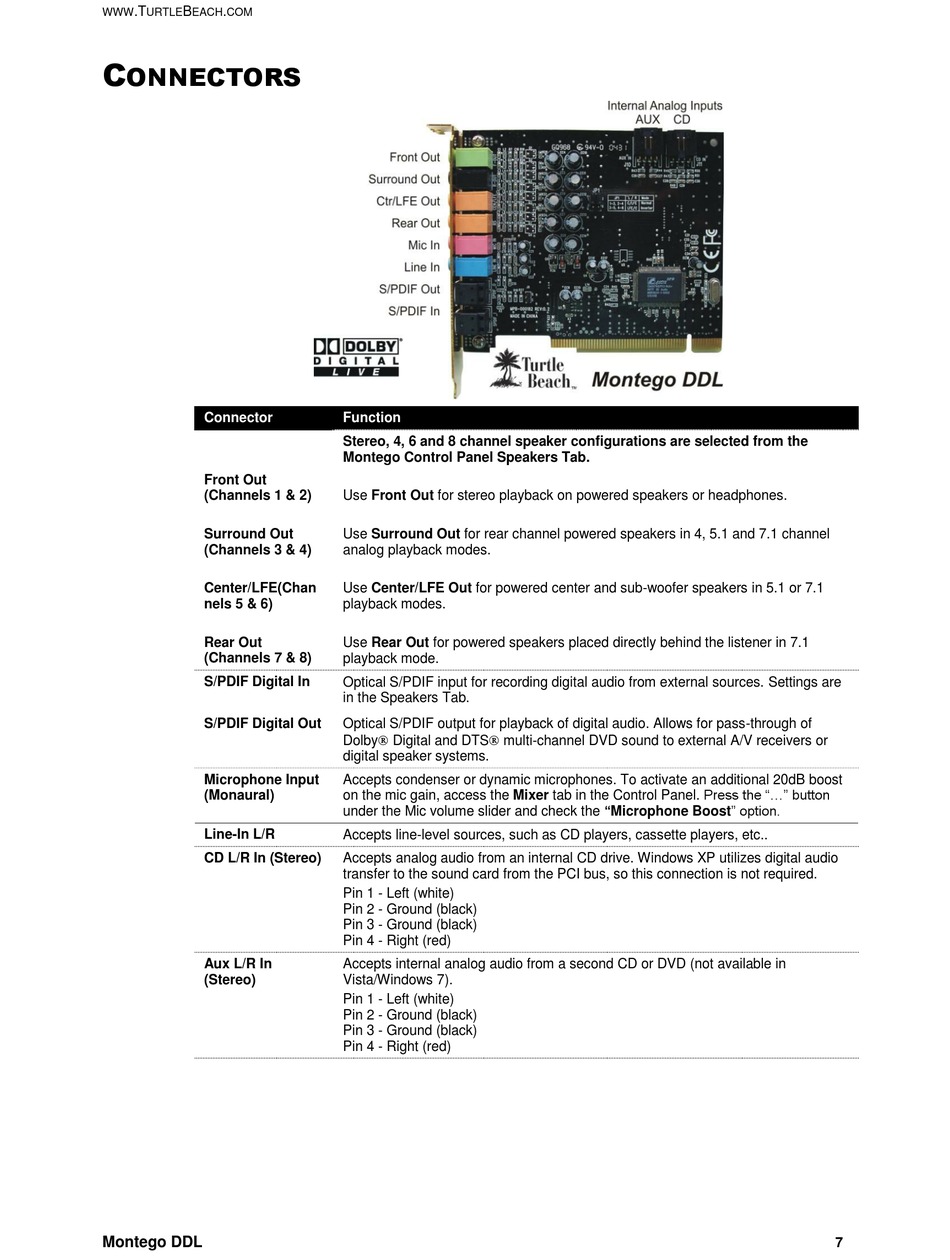

C
ONNECTORS
Connector
Front Out
(Channels 1 & 2)
Surround Out
(Channels 3 & 4)
Center/LFE(Chan
nels 5 & 6)
Rear Out
(Channels 7 & 8)
S/PDIF Digital In
S/PDIF Digital Out
Microphone Input
(Monaural)
Line-In L/R
CD L/R In (Stereo)
Aux L/R In
(Stereo)
Montego DDL
Function
Stereo, 4, 6 and 8 channel speaker configurations are selected from the
Montego Control Panel Speakers Tab.
Use Front Out for stereo playback on powered speakers or headphones.
Use Surround Out for rear channel powered speakers in 4, 5.1 and 7.1 channel
analog playback modes.
Use Center/LFE Out for powered center and sub-woofer speakers in 5.1 or 7.1
playback modes.
Use Rear Out for powered speakers placed directly behind the listener in 7.1
playback mode.
Optical S/PDIF input for recording digital audio from external sources. Settings are
in the Speakers Tab.
Optical S/PDIF output for playback of digital audio. Allows for pass-through of
Dolby Digital and DTS multi-channel DVD sound to external A/V receivers or
digital speaker systems.
Accepts condenser or dynamic microphones. To activate an additional 20dB boost
on the mic gain, access the Mixer tab in the Control Panel. Press the "..." button
under the Mic volume slider and check the "Microphone Boost" option.
Accepts line-level sources, such as CD players, cassette players, etc..
Accepts analog audio from an internal CD drive. Windows XP utilizes digital audio
transfer to the sound card from the PCI bus, so this connection is not required.
Pin 1 - Left (white)
Pin 2 - Ground (black)
Pin 3 - Ground (black)
Pin 4 - Right (red)
Accepts internal analog audio from a second CD or DVD (not available in
Vista/Windows 7).
Pin 1 - Left (white)
Pin 2 - Ground (black)
Pin 3 - Ground (black)
Pin 4 - Right (red)
7
