Sonoclast MAFD User Manual v1.0
January 2020
https://sonoclast.com
sonoclast@gmail.com

Introduction

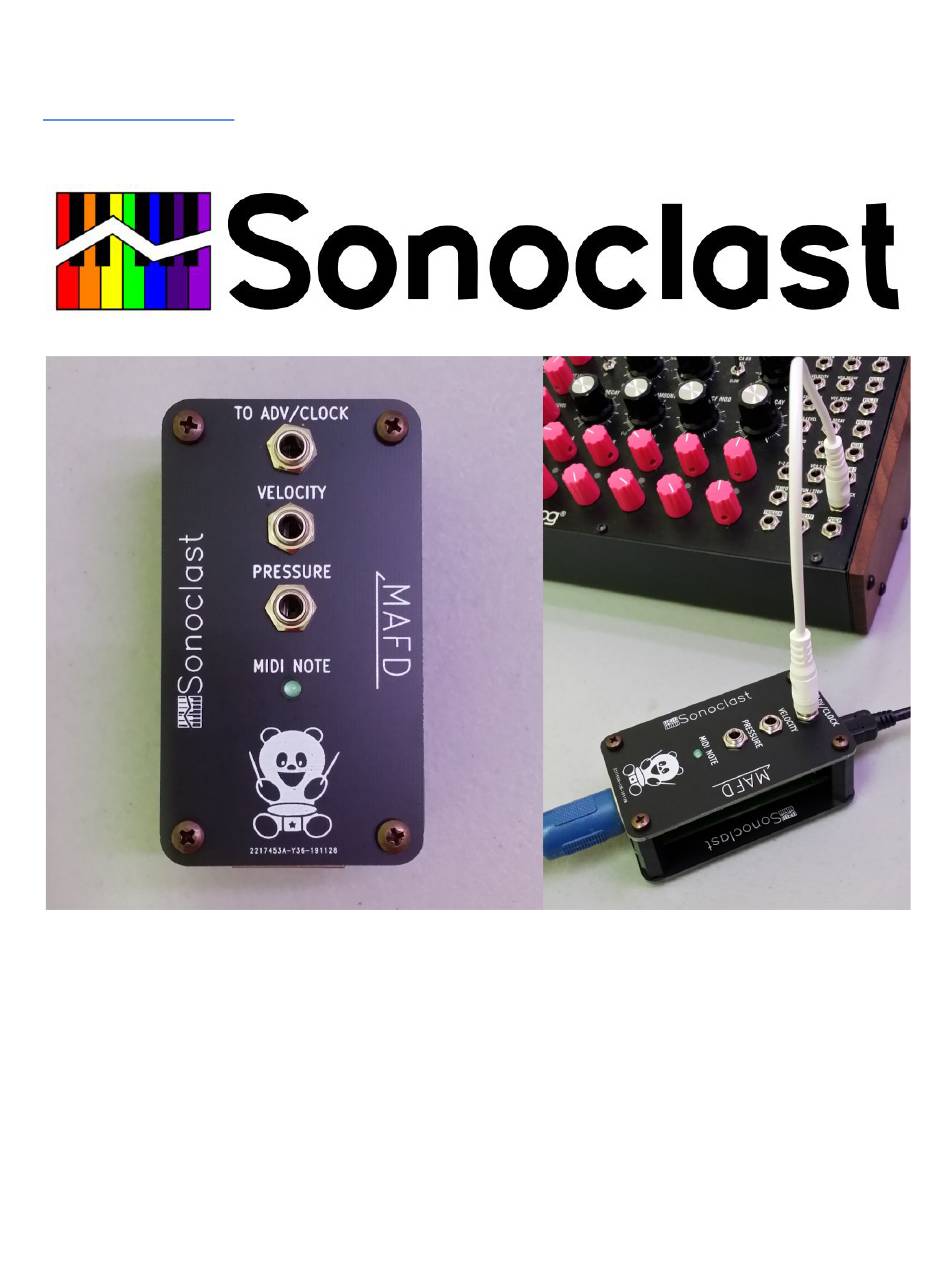

The MAFD provides MIDI control of the eight steps of a DFAM. Play a DFAM with a keyboard,
an electronic drum set, a MIDI sequencer (hardware or in your DAW), or any other controller
that sends MIDI notes.
The MAFD can receive MIDI as a USB device or via the standard DIN connector. It responds to
MIDI note/velocity, pressure, and mod wheel messages. Any 8 adjacent notes correspond to
and trigger the 8 steps on a DFAM. The velocity jack outputs a voltage (0-5V) corresponding to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAFD and is the answer not in the manual?

Questions and answers

Related Manuals for Sonoclast MAFD

Summary of Contents for Sonoclast MAFD

  • Page 1 Introduction The MAFD provides MIDI control of the eight steps of a DFAM. Play a DFAM with a keyboard, an electronic drum set, a MIDI sequencer (hardware or in your DAW), or any other controller that sends MIDI notes.
  • Page 2 0-5V, MIDI Note LED shows MIDI note activity Setup Instructions Follow these steps to get the most out of your MAFD. 1. Use the USB cable to power your MAFD. You can plug it into a USB port on your computer or a USB power supply.
  • Page 3 2. Use the USB cable for MIDI (plugged into your computer), or connect a MIDI DIN cable from the MIDI OUT of your controller to the DIN connector on the MAFD. 3. Patch the MAFD “TO ADV/CLOCK” jack to the ADV/CLOCK jack on your DFAM.
  • Page 4 4. Optionally, patch the MAFD “VELOCITY” and “PRESSURE” jacks to jacks of your choice. The “VELOCITY” jack outputs 0-5V corresponding to MIDI velocities 0-127, and the “PRESSURE” jack outputs 0-5V corresponding to MIDI (poly and channel aftertouch) pressures 0-127 and/or the mod wheel.
  • Page 5 5. If you start up your DFAM and MAFD cold, the DFAM’s first step will be mapped to MIDI note numbers that are evenly divisible by 8 (0, 8, 16, 24, …). If the DFAM steps and MIDI notes get out of sync, follow the next step to re-sync your setup.
  • Page 6 7. Play your DFAM! Change log: v1.0 - January 2020 - Released.
