Ewimar CONV Pelco to Bosch User Manual

USER GUIDE firmware 0.01.xx
The converter / translator is a microprocessor device designed to integrate control devices using
the Pelco-D or Pelco-D protocol with Bosch Speed Dome cameras operating in the Biphase or OSRD
protocols.
High performance processor and software created in accordance with the principles of
multitasking, give an efficient configuration with fast response to control.
The converter / translator is equipped with one RS-485 port for Pelco protocol and two
configurable ports for Biphase / RS-485 OSRD.
Main features
1) Support for up to sixteen cameras (Standard version) by one converter with individually selected
addresses for each camera in the range from 1-254. One camera support for Lite version.
2) Possibility to extend up to 99 cameras by purchasing additional licenses. Function of changing
camera output addresses (ADDRESS SHIFT) during translation. It also allows you to control Bosch
cameras with an address range of 1-16383. Optional license for the Standard version, free for the
Lite version.
3) Advanced PAN / TILT Joystick Curve Correction function, individually for each camera - optional
license for the Standard version, free for the Lite version.
4) Simultaneous processing of many motion commands: Pan, Tilt, Zoom, Iris, Focus.
5) Programming and calling the PRESET and AUX functions.
6) Wide range of baud rate selection and Pelco and Bosch OSRD protocol type selection.
Settings and updating firmware via USB and Ewimar Firmware Upgrader / Configurator.
7)
Possibility to change the firmware to others when the converter will no longer be used in the existing
8)
system - only at the cost of the software.
Connection structure
The converter has two Bosch output ports, each of which is freely configurable as Biphase or OSRD
(RS-485). It is installed between a control device with Pelco protocol (keyboard, DVR, encoder, etc.) and
Bosch cameras. Can be located anywhere between control device and PTZ cameras..
PTZ keyboard with
Pelco

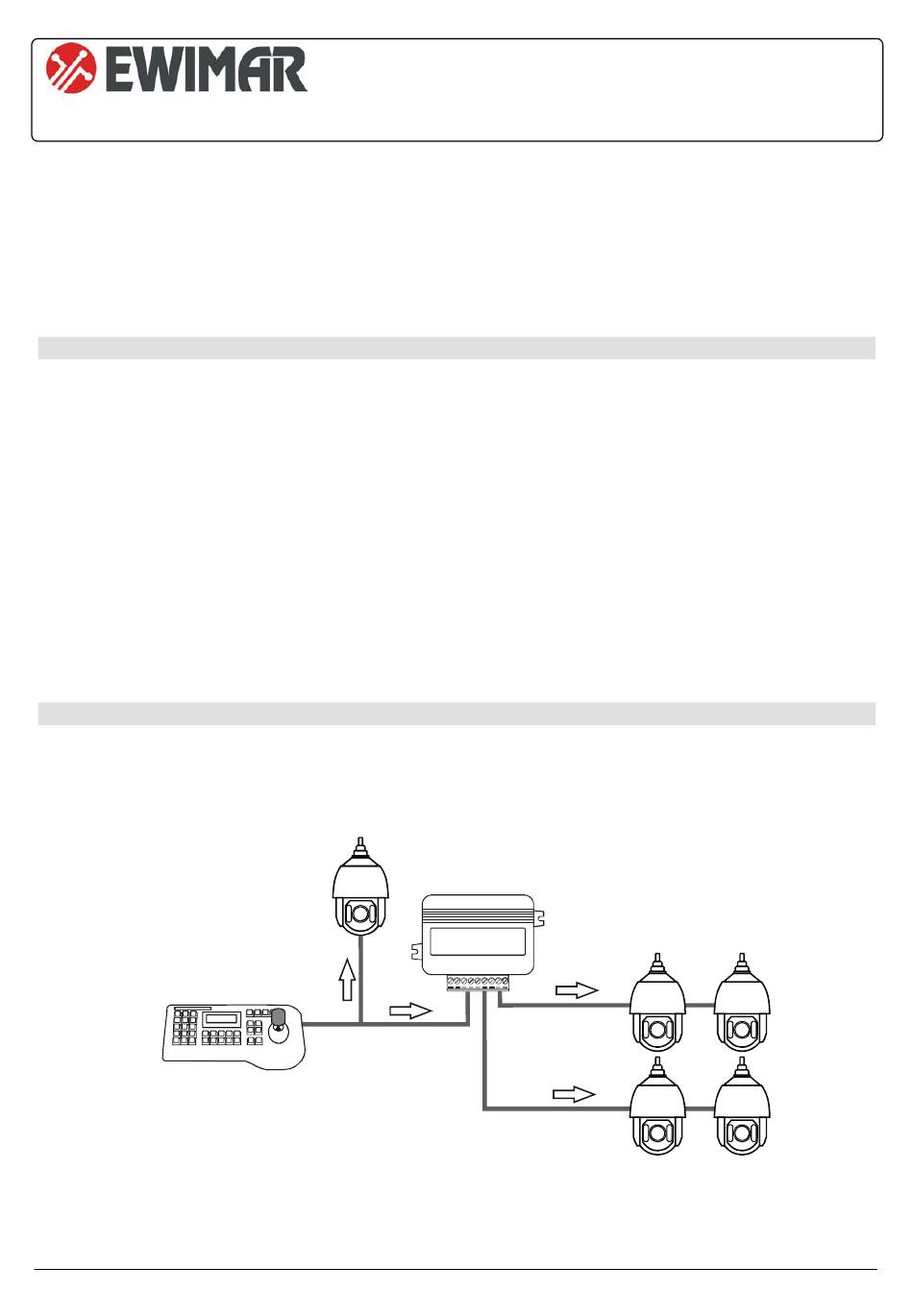

The basic way to connect a Pelco PTZ keyboard to Bosch Speed Dome cameras
Ewimar Sp. z o.o.
www.ewimar.pl
Pelco
Speed Dome
PORT 1 / RS485
Made in Poland
CONV
PTZ protocol converter / translator
Standard and Lite version
Pelco->Bosch
PORT 3
Biphase / OSRD
PORT 2
Biphase / OSRD
CONV Pelco To Bosch - firmware 0.01.xx
Pelco To Bosch
AG
Bosch Speed
Dome
