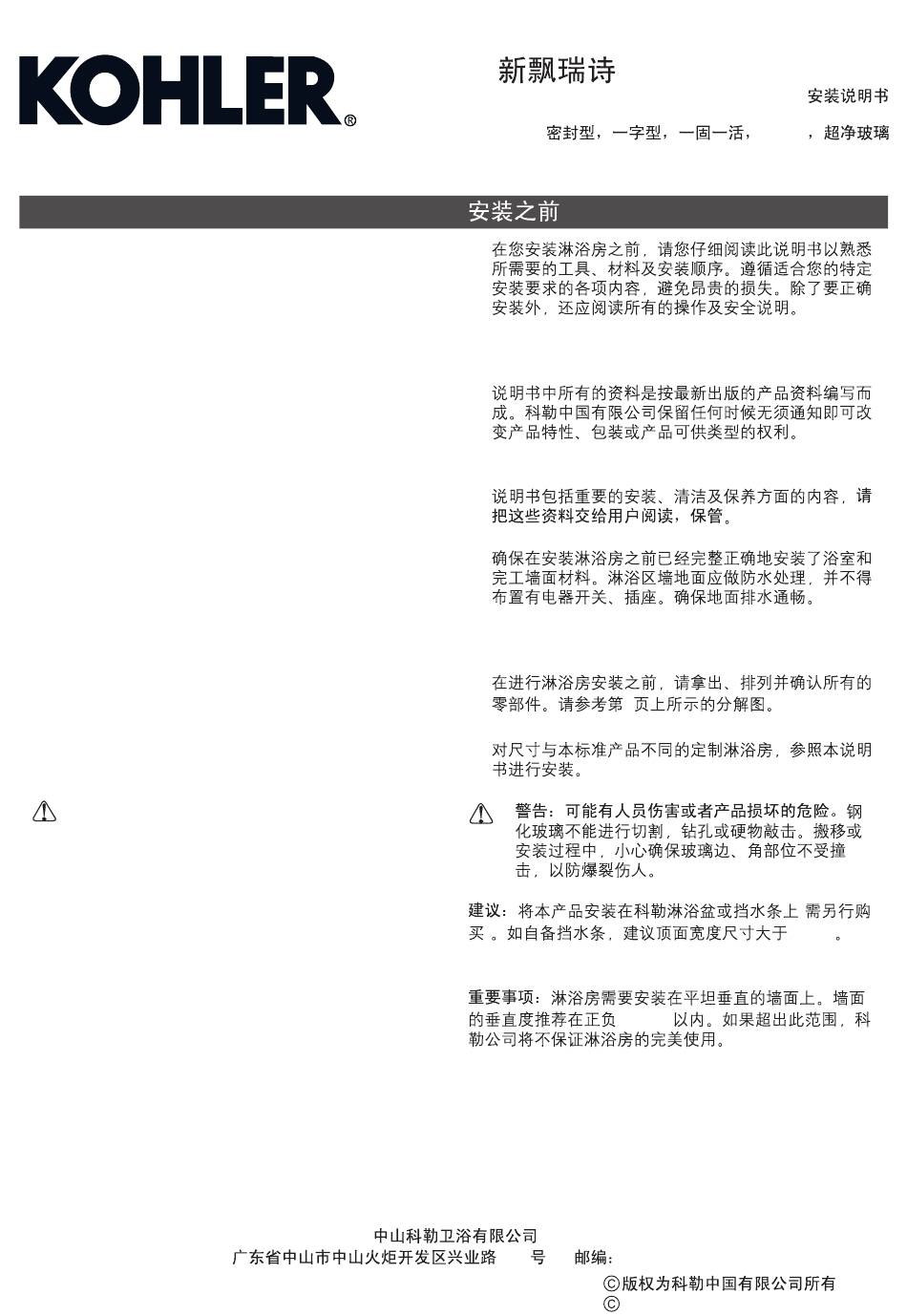

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Before you install your shower door, please read
these instructions carefully to familiarize yourself
with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-
instructions for the consumer.
·
Make sure that the bath and the finished wall
material are completely and correctly installed prior
to installing your shower door. Prepare waterproof
layer to wall and floor of the showering area. It is not
allowed for any presence of electric switches and
sockets. Make sure the floor drain runs smoothly.
·
Before starting the door installation, lay out and
identify all the parts. Use the exploded view
illustrated on page 3 for reference.
·
For the installation method of customized shower
with different dimensions, please refer to this
instructions.
CAUTION: Risk of injury or product damage.
Tempered glass cannot be cut, drilled or
knocked by hard object. Make sure corner area
of the glass refraining from knocking so as to
cause personal injury due to broken glass.
Please install this door on Kohler
ATTENTION:
receptors or curbs (Not included). If the curb is not
Kohler-branded, please note its top width should be
more than 80mm.
IMPORTANT:
The shower door requires a flat vertical
finished wall. The squareness of the wall is
recommended no more than 3 mm/m. KOHLER
Company won't take responsibility of the installation
quality.
1227975-T01-A
please leave these
·
·
·
·
·
·
)
13-1
-1-
PURIST UPGRADE
INSTALLATION INSTRUCTIONS
10mm
SCREEN 1D1P, SEALED, 10mm C
3
80mm
3mm/m
528437
Copyright Kohler China Ltd., 2014
K-99170T
(
, 2014
Advertisement
Table of Contents
Related Manuals for Kohler Purist Upgrade K-99170T
Summary of Contents for Kohler Purist Upgrade K-99170T
- Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. · ·...
-
Page 2: Parts Identification
ROUGHING-IN Unit: mm K-99170T 900-1600 2000-2500 PARTS IDENTIFICATION PARTS IDENTIFICATION Glass Clamp Purist Transom Pivot Assy, 1D1P Top Frame Transom Side Seal Purist Transom Pivot Assy, 1D2P Door Glass Side Frame Purist Top Hinge Assy Wall Channel Purist Bottom Hinge Assy Purist Handle Assy Hingelite Panel 2.5mm Allen Key... -
Page 3: Installation Requirements
INSTALLATION REQUIREMENTS INSTALLATION REQUIREMENTS Tools Required · · Phillips Screwdriver · · Pencil · · Caulk Gun · · Measuring Tape · · Safety Glasses · Center Punch · · Hammer · · Knife · · Masonry Drill & 6mm Drilll Bit ·... - Page 4 Fix the wall channel on the other side by following the Make sure the ceiling is firm enough and then fix the same steps. top frame onto the ceiling. Pre-install seals onto the wall channel and then fix it. Align STEP STEP Insert the hingelite panel into the wall channel.
- Page 5 Adjust the two side panels to make them about Tighten the screws of the wall channels and clamp the 662mm apart. side panels. 662mm Note: When adjusting the side panels, please clamp as much of the hingelite panel as possible. <8 STEP STEP...
- Page 6 Lift the door glass and insert into the bottom hinge. Fix the clamp plate into the bottom hinge to tightly clip the glass. Pay attention to the direction of the rubber gasket. IMPORTANT: Ensure the door is fully supported at all times. STEP STEP Fix the upper clamp plate.
- Page 7 Install door handle. Fix the transom assembly to the side panel and wall channel. Do not tighten the screws. STEP STEP Fix the transom to the assembly, adjust the gaps on Fix door seal and side seal. each side and then tighten the screws. Inward-opening door Inside Outside...
- Page 8 Fix bottom seal. Insert side seal between side panel and top frame. Insert decorative seal into top frame. Insert seals into two sides of the transom panels. STEP STEP Drill a 3.3 hole. Fix the bottom hinge and side panel Fix upper and bottom hinge covers.
- Page 9 Tighten the upper and bottom hinge covers by Fix decorative cover of the transom assembly. tightening the screw. STEP STEP Apply a thin layer of silicone sealant on the bottom Do not use the enclosure for at least 24 hours. frame.
