Replacing the Billboard Router
(PN 1109503001SP)
The billboard router creates a firewall protected VPN (Virtual Private Network) inside the
deluxe remote control cabinet. The router splits the incoming Internet signal from the Internet
Service Provider's (ISP) hardware device into eight 10/100 Mbps local ports.
The control cabinet's PC controllers, UPS's SNMP / Web card, and the optional diagnostic
camera's PoE (Power over Ethernet) device all connect to the router.
Before you begin
Kit contents
Part Number
30801002
N/A
63100008
65060004
65060005
1109610109
†
Not all components are required to be replaced or used, assess the condition of these components and replace
if necessary.
Tools / Safety equipment needed
Full body safety harness with lanyard
M
6, 2008
AY

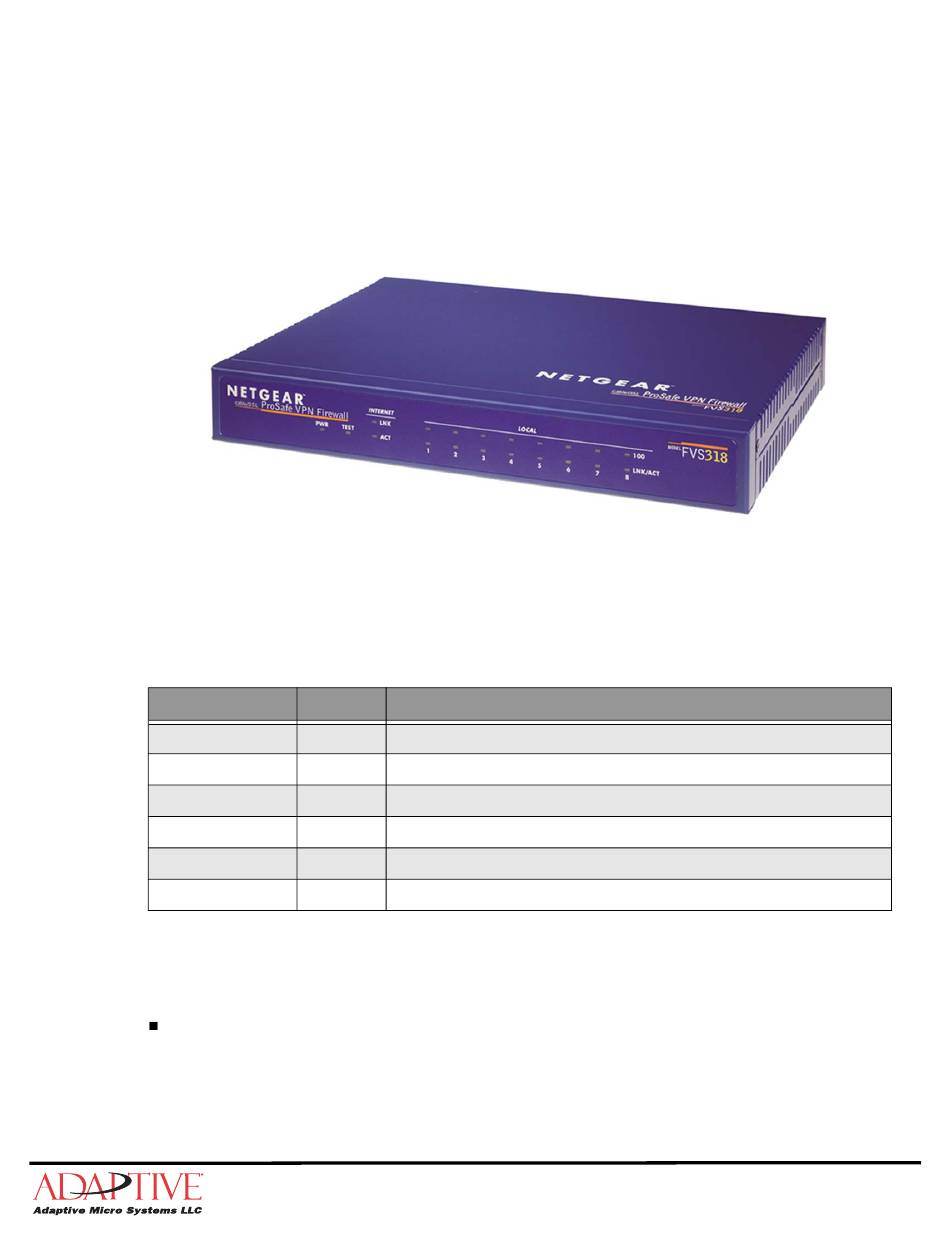

Figure 1. Front view of billboard router.
Qty
8 port 10/100 router with firewall.
1
1
Power adapter.
8 inch tie wrap.
4
†
4.5 inch sticky back hook Velcro strip.
2
†
4.5 inch sticky back loop Velcro strip.
2
Instructions
1
Adaptive Micro Systems • 7840 North 86th Street • Milwaukee, WI 53224 USA • 414-357-2020 • 414-357-2029 (fax) • http://www.adaptivedisplays.com
Adaptive is a registered trademark of Adaptive Micro Systems. Excite is a trademark of Adaptive Micro Systems.
All other brand and product names are trademarks or registered trademarks of their respective companies.
Description
© Copyright 2008 Adaptive Micro Systems LLC. All rights reserved.
PN 1109610109
. B
REV
Advertisement
Table of Contents
Related Manuals for Adaptive NETGEAR 1109503001SP
Summary of Contents for Adaptive NETGEAR 1109503001SP
- Page 1 © Copyright 2008 Adaptive Micro Systems LLC. All rights reserved. Adaptive Micro Systems • 7840 North 86th Street • Milwaukee, WI 53224 USA • 414-357-2020 • 414-357-2029 (fax) • http://www.adaptivedisplays.com Adaptive is a registered trademark of Adaptive Micro Systems. Excite is a trademark of Adaptive Micro Systems.
- Page 2 EPLACING THE ILLBOARD OUTER Replacing the router WARNING! Possible fall hazard. When servicing billboard components, service personnel must use a full body safety harness with lanyard. Connect the lanyard to the billboard head’s safety cables; otherwise serious injury or death may occur. ➩...
- Page 3 8. If applicable, change the IP address on the router. This step is required only if the IP address was not supplied to Adaptive at the time of the order. See “Changing the router’s settings” on page 4 for procedure details.
- Page 4 ILLBOARD OUTER Changing the router’s settings If the current IP address was given to Adaptive prior to the shipment of the replacement billboard router this procedure can be skipped. ➩ To Change the router’s settings 1. If applicable, unlock the Keyboard Video Monitor (KVM) drawer.
- Page 5 EPLACING THE ILLBOARD OUTER 8. Under Setup, click Basic Settings. Click Basic Settings Figure 6. Router setup wizard. 9. Fill in the router’s Basic Settings as shown in the following diagram: Select No. Select Use Static IP Address. Enter IP Address * Enter IP Subnet Mask * Enter Gateway IP Address * Select Use These DNS Servers.
- Page 6 EPLACING THE ILLBOARD OUTER 10. Click OK to restart the router. Figure 8. Router restart prompt. 11. After the router restarts, click Logout. Click Logout Figure 9. Router logout. 12. Click Yes to exit. Figure 10. Router exit prompt. 13. Verify router operation, see page 3 for details. PN 1109610109...
