ETA Systems ETA-RACEWY6 Manual

Electrical housing for eta-ecm20/eta-ecm20m, electrical control module 20a power conditioner

Advertisement

Quick Links

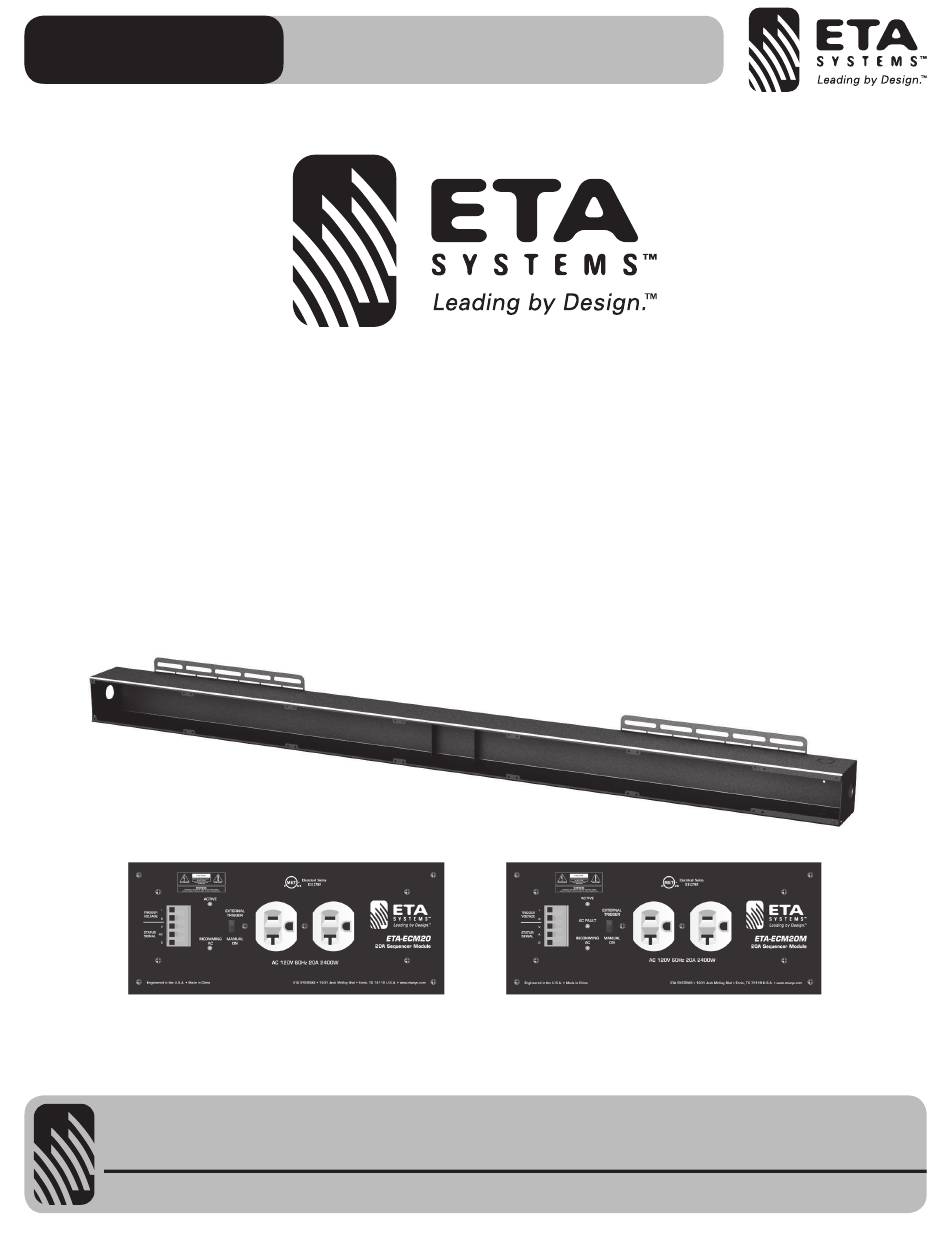

ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
ETA-ECM20 & ETA-ECM20M
Electrical Control Module 20A Power Conditioner
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800-321-6699 • Fax: 800-996-3821
– 1 –
etasys.com
Specifications are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETA-RACEWY6 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETA Systems ETA-RACEWY6

  • Page 1 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ETA-ECM20 & ETA-ECM20M Electrical Control Module 20A Power Conditioner 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 1 – etasys.com Specifications are subject to change without notice.
  • Page 2: Table Of Contents

    Electrical Housing for ETA-ECM20/ETA-ECM20M TABLE OF CONTENTS Introduction ..............................3 Safety ...............................5 ETA-RACEWY6 – Raceway Housing, Knockouts, Ground Stud, Mounting Rails ........6 Differences Between Electrical Control Modules (ECM) ................9 Panel Features of the ETA-ECM20 & ETA-ECM20M ................9 ECM Features Behind the Panel ......................10 ECM-3BP –...
  • Page 3: Introduction

    3. An ETA-ECS6RM controller activates the ECM modules. This manual covers the ECM modules and the ETA-RACEWY6. The ETA-RACEWY6 is the housing that supports up to six ETA-ECM20 or ETA-ECM20M modules. There are four ½" and ¾" dual knockouts that support standard electrical conduit components for wiring 120V AC mains into the raceway housing from the electrical panel.
  • Page 4 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ETA-RACEWY6 FEATURES • Holds 6 ETA-ECM20/ETA-ECM20M Modules • 4 AC Inlet Locations • Dual Knockouts ½" & ¾" • 4 Rail Mounting Tabs • Breakaway Mounting Tabs • 2 Blank Module Cover Plates Included ECM MODULES KEY FEATURES • Manual / Auto ON/OFF switch • Incoming AC present LED • Active LED • AC Fault LED • Clamping Spike & Surge Suppression EVS Circuitry • AC Mains Voltage & Current monitoring (Voltage only for ETA-ECM20) • EMI & RFI Filtering (ETA-ECM20M only) APPLICATIONS The Electrical Control Module Raceway system was designed to be flexible with features that allow it to be used in a variety of applications.
  • Page 5 • Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact ETA Systems. Do not to attempt to continue operation of the product as this may cause fire or electric shock.
  • Page 6: Safety

    ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an CAUTION equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the RISK OF ELECTRIC SHOCK fier product’s enclosure that may be of sufficient magnitude DO NOT OPEN to constitute a risk of electric shock to persons.
  • Page 7 All cover plates must be secured tightly. There shall be no open slots. Blank cover plates are available. Top and bottom mounting tabs are incorporated to mount inside an ETA Systems Rack. All rack mount rails are designed to be breakaway, if they are not needed.
  • Page 8 The ETA-RACEWY6 can be mounted into most racks that have at least 60” of internal height. The raceways have breakaway rail mounting tabs that make it convenient to secure the raceway in most applications. There are four rails to secure the ETA-RACEWY6 to a cabinet or to a wall.
  • Page 9 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ETA-ECM20 & ETA-ECM20M MODULE PANEL FEATURES Trigger / Status Port Pin Identification – all signals are of low voltage and current. DO NOT MISWIRE or damage may occur. A. (+) requires a minimum of 5 -24V DC to activate the module with 5mA of current. Note: The DCV can be supplied from any source.
  • Page 10 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M INTERNAL ECM FEATURES OF THE ECM MODULES Protection behind the Panel • EMI/RFI Filters – ECM noise filtering for eliminating unwanted Radio Frequency Interference (RFI) that is commonly introduced into the AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise from Electromagnetic Interference (EMI) from such items as electric motors, switching power supplies and lightning.
  • Page 11: Ecm-Acin Wire Kit

    It may take more than one ECM-ACIN wire kit depending on how many AC Mains are being used and the distance from the AC Mains Panel. It is not necessary to use the ETA Systems ECM-ACIN wire kit as long as it is 12 guage and UL listed.
  • Page 12: System Wiring Configurations

    ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ETA-ECM20, ETA-ECM20M MODULE SYSTEM WIRING CONFIGURATIONS Example 1 - Single 20A AC Line ECM wiring configuration showing one 20A AC main line coming into an ETA-ECM20M then paralleling with 5 ETA-ECM20 type modules. Note: It appears that the wiring is in series but the ECM Module In/Out terminals are in parallel on the PCB.
  • Page 13 SIGNAL VOLTAGE SIGNAL VOLTAGE SIGNAL VOLTAGE SIGNAL Example 2 – ETA-ECS6RM wired to 4 ETA-ECM20 or ETA-ECM20M Modules in the ETA-RACEWY6 and two separate ETA-15SH and ETA-20SH housings. SYSTEM CONTROL 1601 Jack McKay Blvd Ennis, TX 75119 www.etasys.com LAMP REMOTE Engineered in the U.S.A.
  • Page 14 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ECM DATA WIRE AND DISTANCE There are six ECM control ports on the ETA-ECS6RM and up to 6 ECM Modules can be connected to the ETA-ECS6RM. The four different types of ECM Modules require the same interface connectivity to the ETA-ECS6RM. All ECM Modules and be interchanged with the ETA-ECS6RM.
  • Page 15: Ecm Troubleshooting

    Possible Cause #3: External DCV voltage polarity is not correct across the “+” and “G” terminals. Possible Cause #4: External DCV voltage is to low to activate the trigger circuit. Must be a minimum of 5vDC. ETA-RACEWY6 SPECIFICATIONS Type: Housing for ETA-ECM20 or ETA-ECM20M modules...
  • Page 16 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M ETA-ECM20, ETA-ECM20M SPECIFICATIONS General Type Power Conditioner Suppressor Module Power Requirements 120V 60Hz Power Consumption RoHS Compliant Safety Listings MET (UL 1449 Code) Panel Switched Outlets Two, 20A Spike & Surge Suppression H-N, N-G, H-G...
  • Page 17 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M NOTES 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 17 – etasys.com Specifications are subject to change without notice.
  • Page 18 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M NOTES 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 18 – etasys.com Specifications are subject to change without notice.
  • Page 19 ETA-RACEWY6 Electrical Housing for ETA-ECM20/ETA-ECM20M NOTES 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800-321-6699 • Fax: 800-996-3821 – 19 – etasys.com Specifications are subject to change without notice.
  • Page 20 LiMiTEd WARRAnTY This limited warranty is provided to the ultimate end user (the “Purchaser”) of an ETA Systems (“ETA”) product (“the equipment”). ETA Warrants the Equipment against defects in materials and workmanship for a period of three (3) years on Power Distribution Products and one (1) year on all other products from the original date of purchase.
