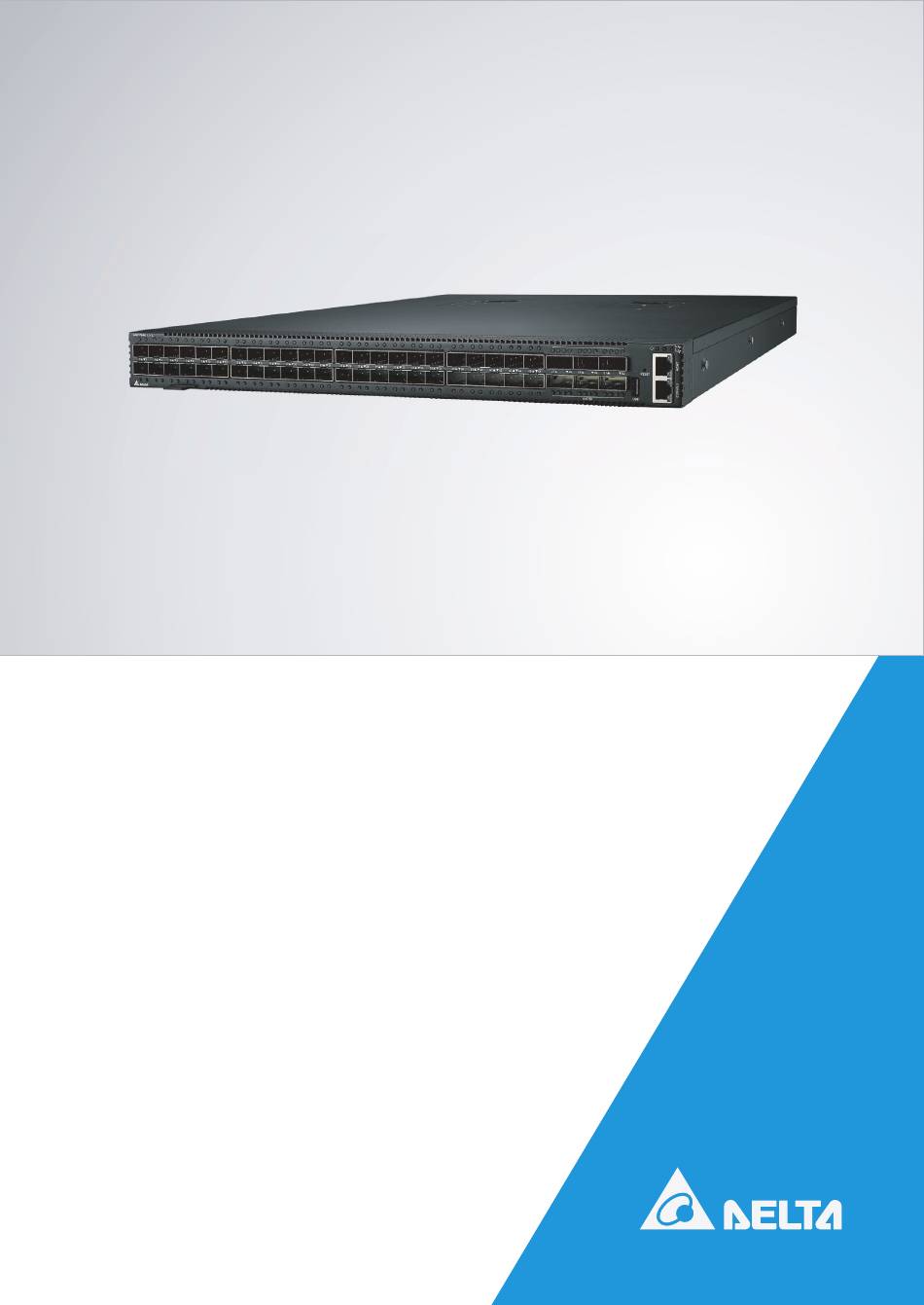

- Page 1 Delta Networking – Agema Family AGC7646V1 Aggregation Switch Installation Guide agema.deltaww.com...
- Page 2 All trademarks and logos mentioned in this guide are the properties of their respective holders. Copyright © Delta Electronics, Inc. All rights reserved. Regulatory and Safety Information This product has been tested in accordance to, and complies with the following safety standards and electromagnetic compatibility (EMC) inspection standards.
- Page 3 Important! This product is intended for installation only in the RESTRICTED ACCESS AREA ACCESSIBLE only to SKILLED PERSONS and INSTRUCTED PERSONS with the proper authorization. • Access is through the use of a lock or tool and key, or other means of security, and is controlled by the authority responsible for the location.
- Page 4 CAUTION Lithium Battery Caution Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type. Dispose batteries according to manufacturer’s instructions. Disposal of a BATTERY into fire or a hot oven, or mechanically crushing or cutting of a BATTERY, that can result in an EXPLOSION.
- Page 5 MISE EN GARDE Mise en garde concernant la pile au lithium Risque d’explosion si la pile est remplacée incorrectement. Remplacez-la avec une pile semblable ou de même type uniquement. Éliminez les piles selon les directives du fabricant. L’élimination de la PILE dans un feu, un four chaud ou un broyeur mécanique peut provoquer une EXPLOSION.
-
Page 6: Table Of Contents
Table of Contents Chapter 1: Introduction -------------------------------------------------------------------1 1.1 Overview ------------------------------------------------------------------------------------ 1 1.2 Package Content ------------------------------------------------------------------------- 1 1.3 Features------------------------------------------------------------------------------------- 2 Chapter 2: Appearance and Mechanism --------------------------------------------3 2.1 Product Overview ------------------------------------------------------------------------- 3 2.2 LED Identification ------------------------------------------------------------------------- 4 2.3 System Requirements ------------------------------------------------------------------- 7 2.4 Data Center Deployment --------------------------------------------------------------- 8 2.5 Power Supply Modules ------------------------------------------------------------------ 9 2.6 Fan Tray Module -------------------------------------------------------------------------10... -
Page 7: Chapter 1: Introduction
Chapter 1: Introduction Overview AGC7646V1 is a ToR/Leaf and EoR switch with deep buffers for data center deployment or as mobile access/aggregation switching and edge routing in service provider network. AGC7646V1 is not only offering 100GbE uplink ports but also supporting virtualization features. -
Page 8: Features
Features The following lists the key main features of AGC7646V1 switch: • 46 x 10GbE SFP+ and 6 x 100GbE QSFP28 ports, support splitter cable • 1 x RJ45 OOB management port • 1 x RJ45 Console port • 1 x USB port •... -
Page 9: Chapter 2: Appearance And Mechanism
Chapter 2: Appearance and Mechanism Product Overview 2.1.1 Front View Management port x 1 QSFP28 port x 6 Console port x 1 SFP+ port x 46 (Figure 2-1: Front View) 2.1.2 Rear View 4 Fan tray slots Secondary PSU PSU x 1 slot x 1 (optional) (Figure 2-2: Rear View) NOTE:... -
Page 10: Led Identification
LED Identification This section provides an overview of the front and rear LEDs. 2.2.1 Front LEDs Upper QSFP28 Port LED Upper SFP+ Port LED Power LED System LED Fan LED Lower SFP+ Port LED Lower QSFP28 Port LED (Figure 2-3: Front LED Identification) Description Solid Green –... - Page 11 Chapter 2 • Appearance and Mechanism Description LED1 (Solid Lighting – Linkup; Blinking – Activity) Solid Green – 100G operation • Solid Amber – 40G operation • Solid Blue – 25G operation • Solid Purple – 10G operation • Off – No Link •...
- Page 12 2.2.2 Rear LEDs Fan tray LED Power Supply LED (Figure 2-4: Rear LED Identification) Description Solid Green – FAN is operating normally • Fan tray LED Solid Red – Fan failure • Solid Green – PSU is operating normally • Power Supply Solid Red –...
-
Page 13: System Requirements
Chapter 2 • Appearance and Mechanism System Requirements Component Requirement System requirements Switch fabric capacity Non-blocking full wire speed on all packet sizes Forwarding architecture Store and forward or cut-through • 148,000,000 pps (100GbE) Port packet forwarding rate • 59,520,000 pps (40GbE) (at 64 Bytes) •... -
Page 14: Data Center Deployment
Data Center Deployment The following figure illustrates the converged Ethernet data center deployment. Internet VPN/MPLS Spine Data Center Data Center VPN/MPLS VPN/MPLS 100GbE Fabric Internet Leaf 10GbE Fabric Rack 1 Rack N End of Row (Figure 2-5: Data Center: Spine and Leaf Deployment) Mobile Access Network AGC7646V1... -
Page 15: Power Supply Modules
Chapter 2 • Appearance and Mechanism Power Supply Modules The power supply modules are hot-swappable power supply units (PSUs) for the switch. You can install up to two PSUs. The PSUs operate in a load-sharing mode and provides 1+1 redundancy. (Figure 2-7: Power Supply Unit) NOTE: 1+1 redundancy is a system where a switch power supply is backed up by... -
Page 16: Fan Tray Module
Fan Tray Module The fan tray module is part of the switch air cooling system that provides cooling for the switch. You must install the fan tray module in the switch that matches the airflow direction of the installed power supply unit. (Figure 2-8: Fan Tray Module) AGC7646V1 Aggregation Switch... -
Page 17: Chapter 3: Installation
Chapter 3: Installation Mounting This switch can be mounted in a standard 19-inch equipment rack. Prior rack mounting the switch, pay particular attention to the following factors: • Mechanical Loading: Do not place any equipment on top of a rack-mounted unit. •... - Page 18 3. Align the hooks on the switch and the holes in the inner rail, and then slide the inner rail backward until it is locked into place. NOTE: Repeat the similar steps to install another inner rail. (Figure 3-3: Installing the Inner Rail on the Switch) 4.
- Page 19 Chapter 3 • Installation 6. Once the mounting brackets are installed properly, pull the middle rails out until they are fully extended, ensuring the ball retainer is securely locked. Then slide the inner rails on the switch into the middle rails and push the switch all the way to the rear of the rack. CAUTION: Due to the switch’s weight, it should be installed by at least two people.
-
Page 20: Installing An Optional Transceiver And Cable
Installing an Optional Transceiver and Cable The SFP+ slots support the following optional transceivers and cables: • 10GBASE-SR • 10GBASE AOC • 10GBASE-LR • 10GBASE DAC The QSFP28 slots support the following optional transceivers and cables: • 100G BASE-SR4 • 100G AOC (Active Optical Cable) •... -
Page 21: Connecting To The Console Port
Chapter 3 • Installation 3. Slide the SFP+, QSFP, or QSFP28 transceiver into the slot until it clicks into place. NOTE: • SFP+, QSFP, or QSFP28 transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transceiver. -
Page 22: Connecting To A Power Source
Connecting to a Power Source 3.4.1 Installing an AC Power Supply To connect a switch to a power source: 1. Insert the power cable plug directly into the AC socket of a PSU located at the back of the switch. Power socket (Figure 3-9: Power Socket) 2. - Page 23 Chapter 3 • Installation 3.4.2 Installing a DC Power Supply Two types of connection to a power source: a. DC power cord for DC source connection 1. Insert the power cable plug directly into the DC socket of a PSU located at the back of the switch.
- Page 24 b. Adapter connector for DC source connection 1. Attach the connector directly into the DC socket of a PSU located at the back of the switch. The earthing wire of the protective earthing conductor shall be green-and-yellow, 14AWG. The terminals for connecting protective earthing conductors shall comply with conductor size 2.5 (mm2), nominal thread diameter screw type 4 (mm).
-
Page 25: Chapter 4: Making The Network Connections
Chapter 4: Making the Network Connections The AGC7646V1 switch is designed to provide high-speed, lossless Ethernet connections between server racks through its 10G SFP+ or 100G QSFP28 ports. This chapter describes how to make network connections to the switch. Twisted-pair Connections The switch’s Management port connection requires an unshielded twisted-pair (UTP) cable with RJ-45 connectors at both ends. -
Page 26: Fiber Optic Connections
Fiber Optic Connections Optional 10G SFP+ or 100G QSFP28 transceivers can be used for fiber connections from the switch to other network devices in the data center. An SFP+ or QSFP28 transceiver may also be used for long distance connections to devices at another site. WARNING: •... -
Page 27: Ethernet Cabling
Chapter 4 • Making the Network Connections (Figure 4-3: Making QSFP28 Port Fiber Connection) Ethernet Cabling To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T operation. Check the following criteria against the current installation of your network: •... -
Page 28: Appendix 1 : Technical Specifications
Appendix 1 : Technical Specifications Item Description Key components Switch controller BCM88375 x 1 BCM5461S x 1 Intel Broadwell-DE D1548 Octal Core Flash ROM 16MB SPI Flash*2 System memory 16GB DDR4 SO-DIMM*2 Storage 128GB m.2. SSD AST2520 Packet buffer 4GB GDDR5 TCAM BCM52311 Network Protocol and Standards Compatibility... -
Page 29: Appendix 2 : Warranty
Appendix 2 : Warranty Limited and Support Warranty Three Years End-User Guarantee. The new product you purchased from Delta or Delta authorized resellers (“Resellers”) will be free from defects in materials, workmanship, and design affecting normal use, for a period of three (3) years from the original purchase date. - Page 30 Return Policy Any product returned to Delta or Resellers without prior Return Material Authorization (RMA) from Delta will be considered an unauthorized return, and you will not receive any repair or replacement for the product and Delta will not ship the product back to you. The authorization will be provided through the e-mail: AgemaTechSupport@deltaww.com.
