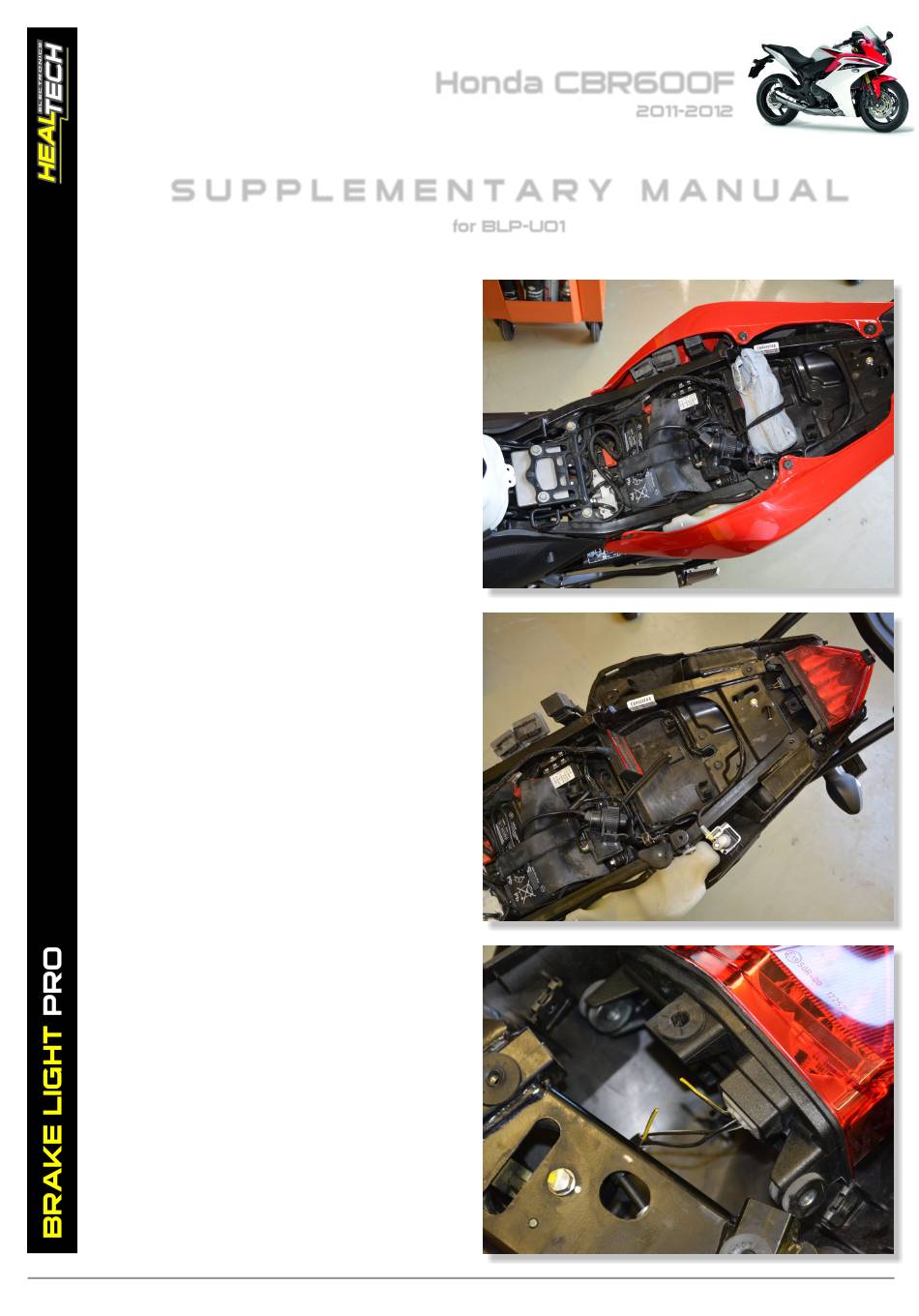

- Page 1 Honda CBR600F 2011-2012 S U P P L E M E N T A R Y M A N U A L for BLP-U01 Remove the seat. Remove the upper seat cover. Cut the yellow/black wire. www.healtech-electronics.com PAGE 1/3...
- Page 2 Honda CBR600F 2011-2012 Connect the BLP red wire to yellow/black wire end, which is at the wiring harness side. Connect the BLP green wire to yellow/black wire end, which goes to the rear light. Connect the BLP black wire to black/white wire.
- Page 3 Honda CBR600F 2011-2012 Typical position for Brake Light Pro. www.healtech-electronics.com PAGE 3/3...
