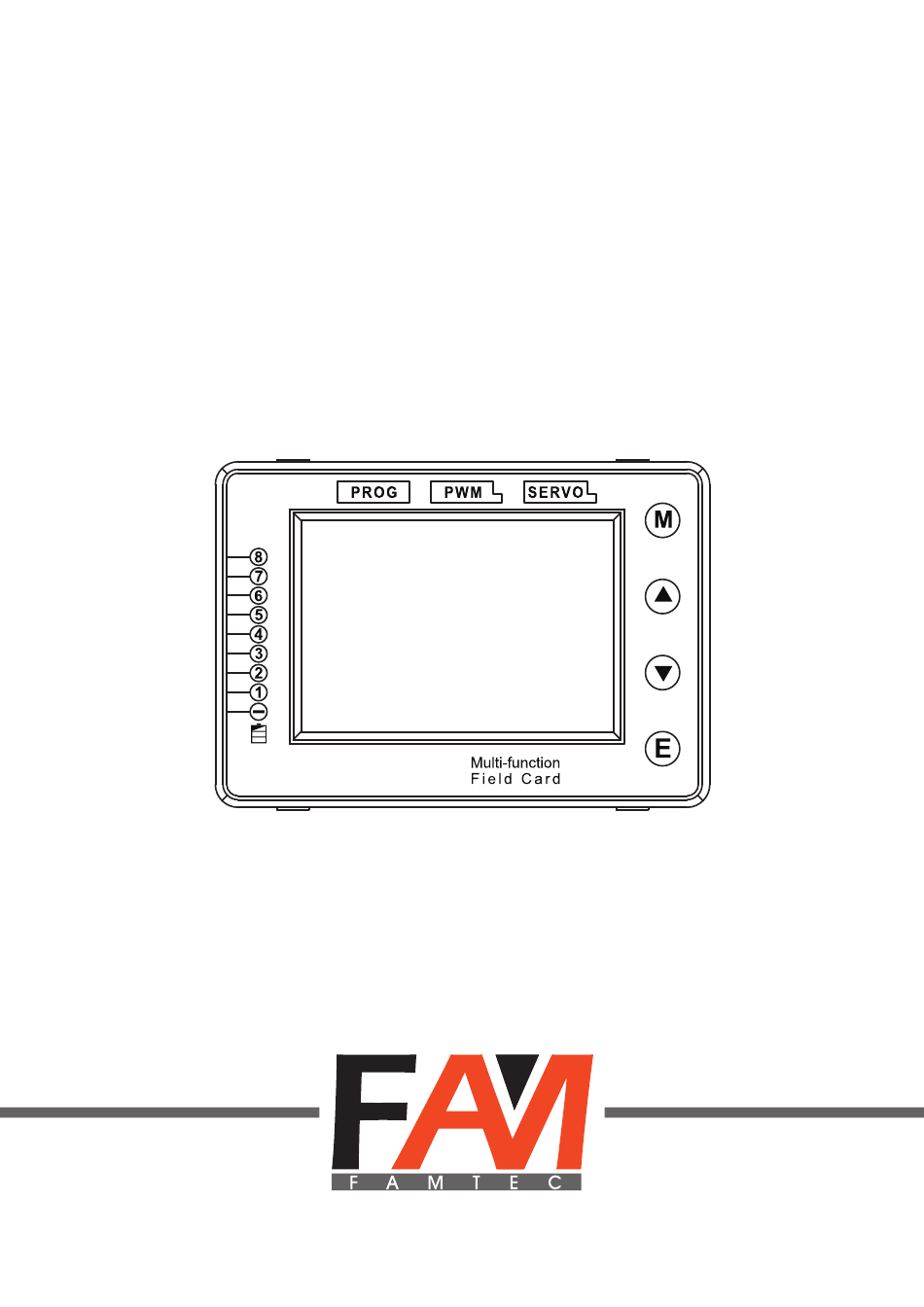

- Page 1 FC53 Multi-function set Instruction Manual 多功能设定卡使用说明 FC53 WWW.FAM-TECHS.COM...
- Page 2 SHANGHAI FAMTECHS CO., LTD. FC53 program card is designed for AG22, MG22 in site setting, and it can work as Lipo battery voltage meter for 2S-8S lipo battery, PWM signal test, and Servo test. It is convenient for user to set, test and maintain the flight controller in the field.
- Page 3 SHANGHAI FAMTECHS CO., LTD. (二) BATTERY MONITOR FC53 can test 1S-8S lipo battery voltage, the following is the connection with lipo battery and the test interface. For example, FC53 is connected to 3S lipo battery. Single cell voltage Battery mean voltage Battery total voltage (三) PWM TEST...
- Page 4 Minimum are select for Auto or Manual. (五) PROGRAM CARD FC53 can set airplane flight controller AG22 and multirotor flight controller MG25. It is convenient to set the flight controller in the field. The following is the connection and setting interface.
- Page 5 SHANGHAI FAMTECHS CO., LTD. When the flight controller is powered on and initialized, select “CONNECT DEVICE”, you will see following interface. You can set the flight controller now. Note: when the data is changed, the data is not saved to the flight controller yet, please move to “SAVE”...
- Page 6 MG25 V1.2 ATTITUDE GAIN-R 100 Roll attitude gain ATTITUDE GAIN-P 100 Pitch attitude gain MAX ANGLE-R Roll maximum angle MAX ANGLE-P Pitch maximum angle TRIM ANGLE-R Roll angle trim MG25 V1.2 TRIM ANGLE-P Pitch angle trim FAMTECH All Rights Reserved page<5>...
