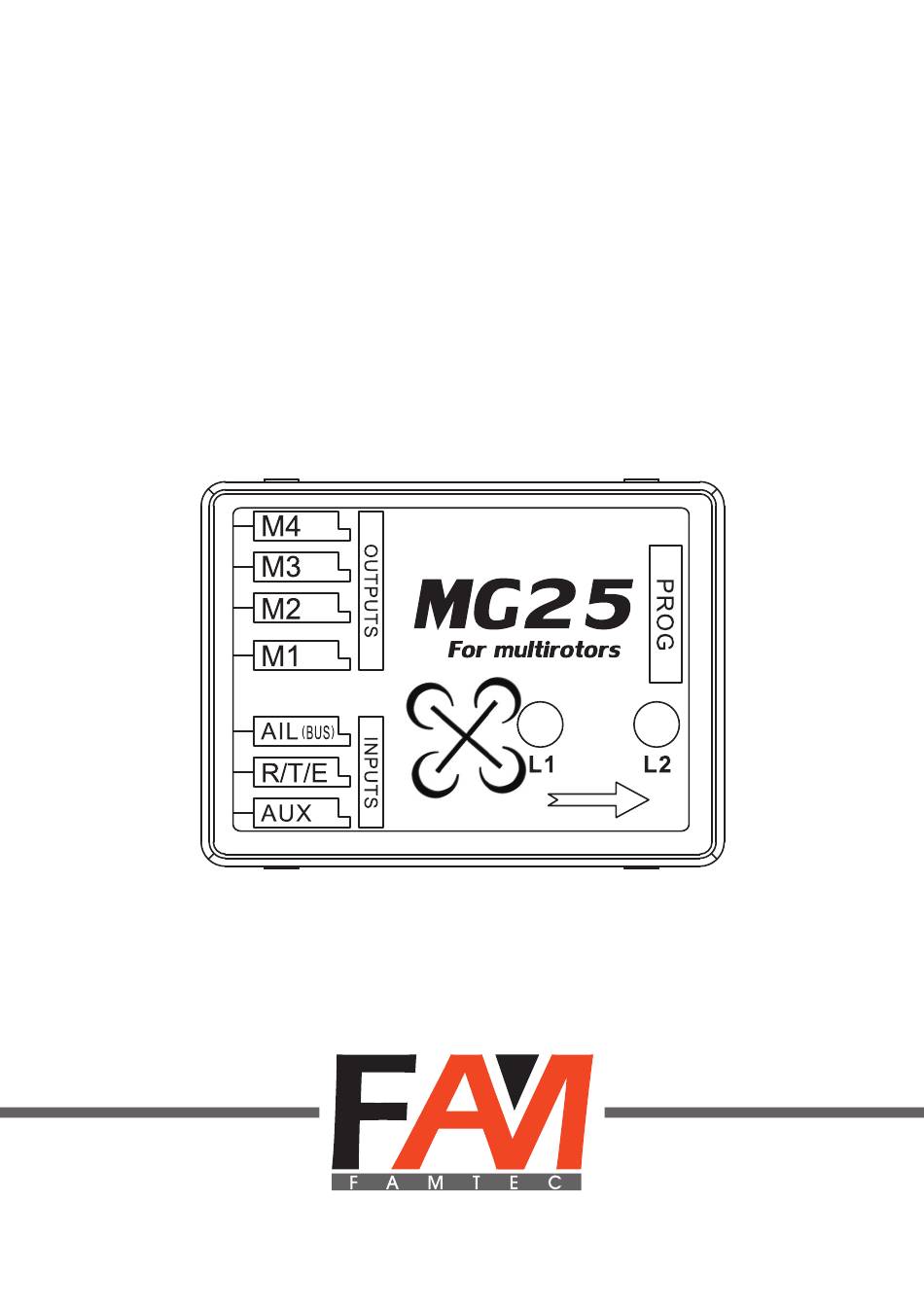

- Page 1 MG25 MANUAL WWW.FAM-TECHS.COM...
-
Page 2: Technical Parameters
Double sided adhesive tape × 1 5.Remote control requirement Need an at least 4 channel transmitter, if the transmitter only have 4 channels, MG25 will works on auto level mode. 5 or more channel transmitter is recommended, so that different flight modes can be switched by the 5th channel page<1>... -
Page 3: Power Supply
ESC BEC or external BEC as a power source. 7.Installation ● MG25 should be mounted as shown in the figure below, head point forward. Please note the sequence of motors and rotating direction of propellers, please stick MG25 to your quadcopter with double side tape accessory. - Page 4 SHANGHAI FAMTECHS CO., LTD. ● Connection of MG25 with regular PWM receiver is shown below. 1 AIL orange 2 ELE Receiver 3 THR brown 4 RUD 5 CH5 6 AIL2 Normal receiver ● Connection of MG25 with SBUS receiver is shown below.
-
Page 5: First Time Setup
● Transmitter setting Please set the model type to general airplane on your transmitter. Please connect MG25 AUX to the 5th channel of your transmitter, and use a double-stage switch to sleect different flight modes, the corresponding flight modes to... - Page 6 Turn on the transmitter, put the throttle stick at maximum position, and then connect the battery, both red and green LED on MG25 will on, that means MG25 has entered stick range calibration mode. After that, pull the throttle stick down to its minimum position until all LEDs are off, stick range calibration is finished.
- Page 7 SHANGHAI FAMTECHS CO., LTD. Please install the ‘USB to serial’ driver first. After MG25 powered on and initialization finished, select right COM port, and click Connect MG25 button to link MG25, when parameters are modified, click Apply setting button to save settings.
- Page 8 MG25 can also be connected with FC53 programming card for field setting. Please refer FC53 instruction manual for more details. SELECT FUNCTION...
- Page 9 Shanghai Famtechs Co., Ltd. Add: Rm.575,No.31, Shaochang Rd,Fengxian district ,Shanghai,China P.C: 201413 Mail:info@fam-techs.com Web: www.fam-techs.com...
