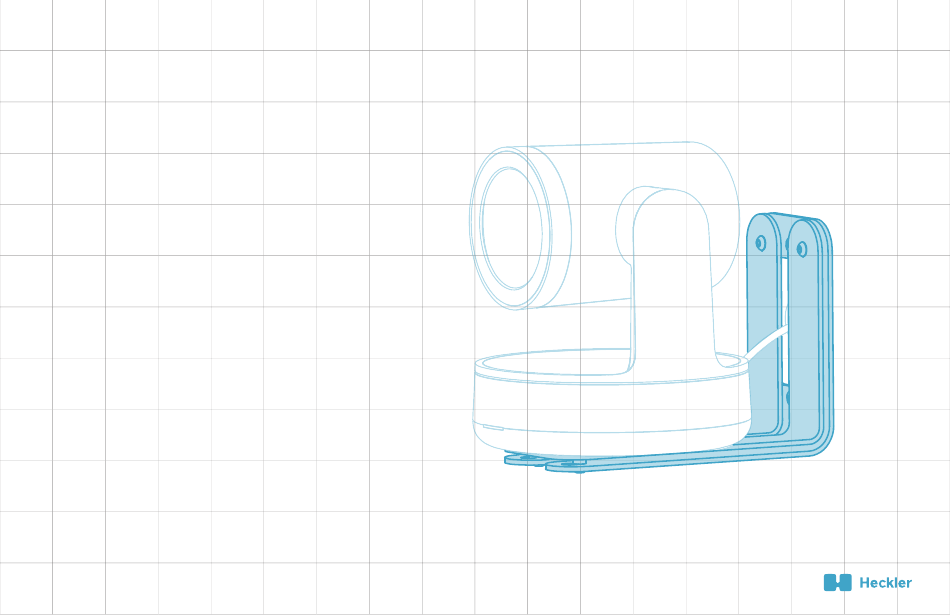

- Page 1 H599 - PTZ Camera Mount Universal Wall Mount for Pan Tilt Zoom Cameras Designed & made in Arizona Patented...
- Page 2 IN THE BOX PTZ Camera Mount Wall Anchor 1/4-20 Camera-mounting screw Wall-mounting Screw Camera-mounting Hex Key Assembly Hex Key Cable Tie...
-
Page 3: Tools Needed
TOOLS NEEDED Tape Measure Power Drill Phillips Bit 3/4” Drill Bit Level COMPONENTS NEEDED (Not Included) PTZ Camera PTZ Power and Data Cables If you have any questions, please contact service@hecklerdesign.com. -
Page 4: Lower Bracket
STEP 1 Disassemble PTZ Camera Mount. Upper Bracket Loosen the screws and slide the upper bracket out through the keyholes. Lower Bracket... - Page 5 STEP 2 Select mounting location.
- Page 6 STEP 3 Mounting options. Wall Anchor Gang Box (not included) Skip step 4 and 5...
- Page 7 STEP 4 Mark wall anchor locations.
- Page 8 STEP 5 Install wall anchor and drill a 3/4” hole.
- Page 9 STEP 6 Route cabling, then assemble upper bracket to the lower bracket.
- Page 10 STEP 7 Mount PTZ camera.
- Page 11 Optional Tidy cabling. Organize the cables with the cable tie provided.
