HECKLER H587-ADA Quick Start Manual

For logitech brio
Hide thumbs

Advertisement

Quick Links

Download this manual
H587 - ADA Camera Mount
for Logitech BRIO

Advertisement

loading
Need help?

Need help?

Do you have a question about the H587-ADA and is the answer not in the manual?

Questions and answers

Related Manuals for HECKLER H587-ADA

Summary of Contents for HECKLER H587-ADA

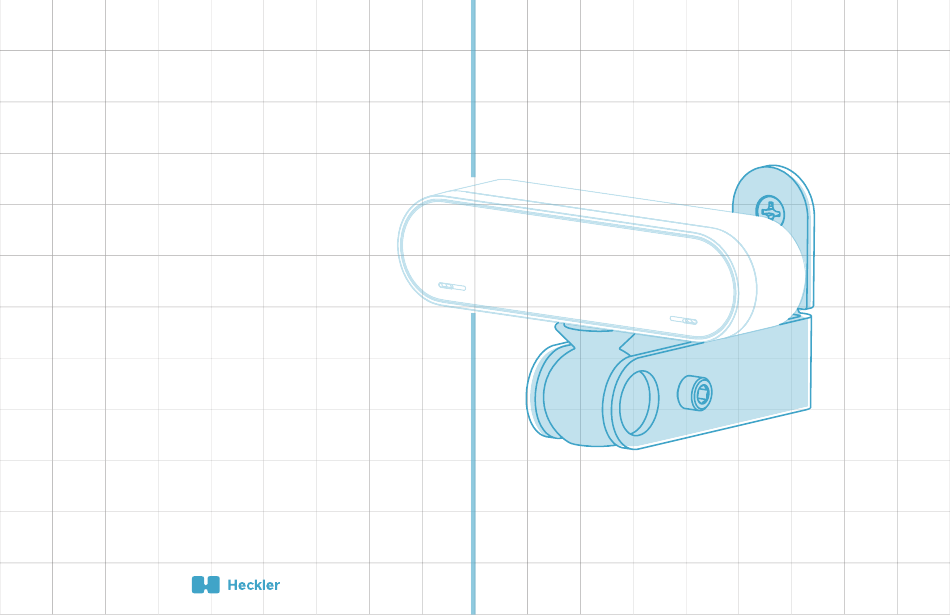

  • Page 1 H587 - ADA Camera Mount for Logitech BRIO...
  • Page 2 IN THE BOX ADA Camera Mount Wall Achor Hex Key, 5/32” Mounting Screw...

  • Page 3: Tools Needed

    TOOLS NEEDED Tape Measure Power Drill Phillips 1/2” Spade head Bit Drill Bit COMPONENTS NEEDED (Not Included) Logitech BRIO BRIO USB-C Cable If you have any questions, please contact service@hecklerdesign.com.
  • Page 4 STEP 1 Locate mounting position Important Notes: Locate and mark the ideal location for your ADA Camera Mount. It could be mounted underneath, above or beside the display.
  • Page 5 STEP 2 Install the wall anchor...
  • Page 6 Optional Mark and drill the hole Important: Drill a 1/2-inch hole for the cable to pass through the wall. 1 3/8” 1/2” hole...
  • Page 7 Optional Route the USB-C cable through the wall...
  • Page 8 STEP 3 Fasten the ADA Camera Mount...
  • Page 9 STEP 4 Install the Logitech BRIO Connect the USB-C cable to Logitech BRIO Camera Fasten the camera to the ADA Camera Mount with the hex key.
  • Page 10 STEP 5 Adjust and set camera orientation. Loosen the screw with the hex hey to adjust camera orientation, and then tighten it.
