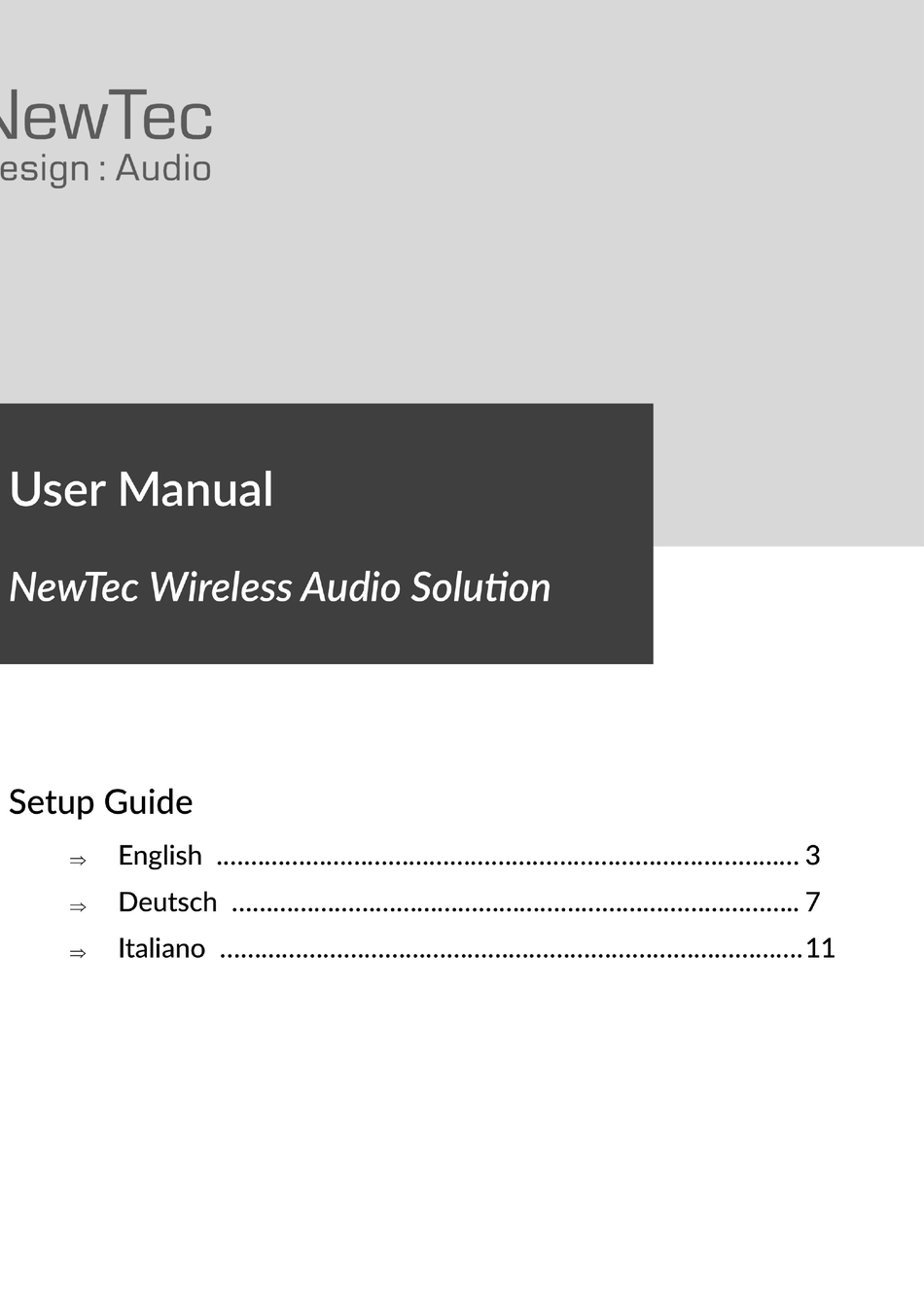

- Page 1 User Manual NewTec Wireless Audio Solution Setup Guide English .………………………………………………………………………… 3 Deutsch ……………………………………………………………………….. 7 Italiano …………………………………………………………………………. 11 ...
- Page 3 Please check if there are visible damages caused by transportation. In this case, do not install the system but contact your supplier. Power connection of the different WiFi speakers CONO pendo WiFi CONO canto WiFi WiFi Subwoofer SUB quadro WiFi Turn the switch till you hear the “plop”...
- Page 4 NEWTEC TRANSMITTER NEWTEC REMOTE CONTROL Transmitter Speaker Front Status-LED Status-LED NewTec Remote Restart Connect Start Pairing Factory Settings End Pairing Restart SMA-RP IR Receiver Antenna Volume Up/Down Master Volume Status LEDs Mute Back Mute Power Supply Audio In 5V DC (1A) Cinch RCA IMPORTANT: The remote is used to con- trol the transmitter, as well as the indivi-...
- Page 5 Installation guide WiFi speakers CONO canto WiFi: Clip the CONO canto WiFi speaker into the 3 phase lighting track. If you hear a “plop” from the speaker and the Led is flashing, you are on the correct phase and the speaker is connected to power. If not, turn the phase switch till you hear the “plop”...
- Page 6 +/- buttons (note that the "master volume" in the store is controlled by your audio device or by the WiFi transmitter.). ===================================================================================== Customer support: NewTec Design Audio GmbH www.newtec-audio.com Via Negrelli 13/C Tel. +39 0471 058065 39100 Bolzano – ITALY...
- Page 7 Bitte überprüfen Sie, ob sichtbare Transportschäden vorliegen. In diesem Fall neh- men Sie das System nicht in Betrieb und setzen sich mit Ihrem Lieferanten in Verbindung. Hinweise zur Stromverbindung der verschiedenen Modelle CONO canto WiFi CONO pendo WiFi WiFi Subwoofer SUB quadro WiFi Drehen Sie am Phasenrad bis Sie das “Plop-Geräusch hören und...
- Page 8 NEWTEC TRANSMITTER NEWTEC FERNBEDIENUNG Transmitter Lautsprecher Vorderseite Status-LED Status-LED Restart Connect Start Pairing Factory Settings End Pairing SMA-RP IR-Empfänger Antenne Volume Up/Down Master Volume Status LEDS Hinterseite Mute Netzgerät Audio In 5V DC (1A) Cinch RCA WICHTIG: Die Fernbedienung dient zur Steuerung des Transmitters, sowie der einzelnen Lautsprecher.
- Page 9 Installationsablauf WiFi Modelle CONO canto WiFi: Hängen Sie den CONO canto Wifi in die 3 Phasen Stromschiene ein. Wenn Sie ein “Plop-Geräusch” vom Lautsprecher hören und die LED blinkt, sind Sie auf der richtigen Phase und der Lautsprecher hat Strom. Falls nicht, drehen Sie am Phasenrad (siehe erste Seite) bis Sie das “Plop-Geräusch”...
- Page 10 Subwoofers und drücken die Vol +/- Tasten (Beachten Sie, dass die “Master-Lautstärke” im Store durch Ihr Audiogerät geregelt wird oder durch den WiFi Sender.). =============================================================================== Kundenservice: NewTec Design Audio GmbH www.newtec-audio.com Via Negrelli 13/C Tel. +39 0471 058065 39100 Bozen – ITALIEN...
- Page 11 Controllare se sono presenti danni causati dal trasporto. In tal caso, non mettere in funzione il sistema e contattare il proprio fornitore. Indicazioni per il collegamento elettrico dei vari modelli CONO canto WiFi CONO pendo WiFi WiFi Subwoofer Ruotare la rotella delle fasi, finché...
- Page 12 TRASMETTITORE NEWTEC TELECOMANDO NEWTEC Trasmettitore Altoparlante Fronte Status-LED Status-LED Restart Connect Start Pairing Factory Settings End Pairing SMA-RP Ricevitore IR Antenna Volume Up/Down Master Volume Status LEDS Retro Mute Alimentatore Audio In 5V DC (1A) Cinch RCA IMPORTANTE: Il telecomando si utilizza per comandare sia il trasmettitore che gli altoparlanti.
- Page 13 Procedura per l'installazione dei modelli WiFi CONO canto WiFi: Agganciare il CONO canto WiFi al binario elettrificato trifa- se. Quando si sente un suono "plop" e il LED lampeggia, la fase è giusta e l'alto- parlante è alimentato. In caso contrario, ruotare la rotella delle fasi (vedi prima pagina), finché...
- Page 14 Puntare con il telecomando verso il tubo reflex del subwoofer e premere il tasto Vol +/-. (NB: Il “Volume Master” del negozio viene regolato tramite il dispositivo audio o via del trasmettitore WiFi). ================================================================================= Servizio clienti: NewTec Design Audio GmbH www.newtec-audio.com Via Negrelli 13/C Tel. +39 0471 058065 39100 Bolzano – ITALIA...
