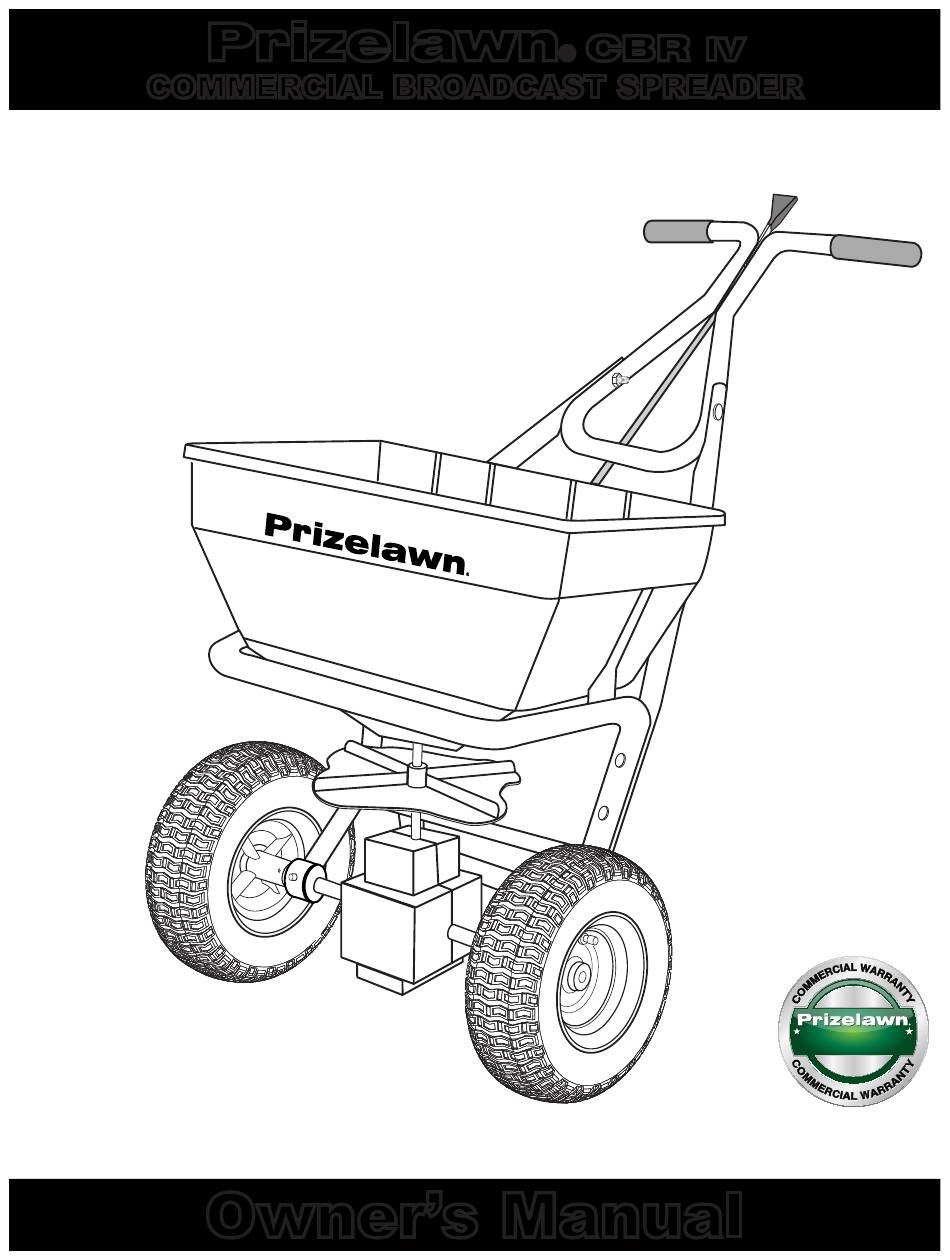

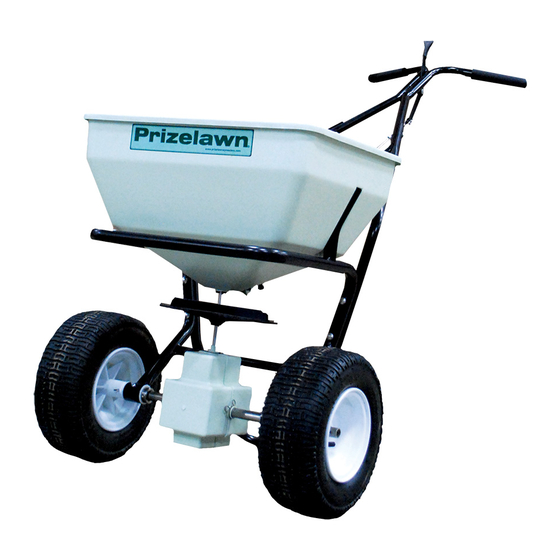

- Page 1 Prizelawn ® COMMERCIAL BROADCAST SPREADER Model Model IVSS 1 YEAR 1 YEAR Part# P15525 6-11-18 Owner’s Manual...
- Page 2 ASSEMBLY INSTRUCTIONS 1/8 Dia. x Remove the spreader and components from carton and 1 1/4” Cotter Pin 3/16 Dia. x place hopper up-side down on a padded surface as shown. 2” Cotter Pin Slide drive and free wheel onto axle as shown with the longer portion of wheel hub facing the frame.
-
Page 3: Operation
ASSEMBLY INSTRUCTIONS Handle Lever 1/4 Dia. Clevis Pin Install control tube to handle lever with (1) 3/32” Dia. 1/4 dia. clevis pin and a 3/32” dia. cotter pin. Cotter Pin Slip opposite end of control tube over lower control rod making sure shutoff plate is between Control Tube the lower rod and the control tube. - Page 4 PATTERN ADJUSTMENT Discharge Discharge Chute Normal spreading of materials requires no Chute Settings adjustment (factory setting “A”) unless stated on the package. In those cases where the spread pattern has shifted, the pattern can be adjusted left and right by loosening the two knobs on the Knob Knob discharge chute and moving the chute closer or...
-
Page 5: Application Rate
Weigh 15 to 20lbs. of material and spread over the 100 sq. ft. area. Weigh remaining material left in hopper and adjust rate setting as required. Repeat test until application rate is correct. RATE SETTING CONVERSION The following provides approximate Prizelawn settings for those units /CBR IVSS ®... -
Page 6: Calibration Instructions
Purchaser. Except for loss or damage caused by PRIZELAWN's negligence, Purchaser relieves PRIZELAWN of responsibility for all risks of loss or damage to the Product and its parts during the period the products are in transit to and from PRIZELAWN. - Page 7 PARTS LIST for CBR & IVSS ® Description CBR IV CBR IVSS Description CBR IV CBR IVSS Hopper Assembly P15519 Impeller Shaft Bearing P14312-1 Hopper* P14604-09 Drive & Free Wheel P790120W Impeller Shaft P15641 Discharge Chute & Shut-Off 2 & 4...
-
Page 8: Maintenance
MAINTENANCE Never store material in spreader. Return unused product to its original container. AXLE COLLAR Wash spreader thoroughly after each use and dry completely in the sun or heated area. GREASE GREASE Grease axle bearings on the frame. Oil the impeller shaft bearing in hopper, pivot points on the shut-off linkage and the spring in the housing under the rate plate. - Page 9 OPTIONAL SIDE DEFLECTOR KIT #P15681 ASSEMBLY INSTRUCTIONS Remove components from carton. Insert either end if the spring into the hole in the frame bracket as FRAME BRACKET shown. Needle nose pliers are recommended to ease installation. SPRING REMOVE PLASTIC PLUGS IN FRAME 2.
- Page 10 OPERATION The deflector can be placed in two positions. The ON position (down) or the OFF position (up). To operate, simply rotate the deflector plate downward to the ON position using the kick plate. The spring will automatically Handle pull the plate down and hold it. Reverse the Lever procedure to position the deflector plate in the OFF position (up).
