Summary of Contents for YELLOWRIVER YR-80

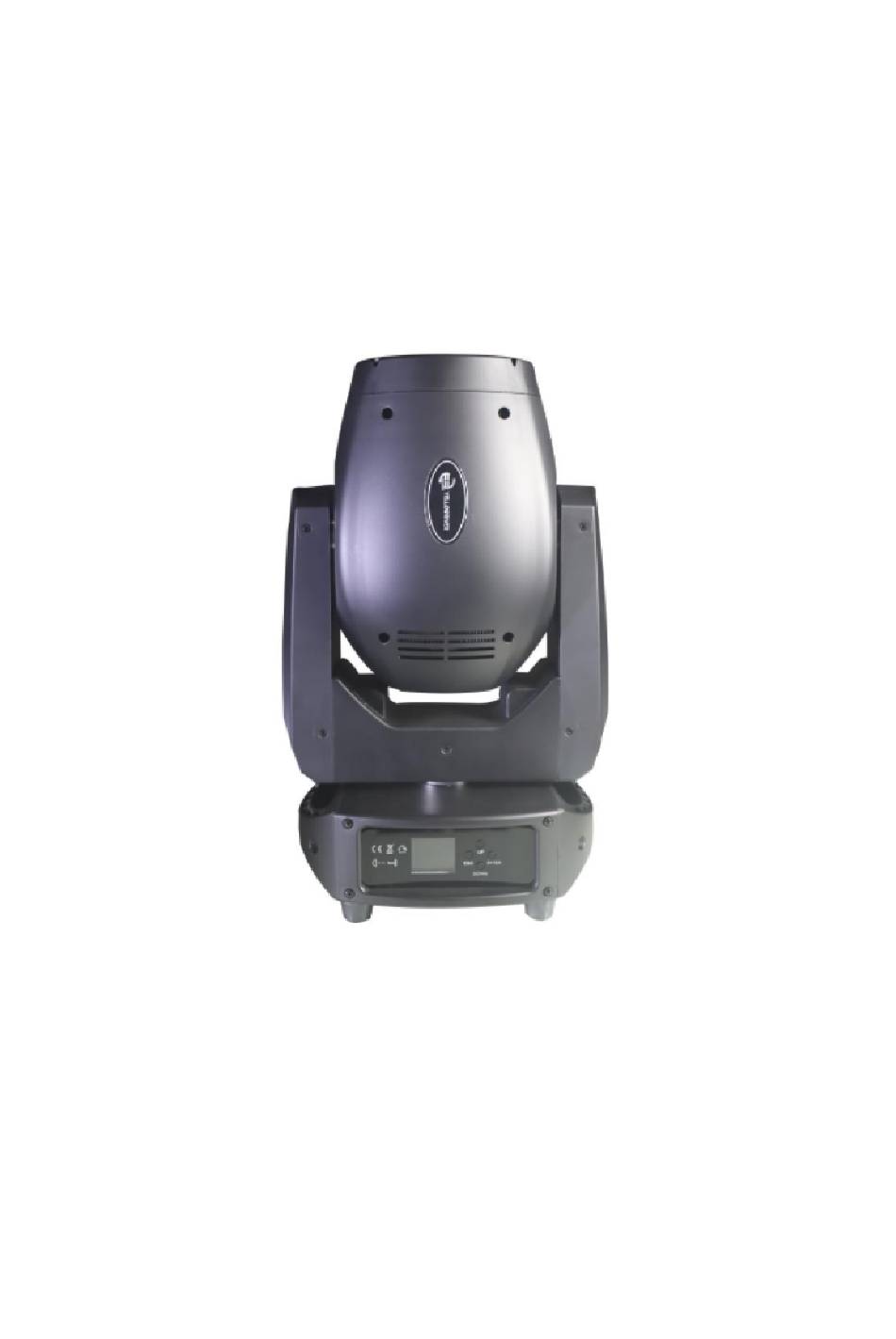

- Page 1 GUANGDONG YA GE LAI LIGHTING & AUDIO LIMITED 80W LED Moving Head Model：YR-80 User manual Please read this instruction...
- Page 2 carefully before using this product...
- Page 3 User manual 1.Notes: Any damage caused by disregard of this manual does not belong to the scope of warranty, and the manufacturer shall not bear any responsibility for all consequences and problems arising therefrom. Please note that the damage caused by violation of operating procedures does not belong to the scope of warranty.
-
Page 4: Effect Parameters
1.4 -inch LCD color screen, can set the channel mode (standard model, extended mode), horizontal vertical inversion, screen reversible, signal hint, switchable in both Chinese and English, automatic screen turn off / long last for display power on, display the channel number, source temperature, fan speed, record the power on time, power on times, fault prosecution, manual control channel data memory, the software version information, restore factory Settings,... -
Page 5: Safety Parameters
Power: 230 Safety parameters: Safety protection: automatically cut off the power when the body overheats or the system fails Working temperature: under 40 ℃ Light parameters: Display: touch screen +4 buttons Power interface: one in one out powercon Signal interface: 3 pin + network port or 3 pin +5 pin Waterproof grade: IP20 Net weight: 11.4 KG Size:296*231*298 mm... - Page 6 2. MENU ： Main content SECOND THIRD DMX Address 1-512 Dmx Mode STD/EXT Run Mode DMX/Host Fixture Pan Invert Close/Open Tilt Invert Close/Open 0 - 255 Pan Fine 0 - 255 Tilt 0 - 255 Manual control Tilt Fine 0 - 255 ⁞...
-
Page 7: Dmx512 Channels
Password 0 - 255 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Color 0 - 255 Factory setting Fixed Gobo 0 - 255 Colorful 0 - 255 Frost 0 - 255 Prism1 0 - 255 Prism2 0 - 255 Zoom 0 - 255 All Reset... - Page 8 0 － 255 Tilt fine 0 － 255 Pan and tilt speed Strobe Shut down 4-103 Strobe from slow to fast 104-107 Light on Pulse strobe from slow to 108-207 fast 208-212 Light on 213-225 Random slow strobe Random medium speed 226-238 strobe 239-251...
- Page 9 30-34 Color 3 35-39 Color 3+color 4 40-44 Color 4 45-49 Color 4+Color 5 50-54 Color 5 55-59 Color 5+Color 6 60-64 Color 6 65-69 Color 6+Color 7 70-74 Color 7 75-79 Color 7+Color 8 80-84 Color 8 85-89 Color 8+Color 9 90-94 Color 9 95-99...
- Page 10 200-205 Flow stop 206-255 Flow from slow to fast 0-255 Color plate fine-tuning Fixed gobo White 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-79 Gobo 7 80-89 Gobo 8 90-99 Gobo 9 100-109...
- Page 11 168-175 Gobo 7 shaking (from slow to fast) 176-183 Gobo 8 shaking(from slow to fast) 184-191 Gobo 9 shaking (from slow to fast) Gobo 10 shaking (from slow to 192-199 fast) Gobo 11 shaking (from slow to 200-207 fast) 208-230 Gobo flow (from fast to slow) 231-232 Flow stop...
- Page 12 127 － 128 Flow stop Counterclockwise flow from slow to 129 － 191 fast Bi-direction rotation (from slow to 192 － 255 fast) Prism 2 0 － 127 empty 128-255 Prism 2 open Prism 2 Rotate 0 － 63 Prism 2 linear orientation 64 －...
- Page 13 slave unit are controlled by master unit, and its function is synchronized with the current function of the master units 5. Instructions and remarks Warning, danger of electric shock The light source inside this lamp should be replaced by the company or our service agent or a person with similar qualifications.
-
Page 14: Installation Requirement
indicated by the light source. After the service time is reached, please change the light source in time before use. 6. Installation requirement 1. The product shall be free from corrosive vapors and gases in the operating environment and shall not contain inflammable and explosive articles. - Page 15 The company reserves the right to amend this product manual without prior notice.
