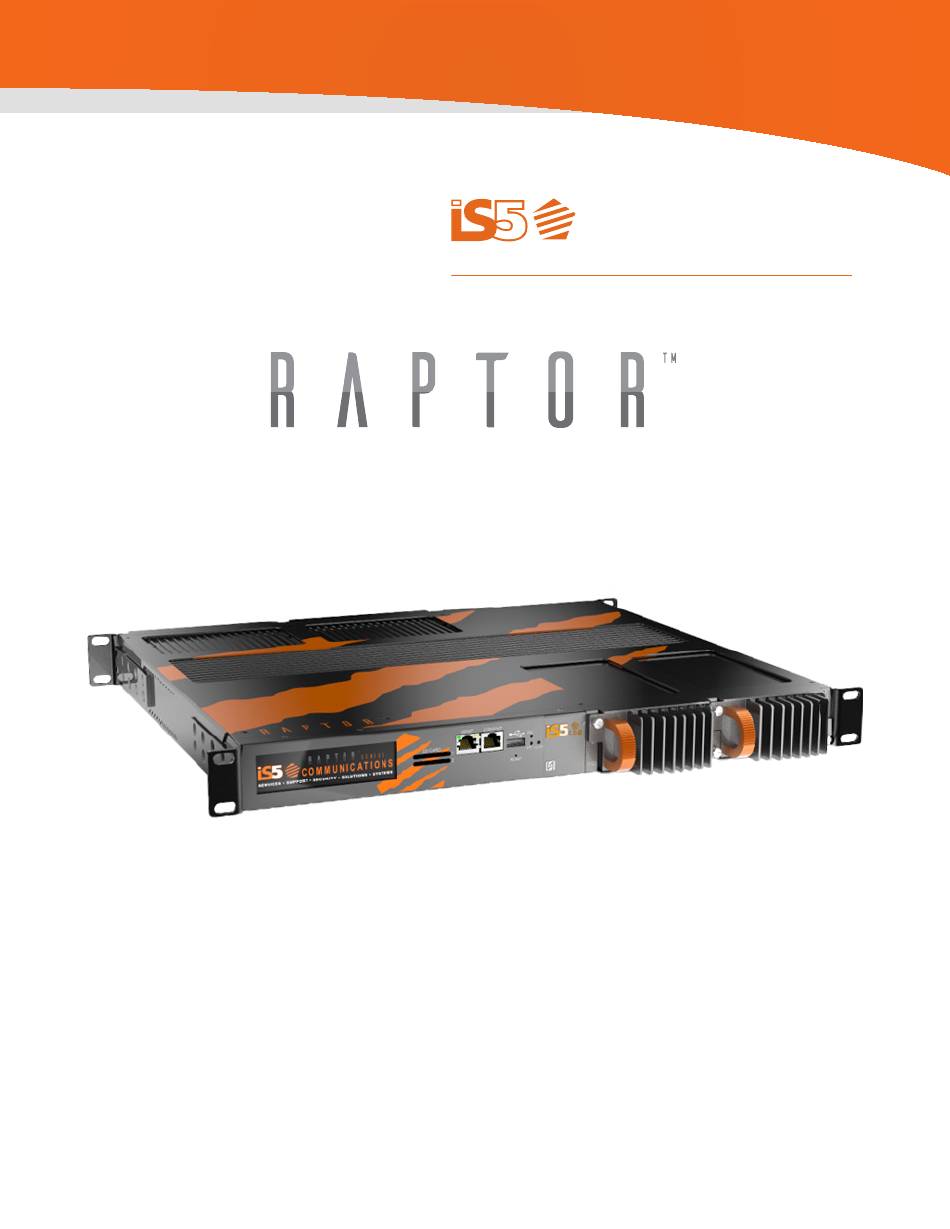

- Page 1 C O M M U N I C A T I O N S SERVICES • SUPPORT • SECURITY • SOLUTIONS • SYSTEMS SERIES Installation Guide Rev 1, Mar 13, 2019...
- Page 2 C O M M U N I C A T I O N S SERVICES • SUPPORT • SECURITY • SOLUTIONS • SYSTEMS For more information, visit iS5com.com 905.670.0004 | 289.401.5206 | info@iS5com.com toll free: +1.844.520.0588 | technical support: +1.844-475-8324...
- Page 3 COPYRIGHT NOTICE © 2019 iS5 Communications Inc. All rights reserved. No part of this publication may be reproduced in any form without the prior written consent of iS5 Communications Inc. (iS5). TRADEMARKS iS5Com is a registered trademark of iS5. All other trademarks belong to their respective owners.
-
Page 4: Table Of Contents
| Table of Contents CONTENTS INTRODUCTION ........1 CHASSIS VIEWS . - Page 5 GROUNDING ..........10 FAULT RELAY .
-
Page 6: Introduction
INSTALLATION GUIDE Introduction RAPTOR™ is an Intelligent Cyber Secure Platform running the iBiome OS. The iBiome is an all-encompassing operating system that supports switching and routing on a single platform. RAPTOR™ has been designed for future scalability. Its modular system of field replaceable modules, hot-swappable power supplies, and its ability to run third party software applications makes it a very flexible platform for today and the future. -
Page 7: Chassis Views
Chassis Views Chassis Views This section contains views of the front and back panels of the RAPTOR™ showing locations of the power modules, interface module slots, status indicators, and chassis identification labels. Raptor™ supports the following slot types: Slot #1- 3 supports up to 8 x 10/100/1000 RJ45’s, or 8 x 100/1000 SFP’s, or 4 x 100/1000 SC/ST’s per slot Slot #4 supports up to 4 x 10GB Base-X or 4 x 1 GB Base-X Uplinks 2.1 Front Panel 1. -
Page 8: Back Panel
INSTALLATION GUIDE 2.2 Back Panel Renderings for all line modules that are supported in the Raptor™ unit are shown below. For more information for the line modules, refer to their datasheets or the is5Com catalogue. Line Modules 3.1 iRM-8GSFP 8 x100/1000Base-X SFP Module 3.2 iRM-8GRJ45 8 x 10/100/1000 Base -T(X) RJ45 Module (non PoE) IM-Raptor-1.0-EN... -
Page 9: Irm-8Pgrj45
Line Modules 3.3 iRM-8PGRJ45 8 x 10/100/1000 Base -T(X) RJ45 Module with PoE 3.4 iRM-FFS Fiber Optic Module 3.5 iRM-CM Computing Module IEC 61850-3 and IEEE 1613 Compliant IM-Raptor-1.0-EN... -
Page 10: Irm-4Tgsfp
INSTALLATION GUIDE 3.6 iRM-4TGSFP 4 x 1G/10GBase-X SFP is to be used only in Slot 4. 3.7 iRM-PS-XX Hot Swappable Modular Power Supply IM-Raptor-1.0-EN... -
Page 11: Mounting Raptor
Mounting Raptor™ Mounting Raptor™ RAPTOR™ is designed for maximum mounting and display flexibility. It can be equipped with connectors that allow installation in a 48 cm (19 in) rack. 4.1 Before Rack Installation Ensure that you understand how to prevent electrostatic discharge (ESD) damage. ♦... -
Page 12: Mounting Raptor™ On A Rack
INSTALLATION GUIDE 4.3 Mounting Raptor™ on a Rack To secure the device to a standard 48 cm (19 in) rack, perform the following: 1. Raptor™ unit 2. Mounting bracket 3. Mounting screws (quantity of 4) Step 1: Install left and right front mounting brackets to RAPTOR™ using 4 x M 4 x 0.7 screws on each side (screws will be provided with the switch). -
Page 13: Modules Installation
Modules Installation Modules Installation 5.1 Power Supply Modules The RAPTOR™ supports two hot-swappable power supply modules (iRM-PS-XX). The use of two power supply modules is recommended for providing redundancy and load balancing. Equipment must be installed according to applicable local wiring codes and standards. 1. -
Page 14: Line Modules
INSTALLATION GUIDE 5.2 Line Modules Check the Ordering Information for line modules to be installed. 1. Raptor™ unit 2. Line Modules 3. Thumb Screws- M4 x 0.7 4. Deposition sections Step 1: Insert all line modules in their appropriate deposition sections as per the Ordering Information. Step 2: Check and insert in the correct position in the upper or lower slots. -
Page 15: Wiring
10 | Wiring Wiring 6.1 Power Inputs Raptor™ supports dual redundant, hot swappable power supplies—Power Supply 1 (PWR1) and Power Supply 2 (PWR2). The connections for PWR1 and PWR2 are located on the terminal block. The diagram below shows also connections for External PoE (Power over Ethernet). Note: L—stands for Live or Positive;... -
Page 16: Fault Relay
| 11 INSTALLATION GUIDE 6.3 Fault Relay The relay contact of the terminal block connector is used to detect user-configured events. The switch provides fail open and fail close contacts to form relay circuits based on requirements. If the device is not powered, or if an active alarm is present, the relay de-energizes, therefore initiating the NO and NC states. -
Page 17: Connection
12 | Connection Connection 8.1 Cables The Raptor™ comes with standard Ethernet ports. According to the link type, the switch uses CAT 3, 4, 5, and 5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or hubs). For cable specifications, refer to the following table. - Page 18 | 13 INSTALLATION GUIDE The Raptor™ supports auto MDI/MDI-X operation. Use a cable to connect the switch to a PC. The tables below show the 10BASE-T/ 100BASE-T(X) MDI and MDI-X and 1000 Base-T MDI/MDI-X pin assignments. 10/100 Base-T(X) MDI/MDI-X pin assignments is as follows: PIN NUMBER MDI PORT MDI-X PORT...
-
Page 19: Sfp
14 | DIMENSION DRAWING 8.2 SFP The Raptor™ comes with fiber optic ports that can connect to other devices using SFP (Small Form-factor Plug- gable) modules. The fiber optical ports are Multimode or Singlemode with LC connectors. Always connect the TX port of Switch A to the RX port of Switch B. DIMENSION DRAWING IM-Raptor-1.0-EN...
