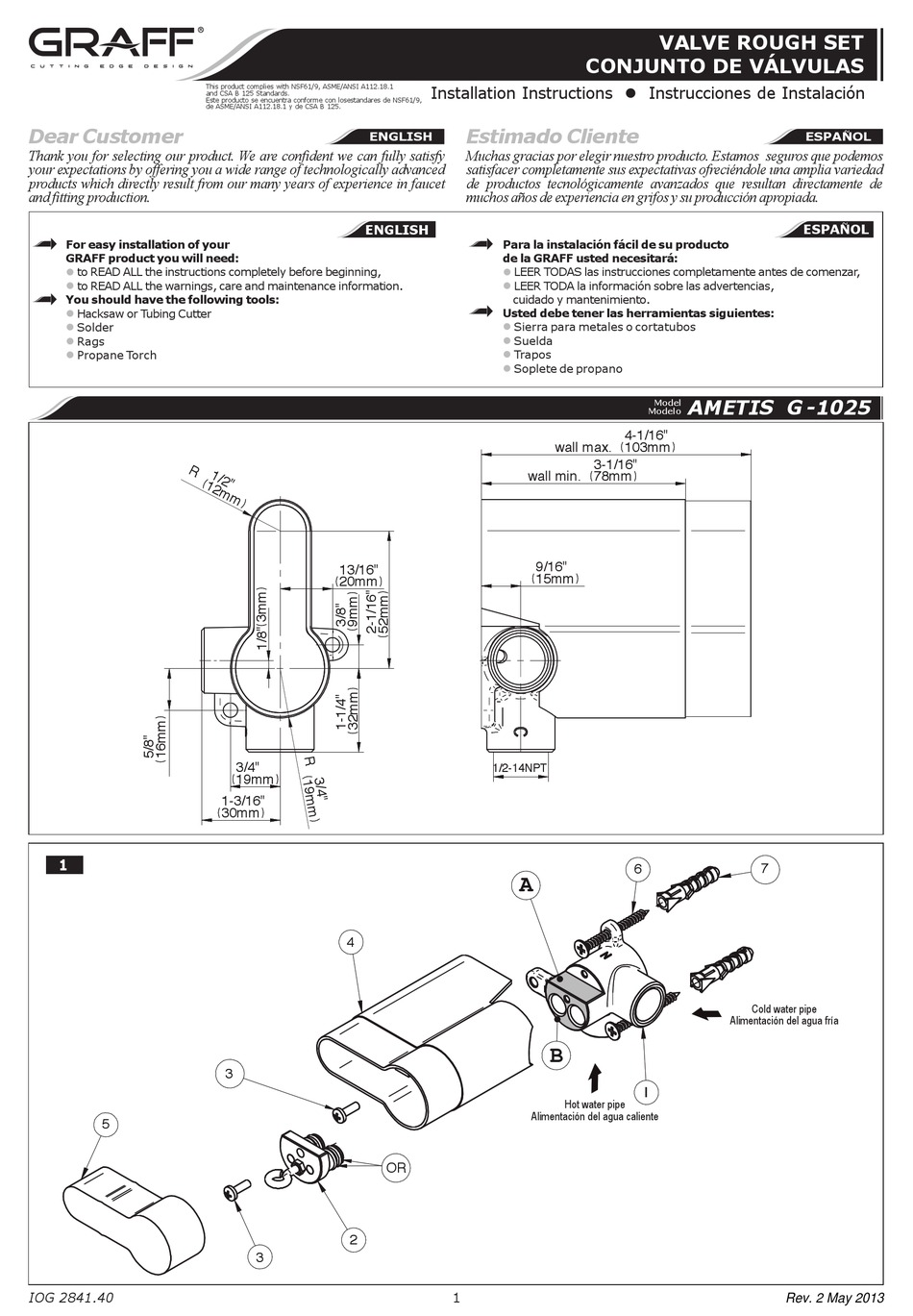

Graff AMETIS G-1025 Installation Instructions

Valve rough set

Advertisement

Dear Customer
Thank you for selecting our product. We are confident we can fully satisfy
your expectations by offering you a wide range of technologically advanced
products which directly result from our many years of experience in faucet
and fitting production.
For easy installation of your
GRAFF product you will need:
to READ ALL the instructions completely before beginning,
to READ ALL the warnings, care and maintenance information.
You should have the following tools:
Hacksaw or Tubing Cutter
Solder
Rags
Propane Torch
1
5
IOG 2841.40
This product complies with NSF61/9, ASME/ANSI A112.18.1
and CSA B 125 Standards.
Este
producto
se encuentra conforme con losestandares de NSF61/9,
de ASME/ANSI A112.18.1 y de CSA B 125.
ENGLISH
ENGLISH
13/16"
20mm
3/4"
19mm
1-3/16"
30mm
4
3
2
3
Installation Instructions  Instrucciones de Instalación
Estimado Cliente
Muchas gracias por elegir nuestro producto. Estamos seguros que podemos
satisfacer completamente sus expectativas ofreciéndole una amplia variedad
de productos tecnológicamente avanzados que resultan directamente de
muchos años de experiencia en grifos y su producción apropiada.
Para la instalación fácil de su producto
de la GRAFF usted necesitará:
LEER TODAS las instrucciones completamente antes de comenzar,
LEER TODA la información sobre las advertencias,
cuidado y mantenimiento.
Usted debe tener las herramientas siguientes:
Sierra para metales o cortatubos
Suelda
Trapos
Soplete de propano
wall max.
wall min.
9/16"
15mm
1/2-14NPT
A
A
B
Alimentación del agua caliente
OR
1

VALVE ROUGH SET

CONJUNTO DE VÁLVULAS
AMETIS- - - - - - G- - 1025
Model
Modelo
4-1/16"
103mm
3-1/16"
78mm
6
Alimentación del agua fría
I
Hot water pipe
~
ESPANOL
~
ESPANOL
-
7
Cold water pipe
Rev. 2 May 2013
