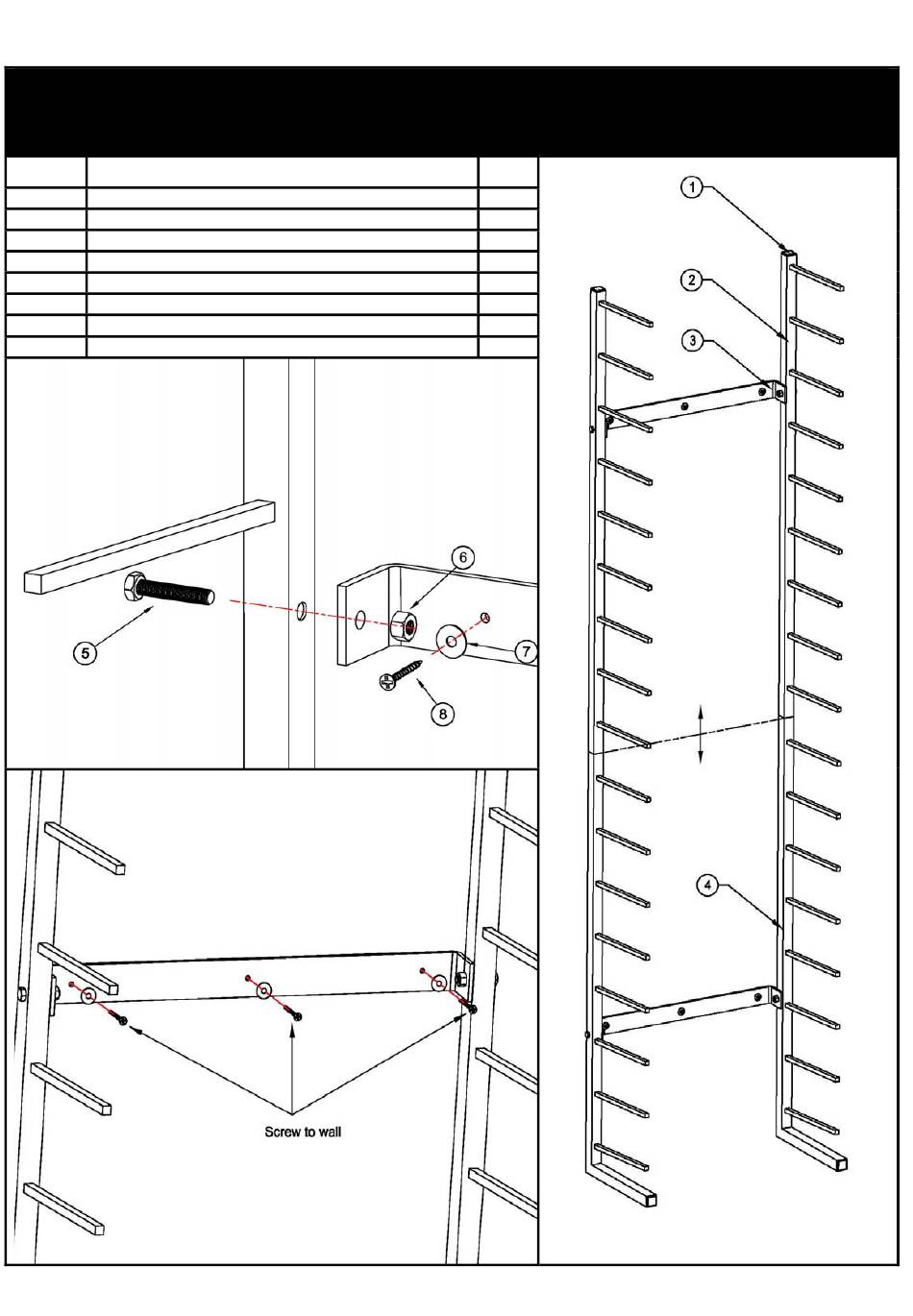

Vis-i-Rack VR864/VR165 High Capacity Roll Storage Rack Installation Instructions Part# Description End Cap Upper tube rails with rungs Wall Braces Lower tube rails with feet and rungs Bolt Hex Nuts Flat Washers Long Drywall Screw Tools required for assembly: Phillips screwdriver...
Page 2
Vis-i-Rack VR864/VR165 High Capacity Roll Storage Rack Installation Instructions Attach wall braces (part 3) to lower tube rails with feet (part 4) using bolts (part 5) with hex nuts (part 6). 2) Attach wall brace (part 3) to upper tube rails (part 2) using bolts (part 5) with hex nuts (part 6).
Page 3
Vis-i-Rack VR864/VR165 High Capacity Roll Storage Rack Installation Instructions 3) Slide upper tube rails into lower tube rails with feet. Locate wall studs and attach rack to wall using six (part 8) screws. If you cannot locate wall studs we suggest you attach the rack to a solid wall surface.
